21
43
M6×16 (×6)
Mixing Blade
Leather Washer
M8×16 (×2)

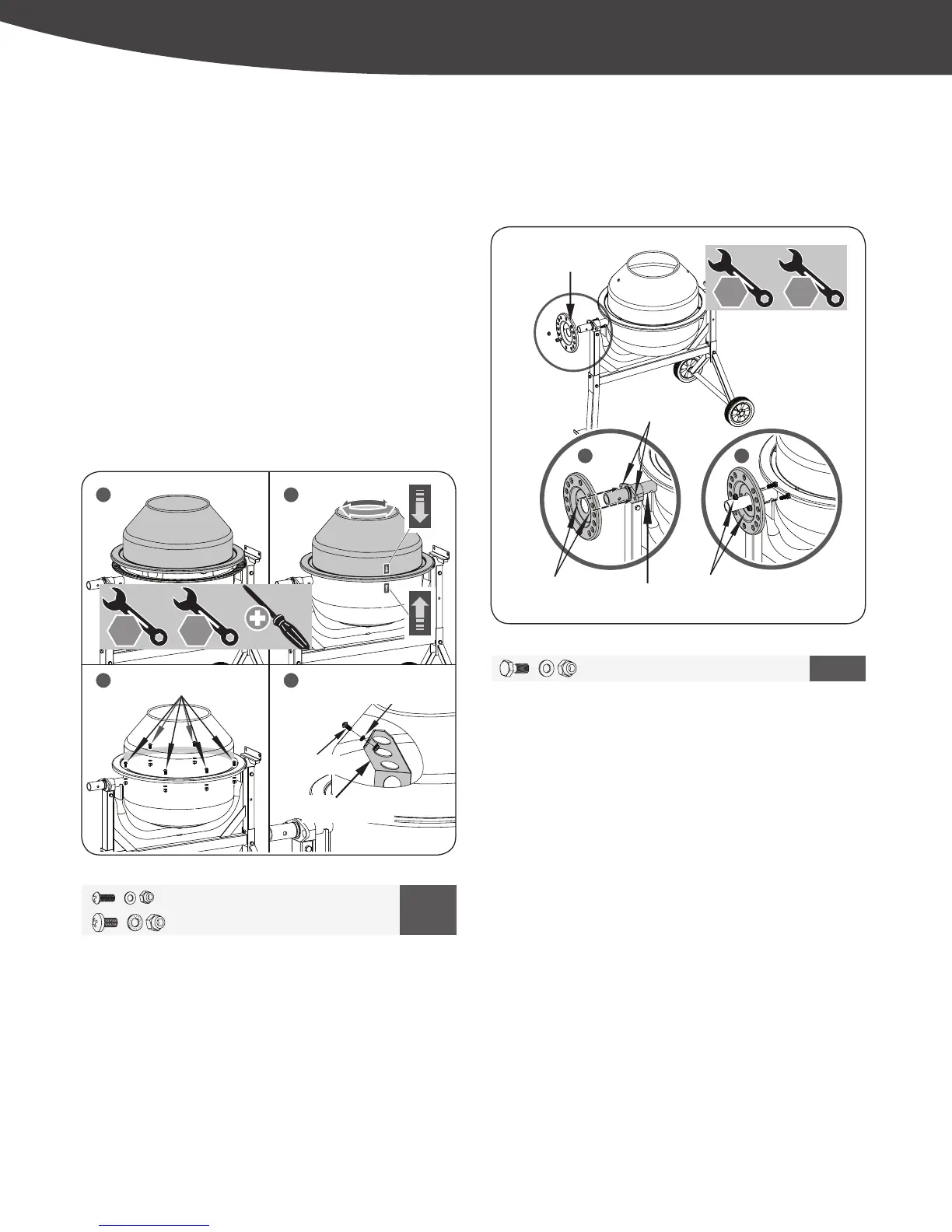

1. Place the upper drum onto the bottom drum by aligning both
the mounting holes, and the labeled arrows. (See Figure 4,
Illustration 1 & 2)
2. Insert a M6×16 cross headed screw into each mounting holes
in the rim. Secure each screw from below with a lock washer
and nut. Make sure the tightening process is carried out
progressively. (See Figure 4, Illustration 3)
3. Secure the mixing blades to the upper drum by inserting two
M8×16 cross headed screws, from the outside through the
holes in the drum.
4. A leather washer should be positioned inside between the
drum and blade. Secure the mixing blade on the inside using a
nut. (See Figure 4, Illustration 4)
5. Finally, ensure top and bottom mixing blade mountings are
tight.
1. Slide the locking plate over the large diameter shaft (at the
“leg side” of the frame) with the rim facing inwards as shown.
Insert two M8×25 bolts into the mounting holes, and secure
each with a nut and at washer. (See Figure 5a)
Figure 4
Figure 5a
UPPER DRUM TIPPING BAR
M6 × 16 × 6
6
M8 × 16 × 2
M8 × 25 × 2
7
17
mm
13
mm
Locking Plate
1 2
Mounting Hole (×2)
Mounting Hole (×2)
Shaft
M8×25 (×2)
10
mm
17
mm
13
mm
16
mm
14
mm
18
mm
19
mm
30
mm
32
mm
9
|
Assembly
74005US25M100.indd 9 2017/3/14 11:12:21
