YARDMAX YM0046 User Manual

1
Bottom Drum
2
M8×20 (×2)
Leather Washer

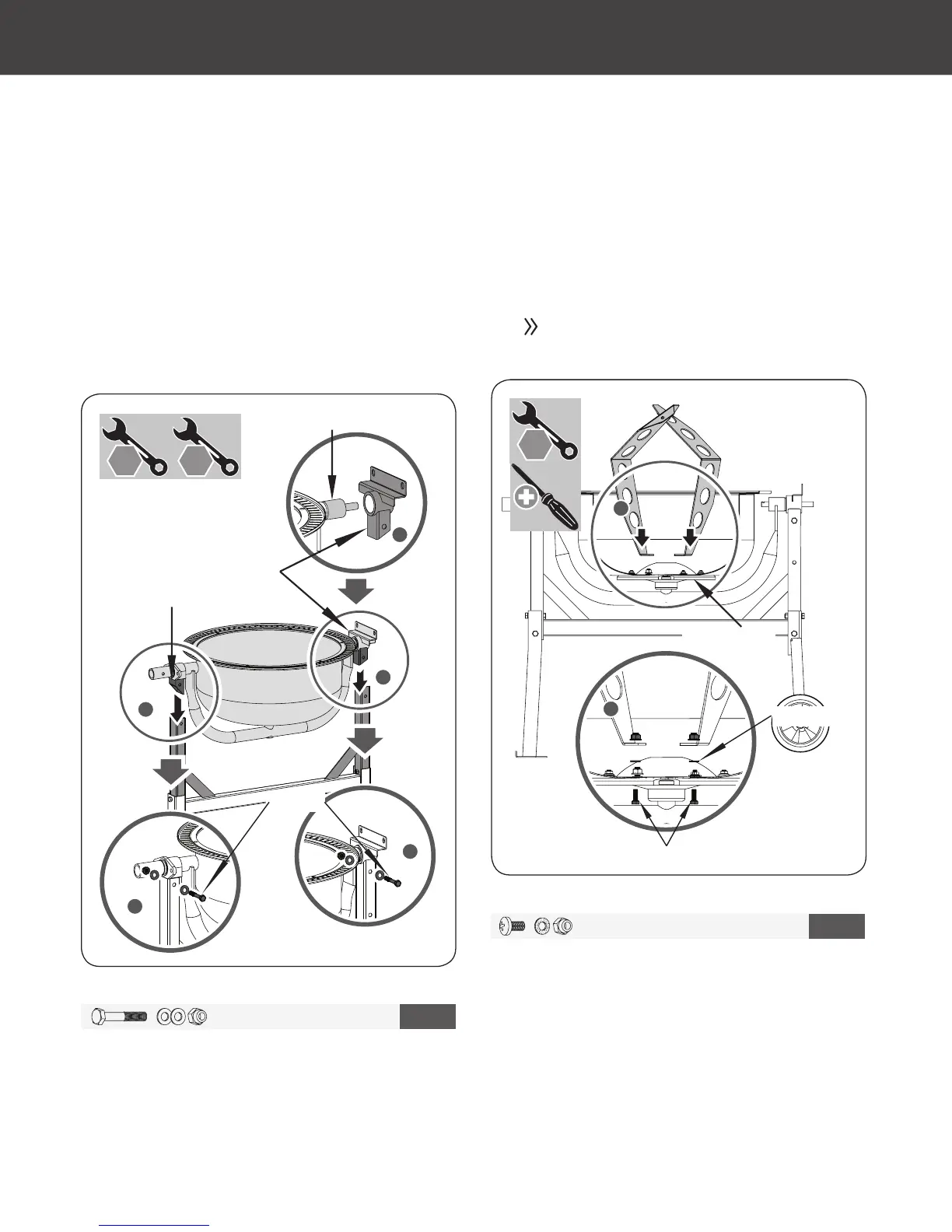

1. Slide the motor support bracket on the shaft. (See Figure 2,
illustration 1)
2. Carefully place the bottom drum with support arm onto the
side supports of the stand as shown. (See Figure 2, Illustration
2). The motor support bracket and support seat should slide
into the side support channel on each side. The larger diameter
shaft should be at the leg end of the stand.
3. On each side, line up the holes in the side support with those
in the the motor support bracket and support seat, insert a
M8×55 hex bolt from one side, then a at washer, lock washer
and nut from the other side. Tighten with a wrench. (See Figure
2, illustration 3)
Figure 2
Figure 3
Note the arrow labels on your mixer – one on the top
drum and one on the bottom. If you have difculty in
correctly positioning the mixing blades, temporarily
mount the upper drum on the top of the bottom drum,
and rotate the top so the two arrows align.
Mount the mixing blades inside the bottom drum loosely as shown
(See Figure 3, Illustration 1) Two holes are provided at the base of
the drum into which a M8×20 screw may be inserted from the
outside. A leather washer and a nut should be threaded on loosely
on the inside. The leather washer should be placed under the
blade down against the drum. (See Figure 3, Illustration 2)
MIXING BLADESBOTTOM DRUM
17 mm
13 mm
M8 × 55 × 2
4
M8 × 20 × 2
5
1
Shaft
3
3
Motor Support Bracket
2
2
Support Seat
M8×55 (×2)
17 mm
13 mm
16 mm
14 mm
18 mm
19 mm
30 mm
32 mm
8
Electric Concrete Mixer
»
Operator’s Manual
Assembly
|
74005US25M100.indd 8 2017/3/14 11:12:20
