1. Slide the motor support bracket on the shaft. Hold it in place
with Ø42 spiral ring. (See Figure 2, illustration 1)
2. Carefully place the bottom drum with support arm onto the
side supports of the stand as shown. (See Figure 2, Illustration
2). The motor support bracket and support seat should slide
into the side support channel on each side. The larger diameter
shaft should be at the leg end of the stand.
3. On each side, line up the holes in the side support with those in
the bearing block and insert a M8×65 hex bolt from one side,
then a at washer, lock washer and nut from the other side.
Tighten with a wrench. (See Figure 2, illustration 2-3)

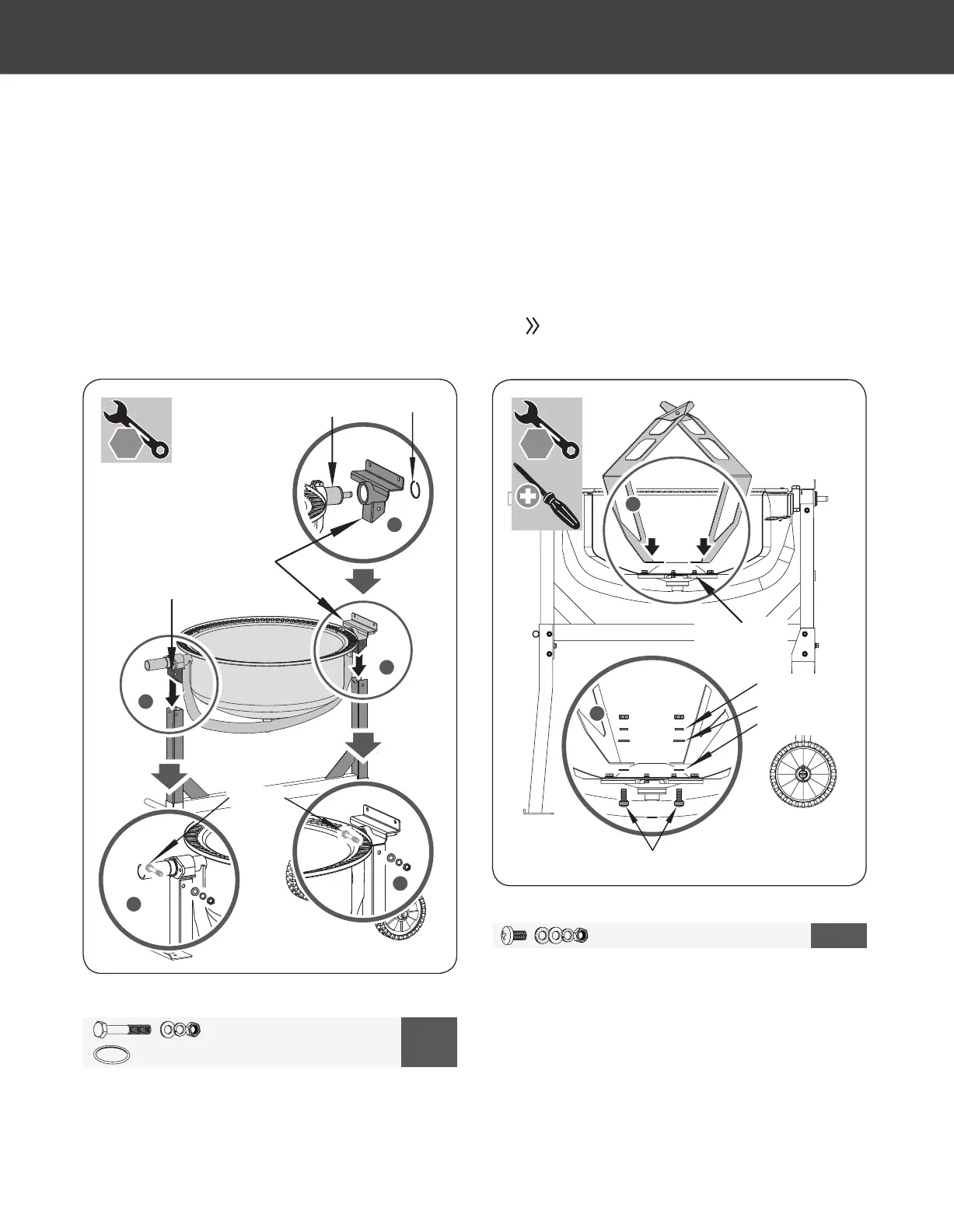

Figure 2
Figure 3
Note the arrow labels on your mixer – one on the top
drum and one on the bottom. If you have difculty in
correctly positioning the mixing blades, temporarily
mount the upper drum on the top of the bottom drum,
and rotate the top so the two arrows align.
2
3
2
3
1
Spiral Ring
Motor Support Bracket
Support Seat
Shaft
M8×65 (×2)
1
Bottom Drum
2
M8×25 (×2)
Lock Washer
Leather Washer
Flat Washer
Mount the mixing blades inside the bottom drum loosely as
shown (See Figure 3, Illustration 1) Two holes are provided at the
base of the drum into which a M8×20 screw may be inserted from
the outside. A leather washer, at washer, lock washer and a nut
should be threaded on loosely on the inside. The leather washer
should be placed under the blade down against the drum. (See
Figure 3, Illustration 2)
MIXING BLADESBOTTOM DRUM
17 mm
13 mm
17 mm
13 mm
× 2
M8 × 65 × 2
4
Ø 42 × 1
M8 × 20 × 2
5
8
Electric Concrete Mixer
»
Operator’s Manual
Assembly
|
