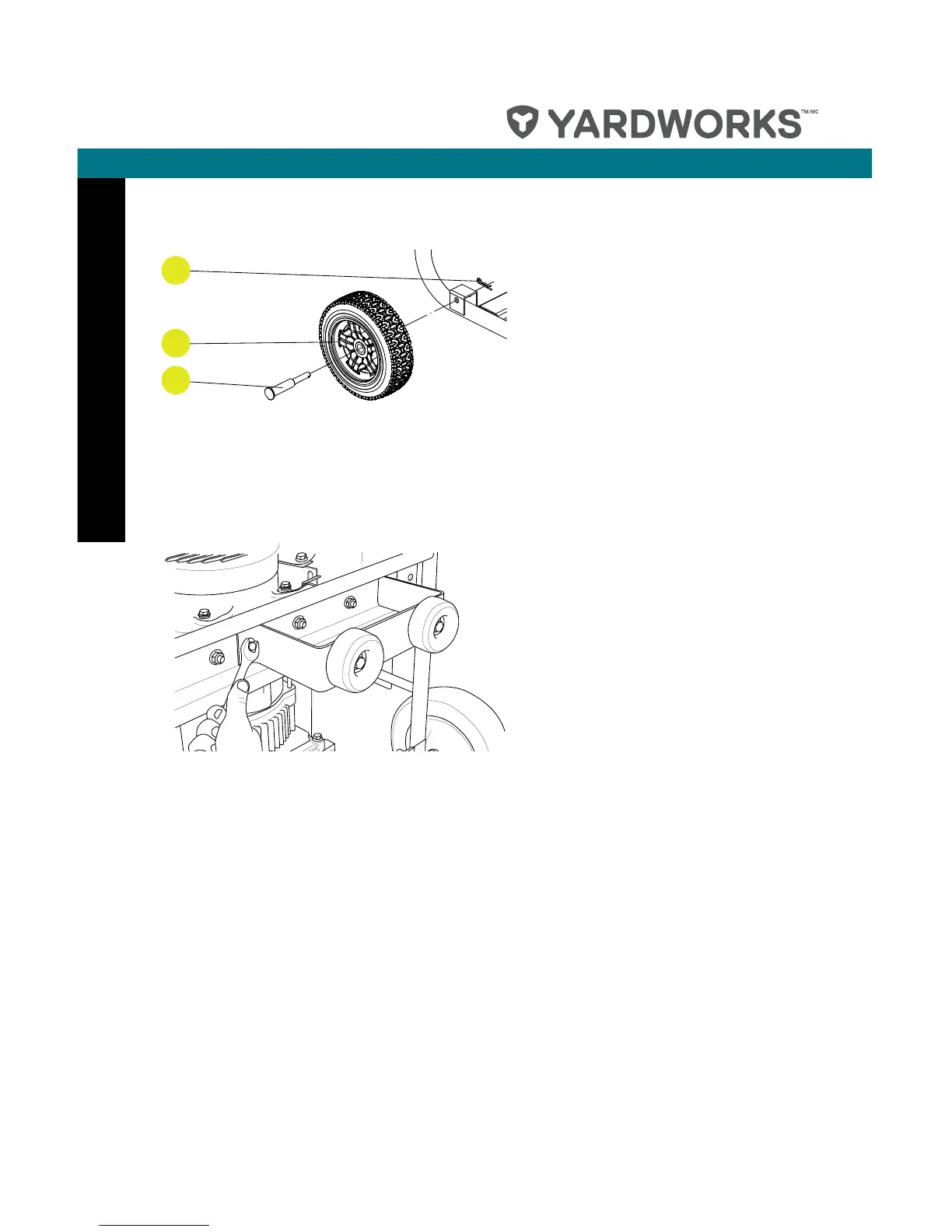

INSTALL THE WHEEL KIT
1. Before adding fuel and oil, tip the
generator on its side.
2. Slide the wheel pin roll (#65) through
the wheel (#64) from the outside.
3. Slide the pin roll through the mount
point on the frame.
4. Secure the R-Pin (#63).
5. Repeat steps 2–4 to attach the
second wheel.
INSTALL THE SUPPORT LEG
1. Attach the support leg to the
generator frame with flange bolts
(M8 x 16) and flange lock nuts (M8).
2. Tip the generator slowly so that it
rests on the wheels and support leg.
CONNECT THE BATTERY
1. Remove the protective cover from
the red (+) lead on the battery.
2. Attach the red (+) lead to the red (+)
terminal on the battery with the cap
screw and secure with the nut.
3. Repeat steps 1-2 for the black (–)
battery lead.
64
63
65
Assembly
