16
®
/MD
4. Pull the operator presence control bar down to the
upper handle.
5. Ensure that rear door covers any gap between
mower deck and bagging unit.
6. To convert to mulching or discharging operation,
remove grass catcher, assemble the mulching
plug and close the rear door.

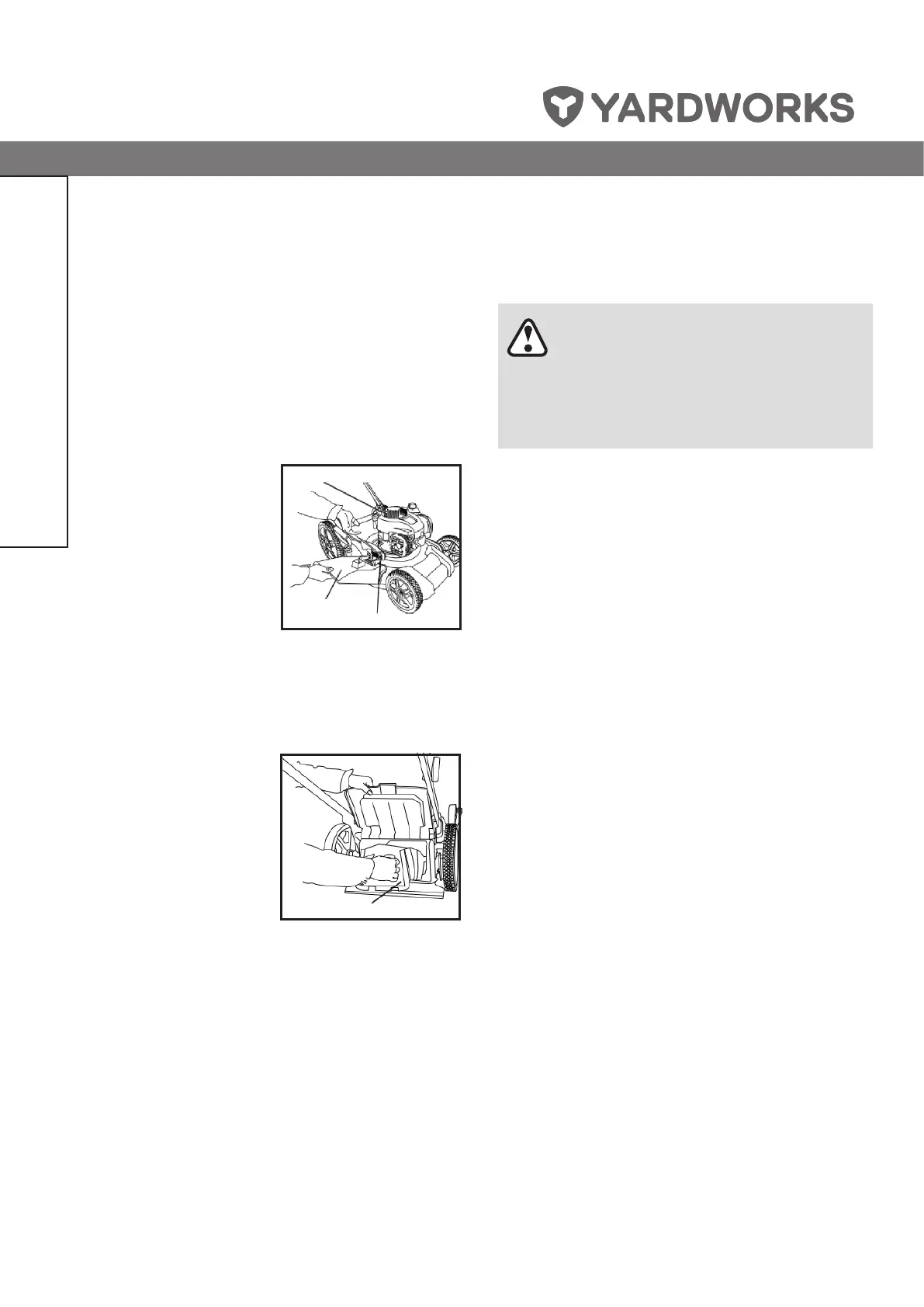

SIDE DISCHARGING
IMPORTANT:
THE REAR DOOR (IF EQUIPPED)
MUST BE CLOSED.
1. Open the mulch door.
2. Install the discharge
deflector under the
door as shown. The
mower is now ready
for discharging
operation.
NOTE:
To convert to mulching or bagging operation,
side mulch door must be closed.
MULCH/DISCHARGE GUARD
1. Open the mulch door.
2. Remove the discharge
deflector.
3. Assemble the
mulching plug as
shown. The mower
is now ready for
mulching operation.
SIMPLE STEPS TO REMEMBER WHEN
CONVERTING YOUR LAWN MOWER
FOR MULCHING
• The rear door is closed.
• The mulch door is closed, and the mulching plug
must be assembled.
FOR REAR BAGGING
• Remove the mulching plug.
• The grass catcher is installed.
• The mulch door is closed.
FOR SIDE DISCHARGING
• The rear door is closed.
• Assemble the mulching plug.
• The discharge deflector is installed.
CAUTION:
DO NOT run your lawn mower
without the rear door closed or an approved
grass catcher properly installed. NEVER
attempt to operate the mower with the rear
door removed or propped open. Serious
injury may result from operating the mower
with the rear discharge open.
Operation
side discharge chute
side discharge cover
Mulching plug
