Operation

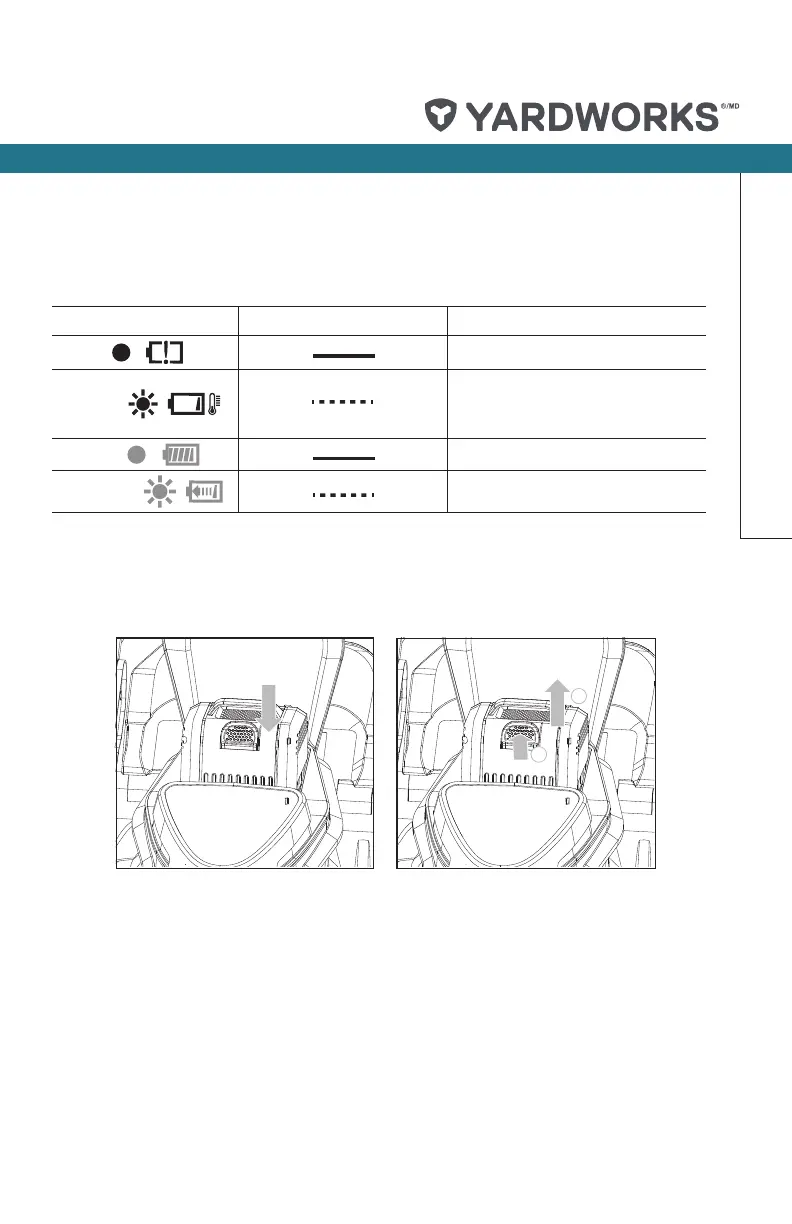

CHARGING INDICATOR
This charger is designed to detect some problems that can arise with battery packs.
Indicator lights indicate problems (see table below).
2. INSTALLING AND REMOVING THE BATTERY PACK
1) Slide the battery pack into tool’s battery port. A simple push and slight pressure will be
sufcient. (See Fig. H1)
2) Press the battery pack release button and remove the battery pack from the tool. (See
Fig. H2)
Light ON/ Flash Status
Red on
Defective Battery
Red ash
Battery Temperature Protection.
The temperature of battery pack is
less than 0
o
C (32
o
F) or more than
40
o
C (104
o
F).
Green on
Fully Charged
Green ash
Charging
1
2
H2
H1
