Yazoo YR-76 - YR-36 Chassis Parts List

" "'~

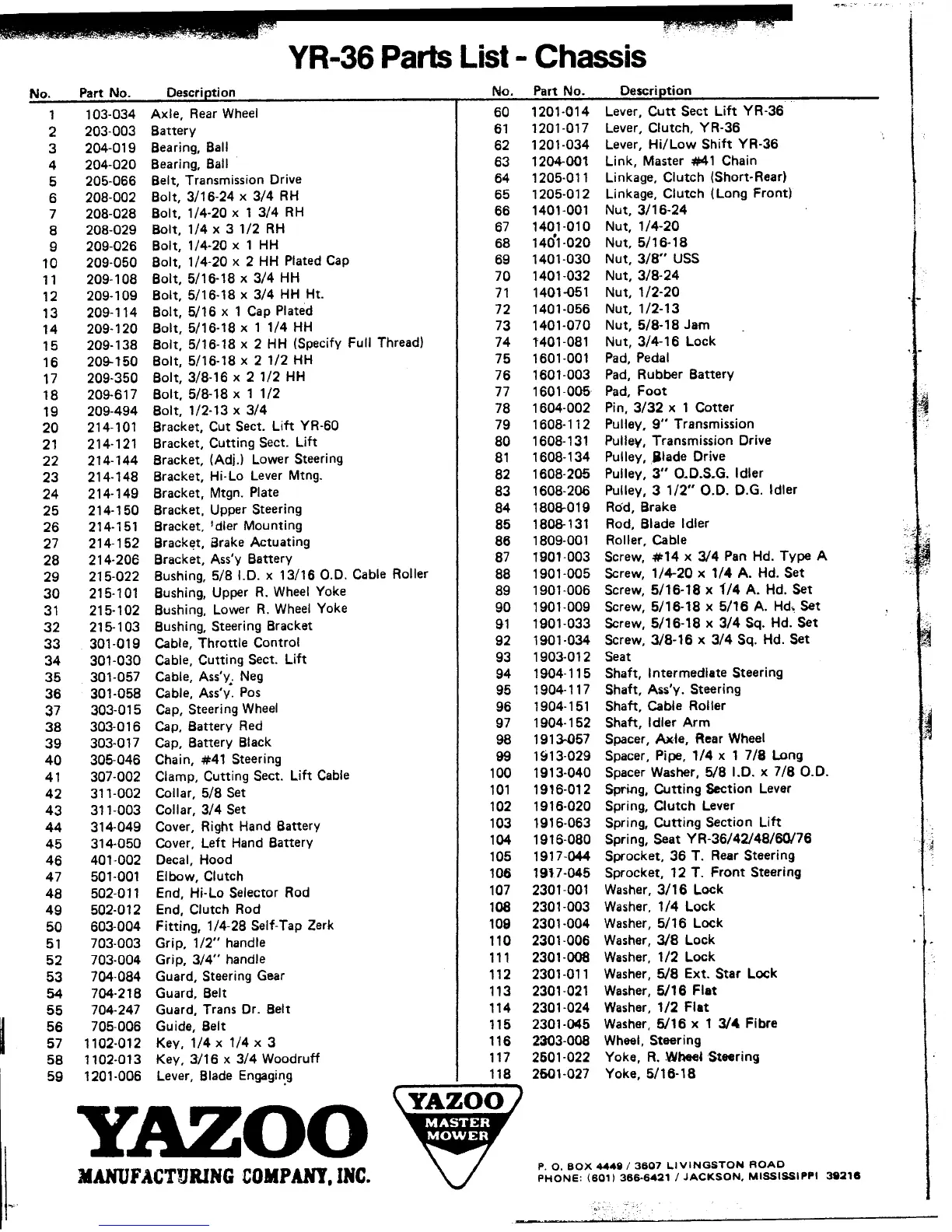

YR-36 Parts List - Chassis
No. Part No. Descri tion No. Part No. Descri tion
1 103-034 Axle, Rear Wheel 60 1201-014 Lever, Cutt Sect Lift YR-36
2 203-003 Battery 61 1201-017 Lever, Clutch, YR-36
3 204-019 Bearing, Ball 62 1201-034 Lever, Hi/Low Shift YR-36
4 204-020 Bearing, Ball 63 1204-001 Link, Master #41 Chain
5 205-066 Belt, Transmission Drive 64 1205-011 Linkage, Clutch (Short-Rear)
6 208-002 Bolt, 3/16-24 x 3/4 RH 65 1205-012 Linkage, Clutch (Long Front)
7 208-028 Bolt, 1/4-20 x 1 3/4 RH 66 1401-001 Nut, 3/16-24
8 208-029 Bolt, 1/4 x 3 1/2 RH 67 1401-010 Nut, 1/4-20
9 209-026 Bolt, 1/4-20 x 1 HH 68 140'1-020 Nut, 5/16-18
10 209-050 Bolt, 1/4-20 x 2 HH Plated Cap 69 1401-030 Nut, 3/8" USS
11 209-108 Bolt, 5/16-18 x 3/4 HH 70 1401-032 Nut, 3/8-24
12 209-109 Bolt, 5/16-18 x 3/4 HH Ht. 71 1401-051 Nut, 1/2-20
13 209-114 Bolt, 5/16 x 1 Cap Plated 72 1401-056 Nut, 1/2.13 "-
14 209-120 Bolt, 5/16-18 x 1 1/4 HH 73 1401-070 Nut, 5/8-18 Jam
15 209-138 Bolt, 5/16-18 x 2 HH (Specify Full Thread) 74 1401-081 Nut, 3/4-16 Lock
16 209-150 Bolt, 5/16-18 x 2 1/2 HH 75 1601-001 Pad, Pedal .. .
17 209-350 Bolt, 3/8-16 x 2 1/2 HH 76 1601-003 Pad, Rubber Battery
18 209-617 Bolt, 5/8-18 x 1 1/2 77 1601-005 Pad, Foot ;,
19 209-494 Bolt, 1/2-13 x 3/4 78 1604-002 Pin, 3/32 x 1 Cotter '"
20 214-101 Bracket, Cut Sect. Lift YR-60 79 1608-112 Pulley, 9" Transmission ::
21 214.121 Bracket, Cutting Sect. Lift 80 1608-131 Pulley, Transmission Drive
22 214-144 8racket, (Adj.) Lower Steering 81 1608-134 Pulley, glade Drive
23 214-148 Bracket, Hi-Lo Lever Mtng. 82 1608-205 Pulley, 3" D~D.S.G. Idler
24 214-149 Bracket, Mtgn. Plate 83 1608-206 Pulley, 3 1/2" D.D. D.G. Idler
25 214-150 Bracket, Upper Steering 84 1808-019 Rod, Brake
26 214-151 Bracket, 'dler Mounting 85 1808-131 Rod, Blade Idler
,
27 214-152 Brack~t, Srake Actuating 86 1809-001 Roller, Cable ~ ;~
28 214-206 Bracket, Ass'y Battery 87 1901-003 Screw, #14 x 3/4 Pan Hd. Type A c'1,II
.. 4
29 215-022 Bushing, 5/8 I.D. x 13/160.0. Cable Roller 88 1901-005 Screw, 1/4-20 x 1/4 A. Hd. Set
30 215-101 Bushing, Upper R. Wheel Yoke 89 1901-006 Screw, 5/16-18 x 1/4 A. Hd. Set
31 215-102 Bushing, Lower R. Wheel Yoke 90 1901-009 Screw, 5/16-18 x 5/16 A. Hd, Set
32 215-103 Bushing, Steering Bracket 91 1901-033 Screw, 5/16-18 x 3/4 Sq. Hd. Set
33 301-019 Cable, Throttle Control 92 1901-034 Screw, 3/8-16 x 3/4 Sq. Hd. Set ~
34 301-030 Cable, Cutting Sect. Lift 93 1903-012 Seat
35 301-057 Cable, Ass'y. Neg 94 1904-115 Shaft, Intermediate Steering
36 301-058 Cable, Ass'Y'. Pos 95 1904-117 Shaft, Ass'y. Steering
37 303-015 Cap, Steering Wheel 96 1904-151 Shaft, Cable Roller
38 303-016 Cap, Battery Red 97 1904-152 Shaft, Idler Arm
39 303-017 Cap, Battery Black 98 1913-057 Spacer, Axfe, Rear Wheel
40 305-046 Chain, #41 Steering 99 1913-029 Spacer, Pipe, 1/4 x 1 7/8 Long
41 307-002 Clamp, Cutting Sect. Lift Cable 100 1913-040 Spacer Washer, 5/8 I.D. x 7/8 D.D.
42 311-002 Collar, 5/8 Set 101 1916-012 SpriJlg, Cutting Section Lever
43 311-003 Collar, 3/4 Set 102 1916-020 Spring, Clutch Lever
44 314-049 Cover, Right Hand Battery 103 1916-063 Spring, Cutting Section Lift
45 314-050 Cover, Left Hand Battery 104 1916-080 Spring, Seat YR-36/42/48/60/76
46 401-002 Decal, Hood 105 1917-044 Sprocket, 36 T. Rear Steering
47 501-001 Elbow, Clutch 106 19't7-045 Sprocket, 12 T. Front Steering
48 502-011 End, Hi-Lo Selector Rod 107 2301-001 Washer, 3/16 Lock .
49 502-012 End, Clutch Rod 108 2301-003 Washer, 1/4 Lock
50 603-004 Fitting, 1/4-28 Self-Tap Zerk 109 2301-004 Washer, 5/16 Lock
51 703-003 Grip, 1/2" handle 110 2301-006 Washer, 3/8 Lock . ..
52 703-004 Grip,3/4"handle 111 2301-008 Washer,1/2Lock
53 704-084 Guard, Steering Gear 112 2301-011 Washer, 5/8 Ext. Star Lock
54 704-218 Guard, Belt 113 2301-021 Wa$her, 5/16 Flat
55 704-247 Guard, Trans Dr. Belt 114 2301-024 Washer, 1/2 Flat
56 705-006 Guide, Belt 115 2301-045 Washer, 5/16 x 1 3/4 Fibre
57 1102-012 Key, 1/4 x 1/4 x 3 116 2303-008 Wheel, Steering
58 1102-013 Key, 3/16 x 3/4 Woodruff 117 2501 -022 Yoke, R. Whee. Steering
59 1201-006 Lever, Blade Engaging 118 2601-027 Yoke 5/16-18
. '
