Yazoo YR-76 - YR-36 Cutting Section Parts List

~~ ~"'.",.,.- "'I

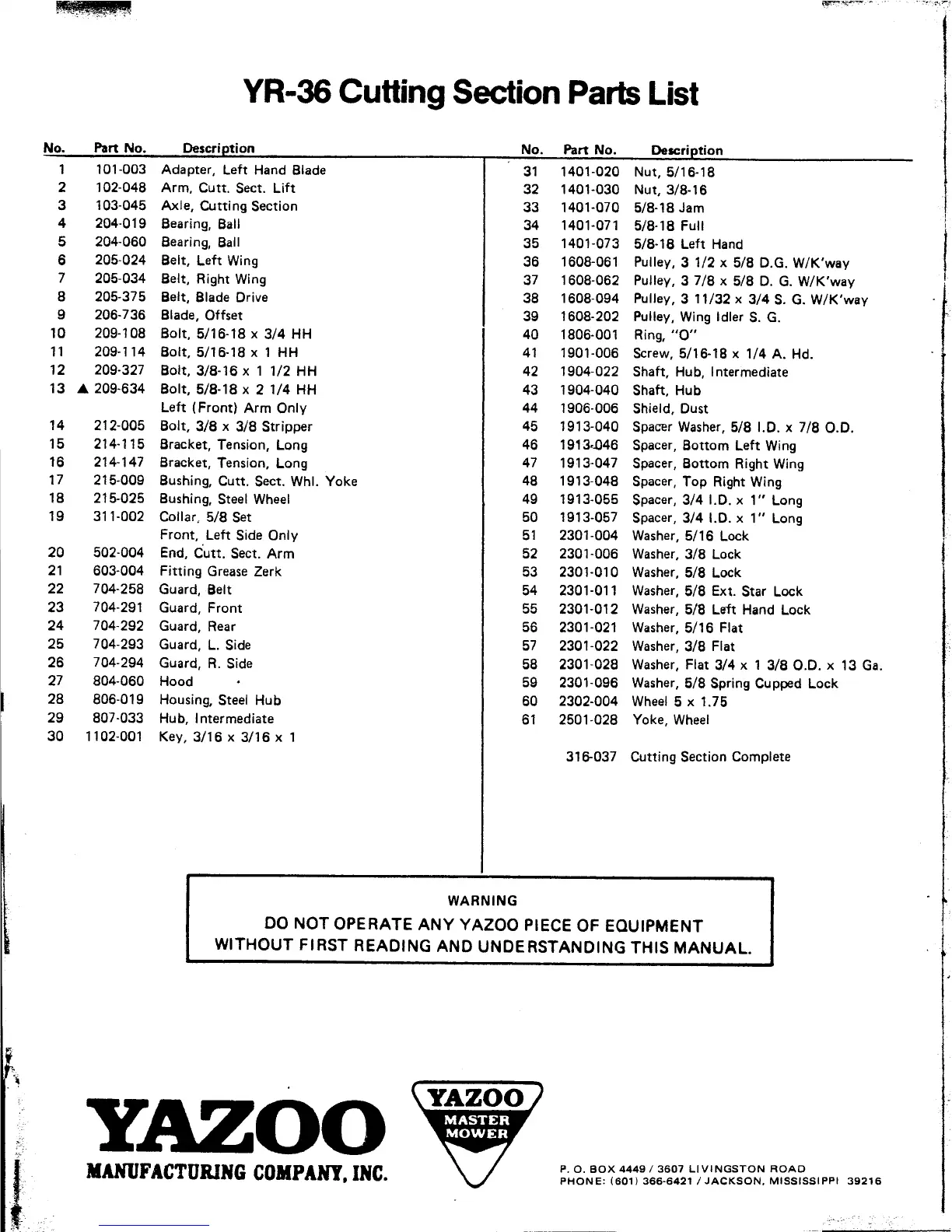

YR-36 Cutting Section Parts List .I
No. Part No. Descri tion No. Part No. Descri tion
1 101-003 Adapter, Left Hand Blade 31 1401-020 Nut, 5/16-18
2 102-048 Arm, Cutt. Sect. Lift 32 1401-030 Nut, 3/8-16
13 103-045 Axle, Cutting Section 33 1401-070 5/8-18 Jam
I
4 204-019 Bearing, Ball 34 1401-071 5/8-18 Full i
5 204-060 Bearing, Ball 35 1401-073 5/8-18 Left Hand
6 205-024 Belt, Left Wing 36 1608-061 Pulley, 3 1/2 x 5/8 D.G. W/K'way
7 205-034 Belt, Right Wing 37 1608-062 Pulley, 37/8 x 5/8 D. G. W/K'way
8 205-375 Belt, Blade Drive 38 1608-094 Pulley, 3 11/32 x 3/4 S. G. W/K'way .
r9 206-736 Blade, Offset 39 1608-202 Pulley, Wing Idler S. G.
10 209-108 Bolt, 5/16-18 x 3/4 HH 40 1806-001 Ring, "0"
11 209-114 Bolt, 5/16-18 x 1 HH 41 1901-006 Screw, 5/16-18 x 1/4 A. Hd. .
12 209-327 Bolt, 3/8-16 x 1 1/2 HH 42 1904-022 Shaft, Hub, Intermediate
13 A 209-634 Bolt, 5/8-18 x 2 1/4 HH 43 1904-040 Shaft, Hub
Left (Front) Arm Only 44 1906-006 Shield, Dust
14 212-005 Bolt, 3/8 x 3/8 Stripper 45 1913-040 Spacer Washer, 5/8 1.0. x 7/80.0.
15 214-115 Bracket, Tension, Long 46 1913..046 Spacer, Bottom Left Wing
16 214-147 Bracket, Tension, Long 47 1913-047 Spacer, Bottom Right Wing
17 215-009 Bushing, Cutt. Sect. Whl. Yoke 48 1913-048 Spacer, Top Right Wing
18 215-025 Bushing, Steel Wheel 49 1913-055 Spacer, 3/4 1.0. x 1" Long
19 311-002 Collar, 5/8 Set 50 1913-057 Spacer, 3/4 1.0. x 1" Long
Front, Left Side Only 51 2301-004 Washer, 5/16 Lock
20 502-004 End, Cutt. Sect. Arm 52 2301-006 Washer, 3/8 Lock
21 603-004 Fitting Grease Zerk 53 2301-010 Washer, 5/8 Lock
22 704-258 Guard, Belt 54 2301-011 Washer, 5/8 Ext. Star Lock
23 704-291 Guard, Front 55 2301-012 Washer, 5/8 Left Hand Lock
24 704-292 Guard, Rear 56 2301-021 Washer, 5/16 Flat
25 704-293 Guard, L. Side 57 2301-022 Washer, 3/8 Flat
26 704-294 Guard, R. Side 58 2301-028 Washer, Flat 3/4 x 1 3/8 0.0. x 13 Ga.
27 804-060 Hood . 59 2301-096 Washer, 5/8 Spring Cupped Lock
28 806-019 Housing, Steel Hub 60 2302-004 Wheel 5 x 1.75
29 807.033 Hub, Intermediate 61 2501.028 Yoke, Wheel
30 1102-001 Key, 3/16 x 3/16 x 1
316-037 Cutting Section Complete
t
WARNING
DO NOT OPERATE ANY YAZOO PIECE OF EQUIPMENT
WITHOUT FIRST READING AND UNDERSTANDING THIS MANUAL.
~
r"
. ~
;3 y~ZOO
f,'. 0: P. O. BOX 4449/ 3607 LIVINGSTON ROAD
. MANUFACTURING COMPANY. INC. PHONE: (601) 366-6421/JACKSON. MISSISSIPPI 39216
