Yealink UVC86 User Manual

to know more about the connection, pairing and update of UVC86 with the different conferencing endpoints.
Zoom VersionZoom Version:
Connect the UVC86 to MeetingEye 500: MeetingEye 500

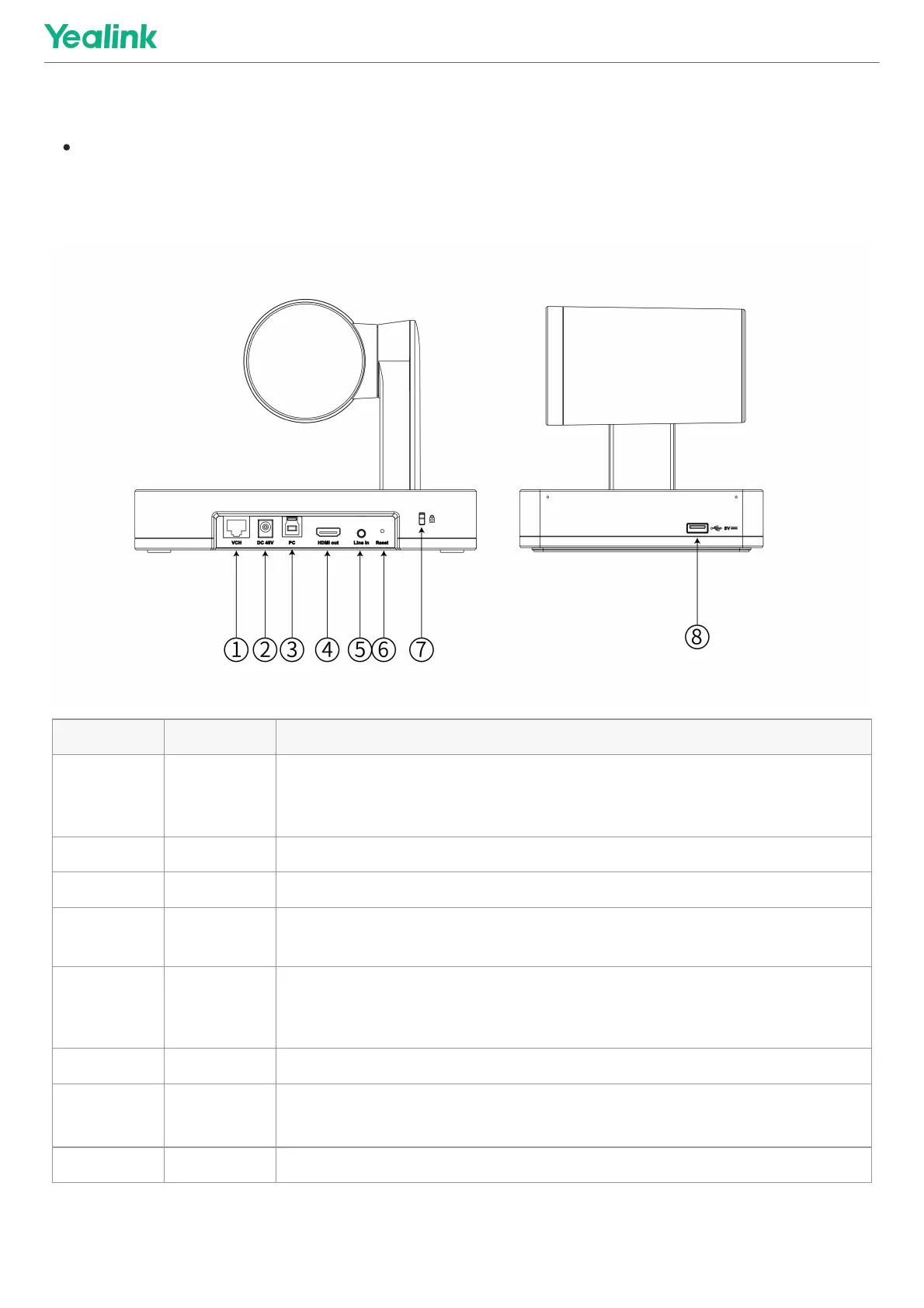

Hardware InstructionsHardware Instructions
No.No. ItemItem DescriptionDescription
1 VCH Port
In the MVC system, connect to audio device (for example: VCM34).
In video conference system, connect to the endpoint (for example: MeetingEye
800).
2 DC48V Connect to the power adapter.
3 PC Port Connect to a PC as video output.
4 HDMI out
In the VCS system, used for sharing content or camera image (it does not apply
to the MVC system).
5 Line in
The UVC86 can be connected to a third-party audio playback device via a 3.5mm
audio cable, and the audio output from third-party audio device is used as an
audio reference signal for the UVC86 voice tracking.
6 Reset Reset the UVC86 to factory defaults.
7
Security
slot
Connect a universal security cable to the UVC86 so that you can lock the UVC86
down.
8 USB-A Port Connect to DD10 or USB disk.
UVC86
7

Yealink UVC86 Specifications

General

Microphone in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cables included	USB
USB cable length	7 m
Megapixel	8 MP
Camera type	Dual camera
Digital zoom	1.7 x
Optical zoom	12 x
Vertical field of view	78 °
Horizontal field of view	110 °
Number of camera presets	9
Pan range	-100 - 100 °
Mounting type	Stand
Product color	Black
Tilt angle range	-90 - 40 °
Tracking modes	Presenter mode
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Input current	0.7 A
DC input voltage	48 V
Power source type	AC
AC input frequency	100 - 240 Hz
Maximum frame rate	30 fps
Maximum video resolution	3840 x 2160 pixels
Harmonized System (HS) code	85258900

Weight and Dimensions

Depth	156 mm
Width	210 mm
Weight	3270 g
