Block Diagram PUC LEA

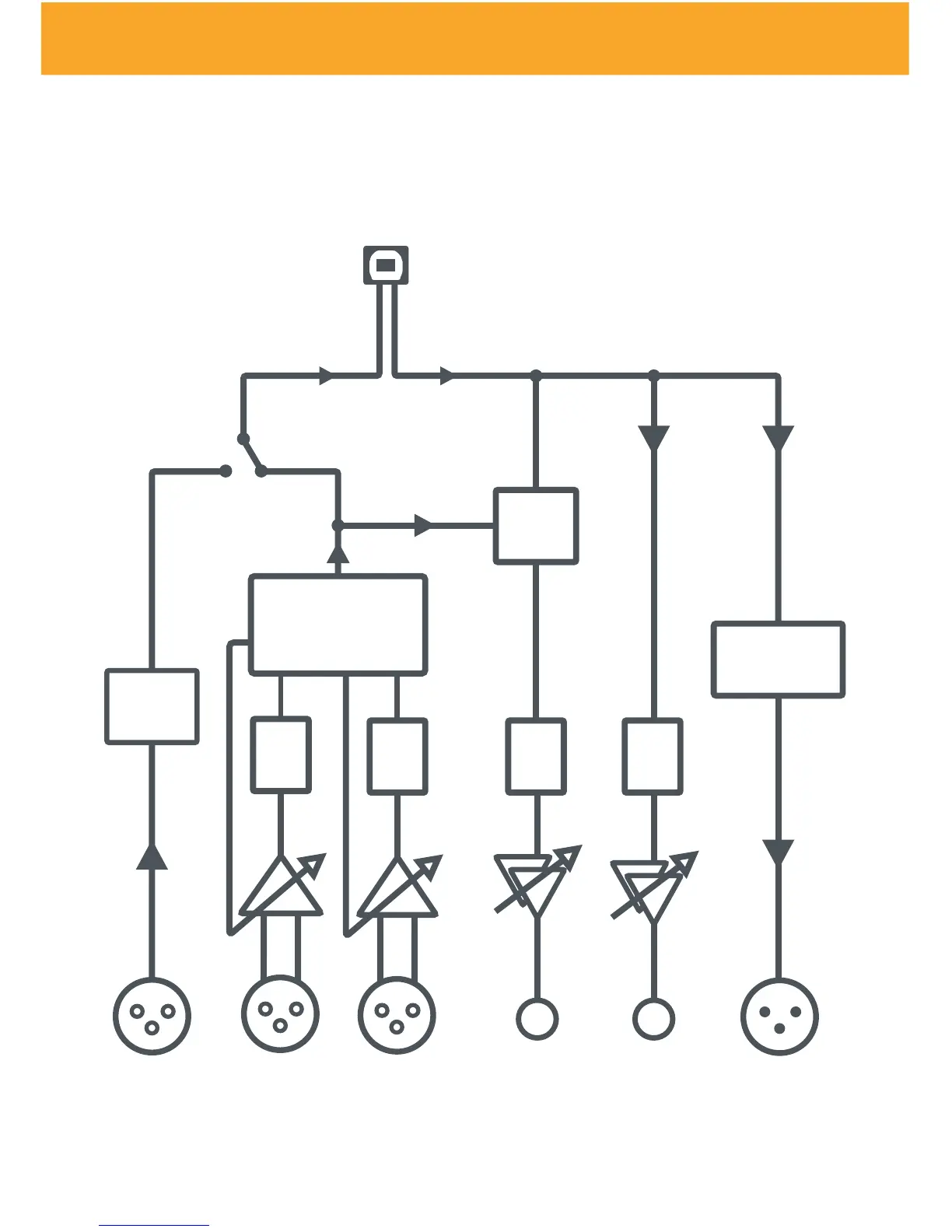

The PUC LEA Block Diagram will give you a detailed overview of the internals
of our PUC LEA in PC/USB Mode
USB
Auto
AES3
Input
Decoder
LEA Engine
Level Enhanced
Automation
AES3
Output
Decoder
A/D
Conv
monitor
mix
1 2
Speaker Out
AES3/SPDIF
AES3
H/P Out
Mic Inputs
Digital In
Analog OutputsD igital Out
DAC DAC
A/D
Conv
