ASSEMBLY INSTRUCTIONS
Toilet seat
Toilet base
Toilet pedal
Drain valve
Φ10mm mounting hole
½inch water inlet
Toilet lid
Water pipe
Floor mounting kit
Seal ring
T-bolt and
rubber case
T-type flush nozzle

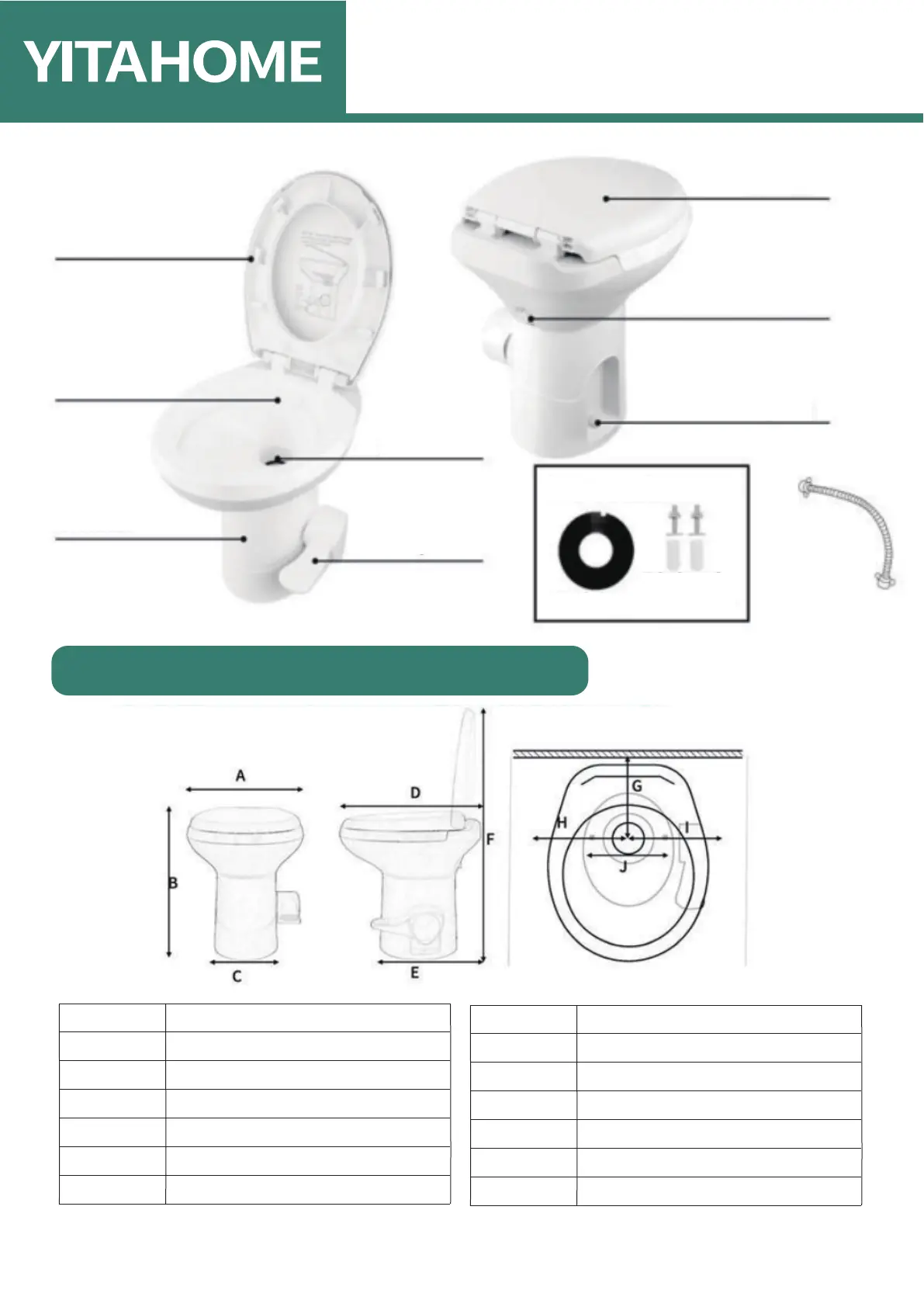

Product and mounting dimension
The outside diameter of the toilet drain outlet: 95mm / 3.7";
The inne r diameter of the toilet drain outlet: 87mm / 3.4".
Ref. Description
390mm / 15.4"
500mm / 19.7"
233mm/9.2"
485mm / 19.1"
380mm / 15.0"
890mm / 35.0"
A
B
C
D
E
F
Ref. Description
Minimum: 200mm /7.9"
M.,m. mum: 200mm /7.9"
Minimum: 200mm /7.9"
170mm/6.7"
G
H
I
J
