YMGI WMMS-09EW-V2B - Page 13

INSTALLER'S
INSTRUCTION
INSTALLER'S
INSTRUCTION
P24 OF 40P23 OF 40

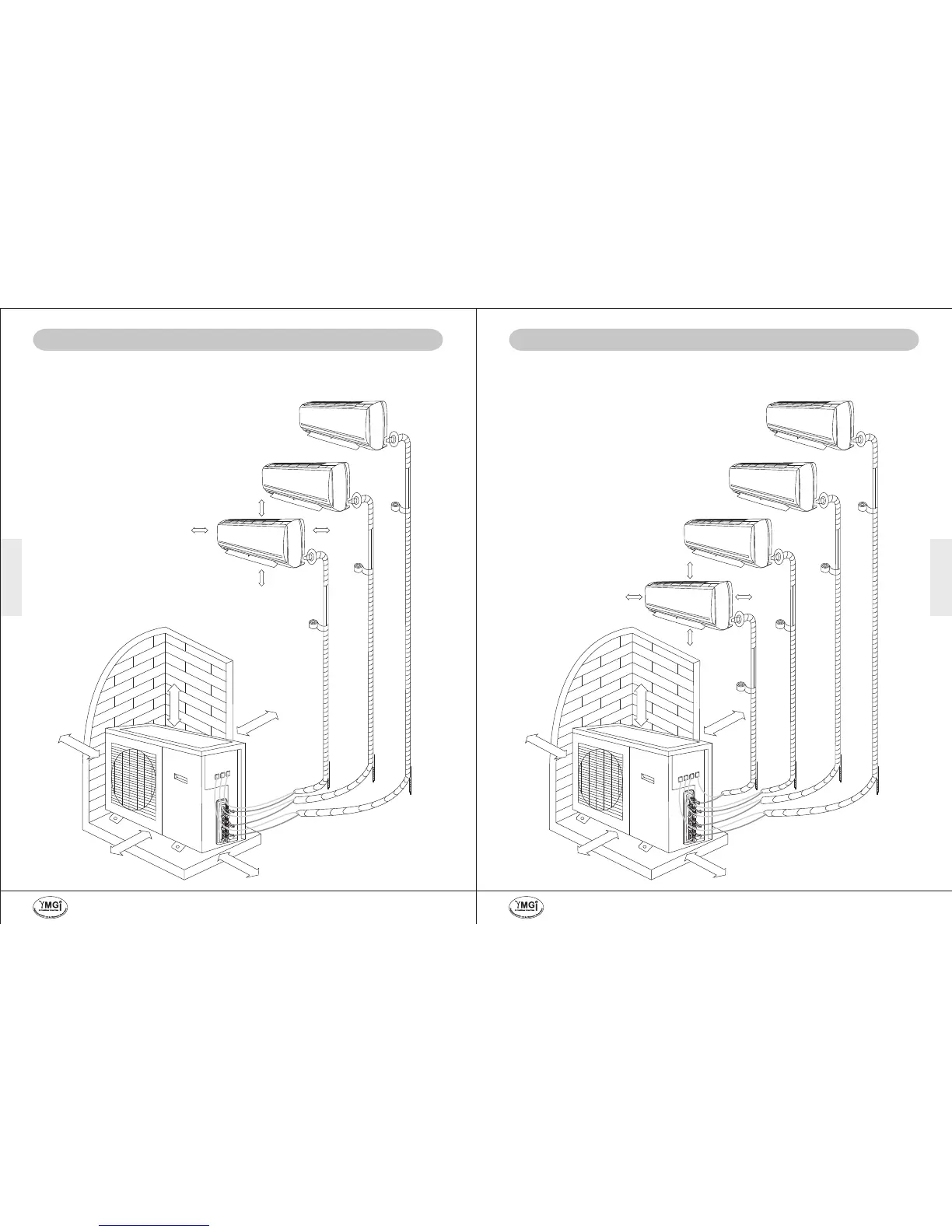

SYSTEM LAYOUT & INSTALLATION CLEARANCE
Indoor unit A
Indoor unit B
Indoor unit C
Indoor unit D
OVER 20"
OVER 10"
OVER 10"
OVER 8"
OVER 10"
CLEARANCE REQUIRED AROUND UNITS-QUAD ZONE
OVER 2"
OVER 4" OVER 4"
OVER 80"
YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World !
SYSTEM LAYOUT & INSTALLATION CLEARANCE
CLEARANCE REQUIRED AROUND UNITS-TRIPLE ZONE
Indoor unit A
Indoor unit B
Indoor unit C
OVER 20"
OVER 10"
OVER 10"
OVER 8"
OVER 10"
OVER 2"
OVER 4" OVER 4"
OVER 80"
