Yoder YS 480

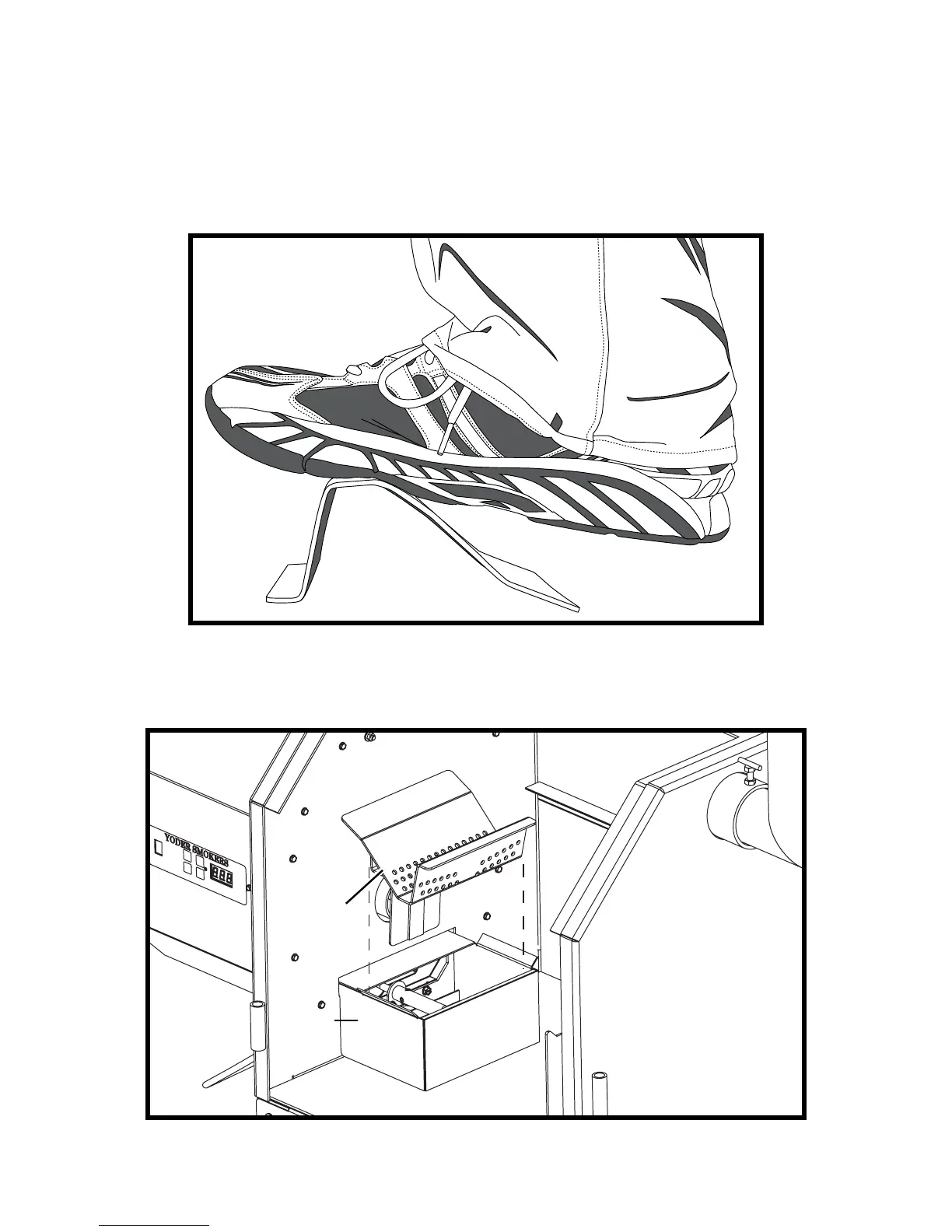

1. Start by removing the burn grate from the rebox and placing it on its top.
2. Next, step on the burn grate and apply enough pressure to bend it back to its orig-
inal shape. Do not apply too much pressure or you will overcorrect the burn grate
and it will not t back into the rebox.
3. Place the burn grate back into the rebox and check the gap between the back
wall and the burn grate to insure a proper t. If a gap still exists then repeat steps
1 and 2.
FIG 23
BURN GRATE
FIREBOX
FIG 24
