YOKOGAWA 734 01 User Manual

16

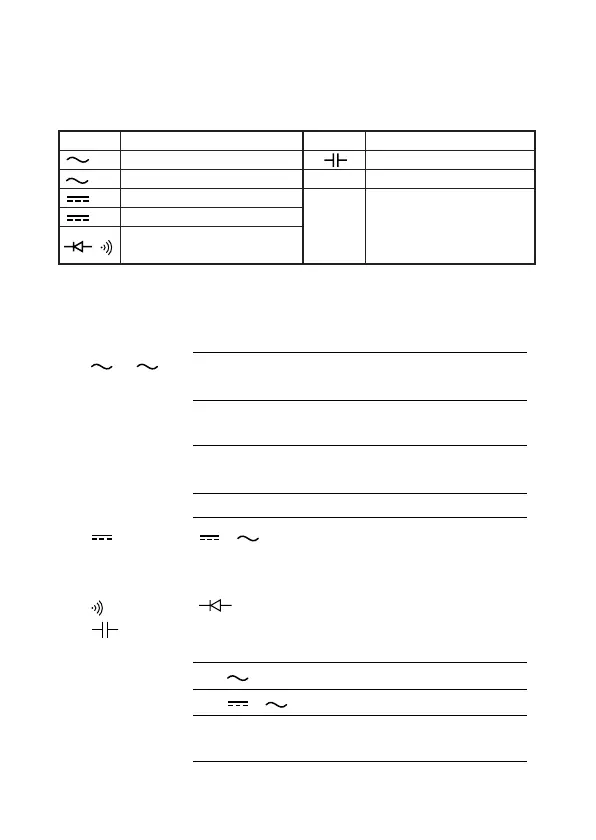

1) Function switch
Turns off the power or select the measurement mode (function).
Turns off the power.
AC voltage (V) measurement
AC voltage (mV) measurement
DC voltage (V) measurement
DC voltage (mV) measurement
Continuity check, Diode Test
OFF
V
mV
V
mV
Ω
TEMP
µA
mA
A
Resistance measurement
Capacitor measurement
Temperature measurement
DC/AC current measurement
2) SELECT key
Pressing this key in each measurement modes (function)
described above selects other measurement modes (function).
V, mV 1 Hz
V
: Frequency measurement
(Voltage value is displayed.)
2Hz
%
: Frequency measurement
(Duty cycle ratio)
3dB
V
: dB measurement
(Voltage vaë e is displayed.)
4dBm : dBm measurement
V + (DC+AC) measurement
Ω ZERO CAL: Zero Adjustment of Resistance
measurement
Diode Test
ZERO CAL: Zero Adjustment of Capacitor
measurement
µA/mA/A 1 : AC voltage measurement
2 + : (DC+AC) measurement
3Hz
%
: Frequency measurement
(Duty cycle ratio)

YOKOGAWA 734 01 Specifications

General

Brand	YOKOGAWA
Model	734 01
Category	Multimeter
Language	English
