39
IM 04L41B01-02E

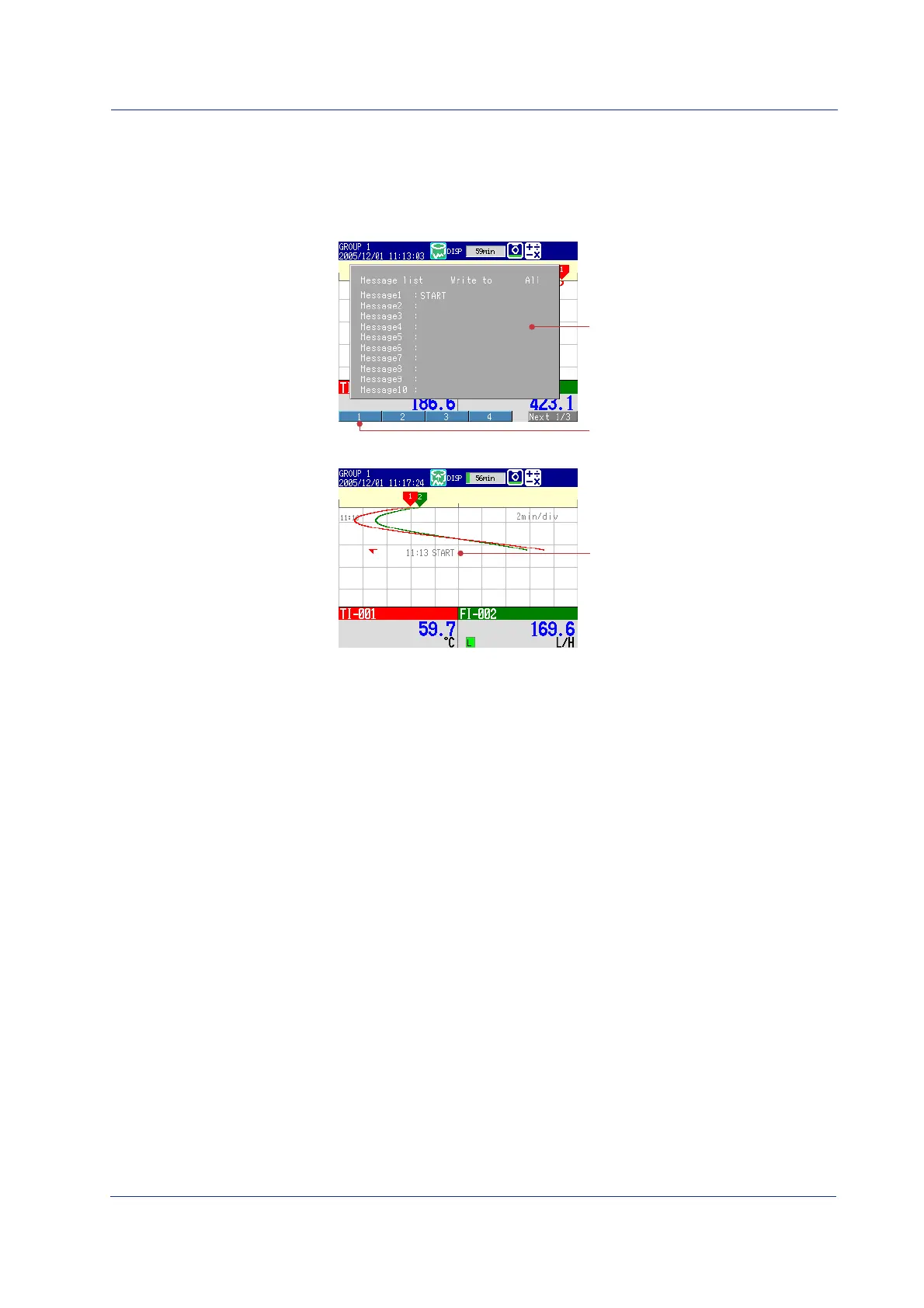

Writing Message Number 1 “START”
This operation can be carried out while memory sample is in progress. The message is
displayed on the trend display. Show the trend display first.
1
.
Press
FUNC
(display the FUNC key menu), press the
Message
soft key, and
press the
1-10
soft key.
Show the message registration windo
w
1 soft key
2
.
Press the
1
soft key.
Shows the message
(time, messa
ge, and messa
ge mark)
Also recorded to the internal memory
Operation complete.
Operation
39
41
Table of Contents
Table of Contents
2
Foreword
4
Safety Precautions
4
Handling Precautions of the DX
5
Handling Precautions of the External Storage Medium (CF Card)
5
Checking the Contents of the Package
6
Conventions Used in this Manual
7
Opening the Electronic Manuals
7
Introduction to Functions
8
Measured Items
8
Data Storage Function
8
Display Function
8
Other Functions
8
Daqstandard
8
DX System Configuration
9
Terminology
9
Names of Parts
10
DX1000/DX1000N Workflow
12
Turning the Power ON/OFF (DX1002, DX1004, DX1006, and DX1012 Only)
13
Turning the Power on
13
Turning the Power off
13
Basic Operation
14
Panel Keys and Display
14
Run Modes
16
Entering Values and Characters
17
Changing the Date/Time
18
Operation Example in the Setting Mode: Changing the Input Range
19
Operation Example in the Basic Setting Mode: Changing the Scan Interval
21
Inserting/Removing a CF Card
23
Saving the Setup Data
25
Loading the Setup Data
26
Setting the Input Range and Alarm
27
Setup Example 1: Temperature Measurement Channel
27
Setup Example 2: Flow Rate Measurement Channel and Alarm
28
Setting the Display
29
Setup Example 3: Assigning Channels to Groups
29
Setup Example 4: Setting the Time Scale
30
Setting the Data Storage
31
Setup Example 5: Continuously Record Measured Data and Automatically Save
31
Setup Example 6: Saving Measured Data at the Specified Time
33
Customizing the Operation
34
Setup Example 7: Assigning the Screen Image Data Storage Function to the USER Key
34
Setup Example 8: Registering Frequently Used Screens to the Favorite Key
35
Operation
37
Starting the Memory Sample
37
Stopping the Memory Sample
37
Switching the Trend Display, Digital Display, and Bar Graph Display
38
Writing the Message "START
39
Connecting to an Ethernet Network
41
Setup Example 9: Monitoring the DX on a PC Browser
41
Setup Example 10: Automatically Transferring the Measured Data File to an FTP Server
44
Using DAQSTANDARD
46
Displaying the Measured Data on DAQSTANDARD
46
Installation and Wiring
47
Installation Location
47
Installation Procedure
48
Input Signal Wiring
50
Optional Terminal Wiring
53
Alarm Output Terminal, FAIL Output Terminal, and Status Output Terminal (/A1, /A2, /A3, and /F1)
55
Remote Control Input Terminal (/R1)
55
Pulse Input Terminal (/PM1)
55
VDC Transmitter Power Supply Output Terminal (/TPS2 and /TPS4)
55
Connecting to the RS-232 Connector (/C2)
55
Connecting to the RS-422A/485 (/C3)
56
Connecting to the USB Port (/USB1)
56
Connecting to the Ethernet Port
56
Power Supply Wiring
57
Recommended Replacement Periods for Worn Parts
59
Setup Items and Default Values
60
Setup Items in Setting Mode and Their Default Values
61
Setup Items in Basic Setting Mode and Their Default Values
69
