IM 12D07J01-10E-E
27
10
20
30
40
50
25
16
0
0
bar
50 100 150 200 250
Flange PN63
ºC
dedaerhT
Flange PN40

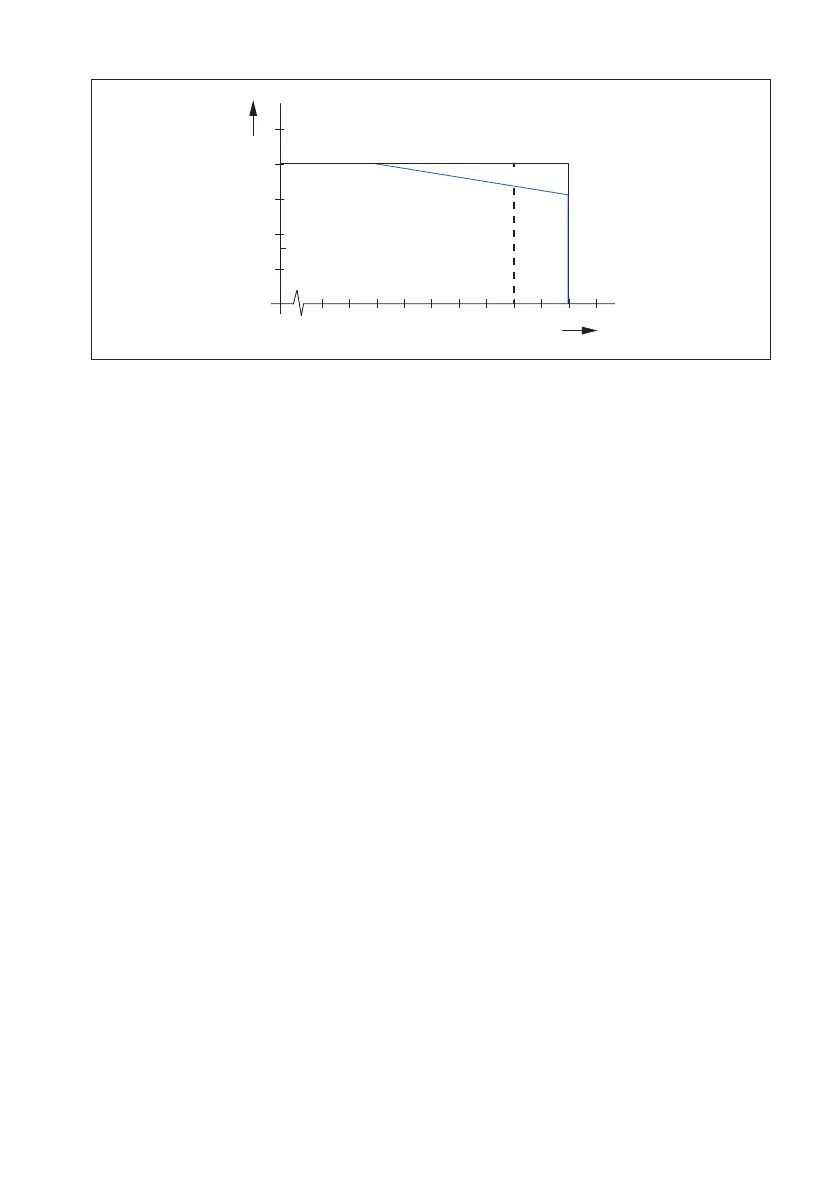

Fig. 29 Pressure vs. process temperature flanged / threaded models SX42
Cable length:
Threaded models (-BS,-NS) : max. 60 meter with WU40 cable in combination
with WF10 cable and BA10 junction box
Threaded models (-BV,-NV)
Variopin connector directly connected : max. 60 meter with WU10/WE10
(possibly in combination with WF10 cable
and BA10 junction box}
For sensors with suffix -BV/NV : 3 meter WE10 cable (as option) combined
with SA11 Smart Adapter
combined with SA11 Smart Adapter Smart Adapter directly connected to the
analyzer using a WU11 cable up to 100 meters
or
Connected to a BA11 connetion box
using WU11 cable upto 100 m. The BA11
connection box is connected to the analyzer
using a WU11 cable up to 100m
Flanged models : max. 60 meter with customer specified high
temperature cable
