YOKOGAWA UM350 User Manual

1-6
<Toc> <1. Installation>
IM 05F01D02-41E 1st Edition : May 31,2000-00

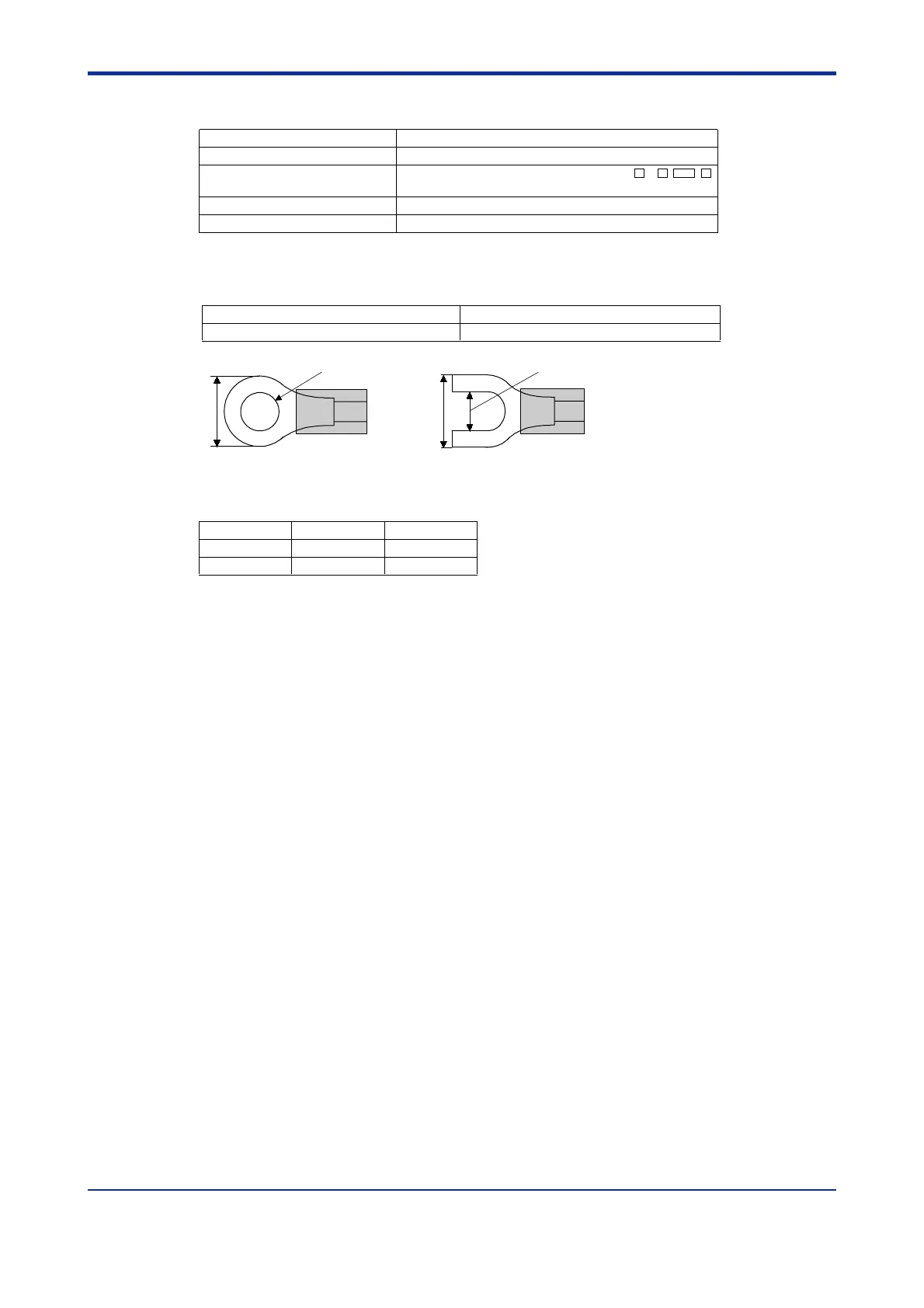

● Cable Specifications and Recommended Cables
Purpose Name and Manufacturer
Power supply, grounding, relay contact outputs
600 V PVC insulated wires, JIS C 3307, 0.9 to 2.0 mm
2
Thermocouple Shielded compensating lead wires, JIS C 1610, X- - -
(See Yokogawa Electric's GS 6B1U1-E.)
RTD Shielded wires (three conductors), UL2482 (Hitachi Cable)
Other signals Shielded wires
● Recommended Terminal Lugs
3.7mm
7 mm or less
3.7mm
7 mm or less
or
0.3 to 1.65 mm
2
0.8 N·m or less
Applicable wire size Tightening torque
● Terminal Covers
Target Model Part Number Sales Unit
UM350 T9115YD 1
UM330 T9115YE 1
