Page #5 background image
5
#2 の内容
Bag#2Contents
#1 の内容
Bag#1Contents
このページで使用するパーツ
Partsusedonthispage

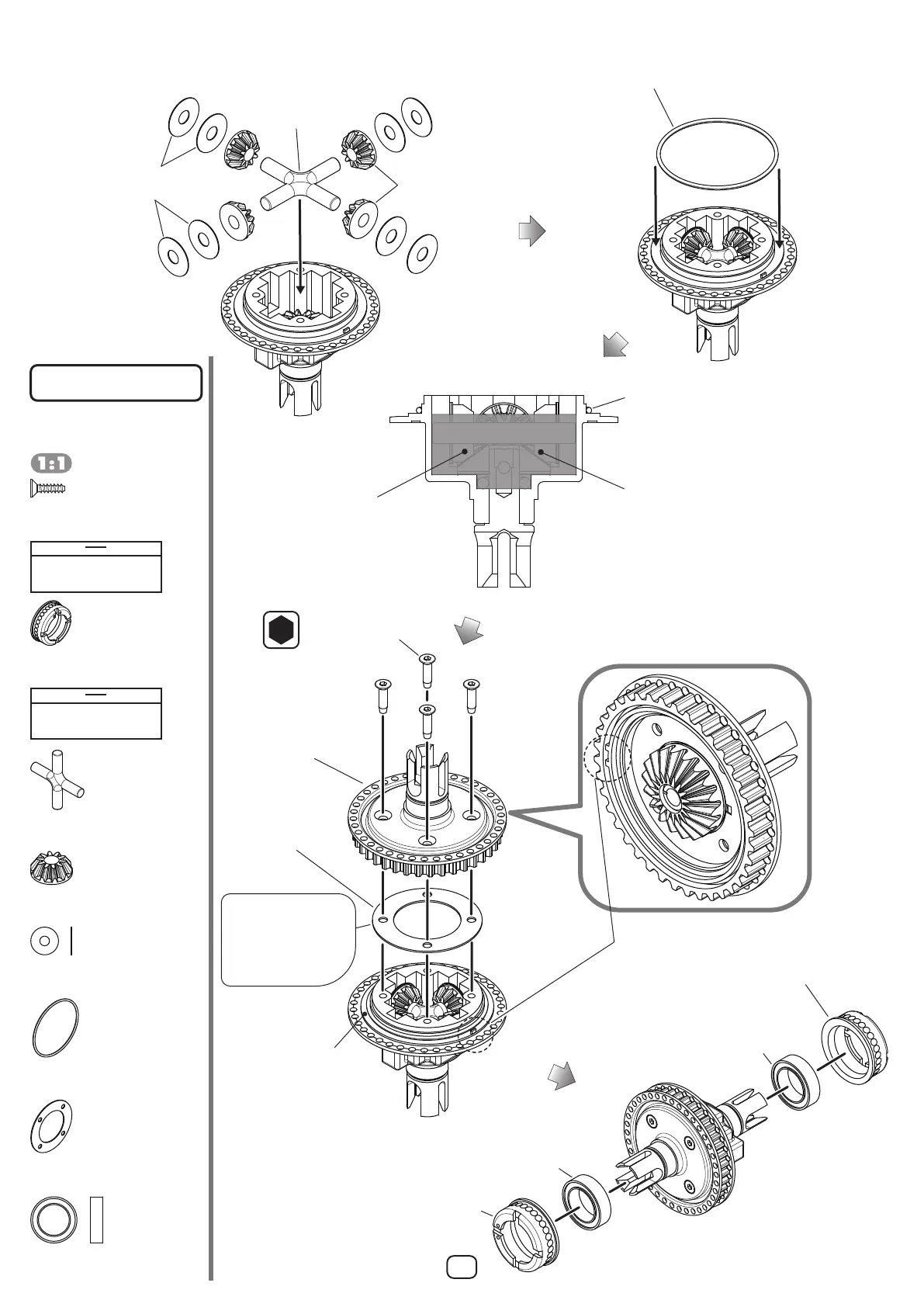

3. ギヤデフの組立て
 
GearDiffAssembly
ZC-F28TPHA
M2x8サラタッピングビス×4
FHTappingScrew
BB-1510PA
10x15ベアリング×2
Bearing
B9-503GSA
デフシム (S)×8
DiffShim(S)
B9-503GPA
クロスピン×1
CrossPin
B9-503GPA
デフギヤ (S)×4
DiffGear(S)
B10-500GMA
ケースリング ×1
CaseRing
B9-501GGA
ガスケット ×1
Gasket
B9-BTCA
ベルト調整カム ×2
BeltTensionAdjustingCam
CS-7500B
ギヤデフオイル#7500×1
GearDiffOil
B9-BTCA
ベルト調整カム
BeltTensionAdjusting
Cam
BB-1510PA
10x15ベアリング
Bearing
BB-1510PA
10x15ベアリング
Bearing
B9-BTCA
ベルト調整カム
BeltTensionAdjusting
Cam
ZC-F28TPHA
M2x8サラタッピングビス
FHTappingScrew
デフプーリー
DiffPulley
ゆっくりと被せる。
Slowlyput.
均一にしめ込む。
Tightenevenly.
1.5
あふれたオイルは丁寧に
ふき取る。
Theoverflowingoilis
politelywipedoff.
B9-501GGA
ガスケット
Gasket
合わせる。
Marks
推奨ー
シールグリスCS-SLGA
●860( 別売 ) を両面に塗る。
Recommendation-
Applysealgreaseonboth
sides.
CS-SLGA
SealGrease●860
B10-500GMA
ケースリング
CaseRing
B9-503GPA
クロスピン
CrossPin
B9-503GSA
デフシム (S)
DiffShim(S)
B9-503GPA
デフギヤ (S)
DiffGear(S)
オイル量の基準は 1.5g。
クロスピンが隠れるまで
入れる。
Referenceamountof
oilis1.5g.
Oilisputinuntilapin
hides.
CS-7500B
ギヤデフオイル#7500
GearDiffOil
B10-500GMA
ケースリング
CaseRing
