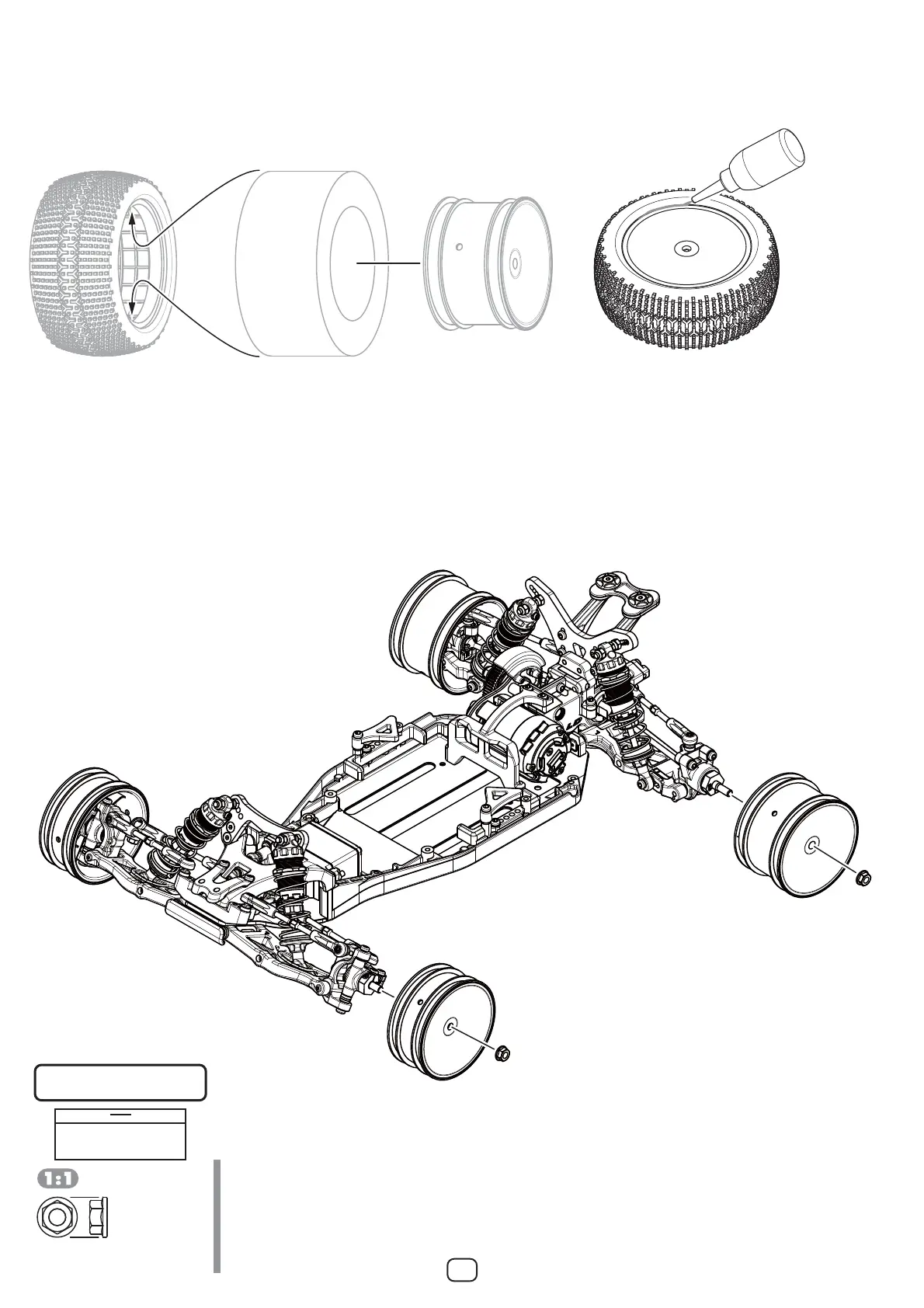

タイヤの接着、取り付け
MountingTires,WheelInstallation
タイヤにインナースポンジを押し込み、タイヤのリブをホイルの溝にはめ込みます。
Placethetireinsertintothetire,andtireontotheweel.
※タイヤ、インナースポンジ、ホイールは付属しておりません。
別途ご用意ください。
Tireandinsert,wheels(Soldseparately)
タイヤのサイドをめくり、ホイルとの隙間に瞬間接着剤を
流し込み、両サイドを接着します。
Pullthesidewallofthetireslightlyawayformthe
rimandapplyCA(Cyanoacrylate)glueinbetween
thetirebeadandrim.
瞬間接着剤
(別途ご用意下さい。
CA(Cyanoacrylate)glue
soldseparately.
◆反対側も同様に固定します。
Secureeachsideinthesamemanner.
25
ホイール
Wheel
インナースポンジ
Insert
タイヤ
Tire
#13 の内容
Bag#13Contents
このページで使用するパーツ
Partsusedonthispage
ホイール(別途ご用意下さい。
Wheel(Soldseparately.)
B2-821HYA/B2-821HWA
フロントホイール
FrontWheel
B4-827A/B4-827WA
リヤホイール
RearWheel
BM-N4SA/ZC-N4FBKA
M4 セレーションナット×4
Serratedflangenut
BM-N4SA/ZC-N4FBKA
M4 セレーションナット
Serratedflangenut
