YZ-114 PLUSYZ-114 PLUS
Find the complete flow diagram for this charger on page 7 and refer to the configurable settings of
the charger. It is highly recommended to refer to the flow diagram until becoming familiar with the
controls of this charger.
There are two ways to operate this charger.
1. Using memory profiles with previously-set charge or discharge parameters.
2. Performing parameters manually when charging or discharging.
1. This charger can store up to 10 profiles in memory containing settings for charging or
discharging. Once a memory profile is set-up, it can be used in the future to instantly recall
settings to allow charging or discharging without the need to manually enter settings again. The
memory profile will be stored until it is changed again manually.
2. If the memory profile is not used, then the parameters required for the charge or discharge
process must be entered manually each time.

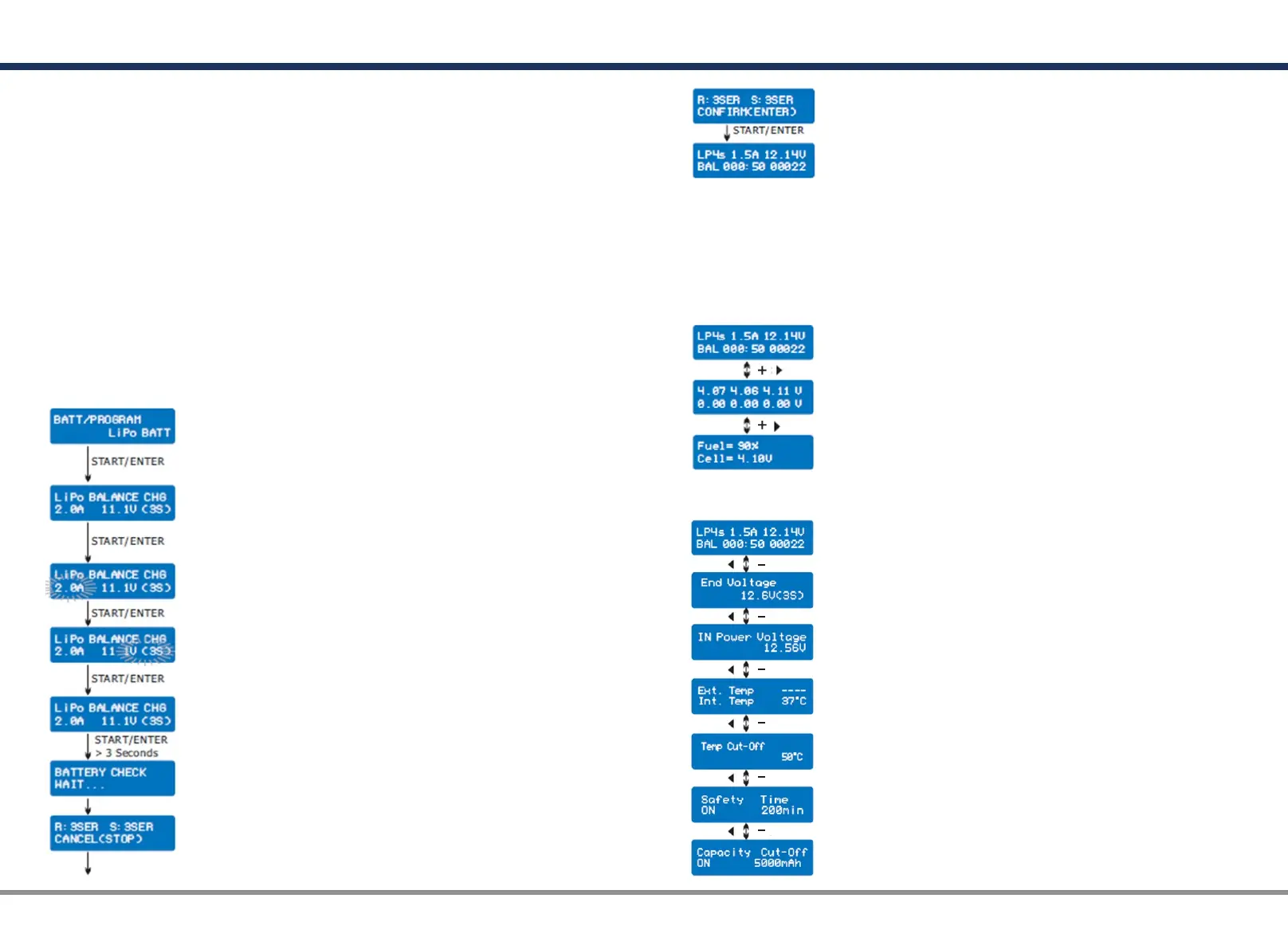

MANUCALLY SETTING UP THE CHARGE PROCESS
● Selecting the Battery Program
Using the ＋/－buttons, select the battery program. Upon selecting the
appropriate program, press the ENTER button to proceed.
● Selecting the Charge Mode
Using the ＋/－buttons, select the desired charging mode, then press
the ENTER button to confirm.
● Battery Setting
Upon pressing the ENTER button, the value selected will begin to blink.
This indicates that the value can be changed using the＋/－buttons.
To confirm and store the value, press the ENTER button. Next, the
number of cells will blink, at which time the ＋/－buttons can be used
to change the number cells. Press the ENTER button to confirm
settings.
● Start the Program
To start the program, press and hold the START button for 3 seconds.
The charger is detecting the number of cells of the battery.
"R" shows the number of cells detected by the charger, and "S" is the
number of cells specified in the previous screen . If both values do not
match, then press STOP to return to the previous screen to check the
number of cells before proceeding.
If the values for "R" and "S" match, then press the START button to
start charging.
● Real-time Status Monitor
Status of the charging process will be displayed on the LCD screen in
real-time, as seen on the image on the left.
GETTING STARTED
Note: In LiHV mode, a message stating "WARNING For LiHV battery only[OK]" will be displayed. Double-
check that the battery is of the LiHV type before pressing the START button to proceed with LiHV
processing mode.
Information Displayed during the Charge and Discharge Process
While charging or discharging, pressing the +/- button will display various information on the LCD
display.
Real-time status display, showing: battery type, battery cell count (s),
charge current (A), battery voltage (V), elapsed time, and charged
capacity (See "Important" note below)
Voltage of each cell in the battery is displayed when the balance cable
is connected.
The charged capacity as a percentage, along with the average cell
voltage is displayed.
Important: While charging or discharging in LiHV mode, the battery type
and number of cells displayed on the top right-hand corner of the status
display will continuously blink. When charging a 2S LiHV battery, the letters
"LH2s" will blink at the top right-hand corner.
Real-time status display
Voltage when the charge process will end.
Voltage of the charger input.
Temperature of the external temperature (requires the temperature
probe, available separately) and internal temperature of the charger.
Temperature setting for the temperature safety cut-off.
Indicates the status of the safety timer, and time in minutes at which
when the charge/discharge will cut-off.
Indicates the status of the capacity safety cut-off feature, and the
capacity at which to cut-off.
GETTING STARTED
