Motor should be mounted in places protected against adverse weather conditions.
2. Safety
3. Motor assembly in a roller tube
Before starting assembling and using the device it is necessary to read the following instruction. The installer must abide by the
standards and the regulations effective in the country, where the device will be mounted and inform users on the conditions of use and
maintenance of the device. Non-compliance with the following instructions can not only present risk to life and health, but also affect the
correct operation of the entire roller shutter. This also results in the loss of warranty rights.
Torque should be suitable to the weight of the armour.
Wires of the motor should be mounted in a way to
prevent condensed water from getting inside and
so that a working roller blind does not damage them.
Check regularly the signs of wear of components
responsible for correct motor operation.
Turn off mains power before performing any activity
connected with installation or maintenance.
Keep contact of the motor with liquids to a minimum.
Do not use tools while placing the motor in a roller
tube.
Be careful not to damage the motor during assembly
of a driver.
Keep an eye on children, so that they do not play with
the motor and its control system. Mobile transmitters
should be kept away from them.
2

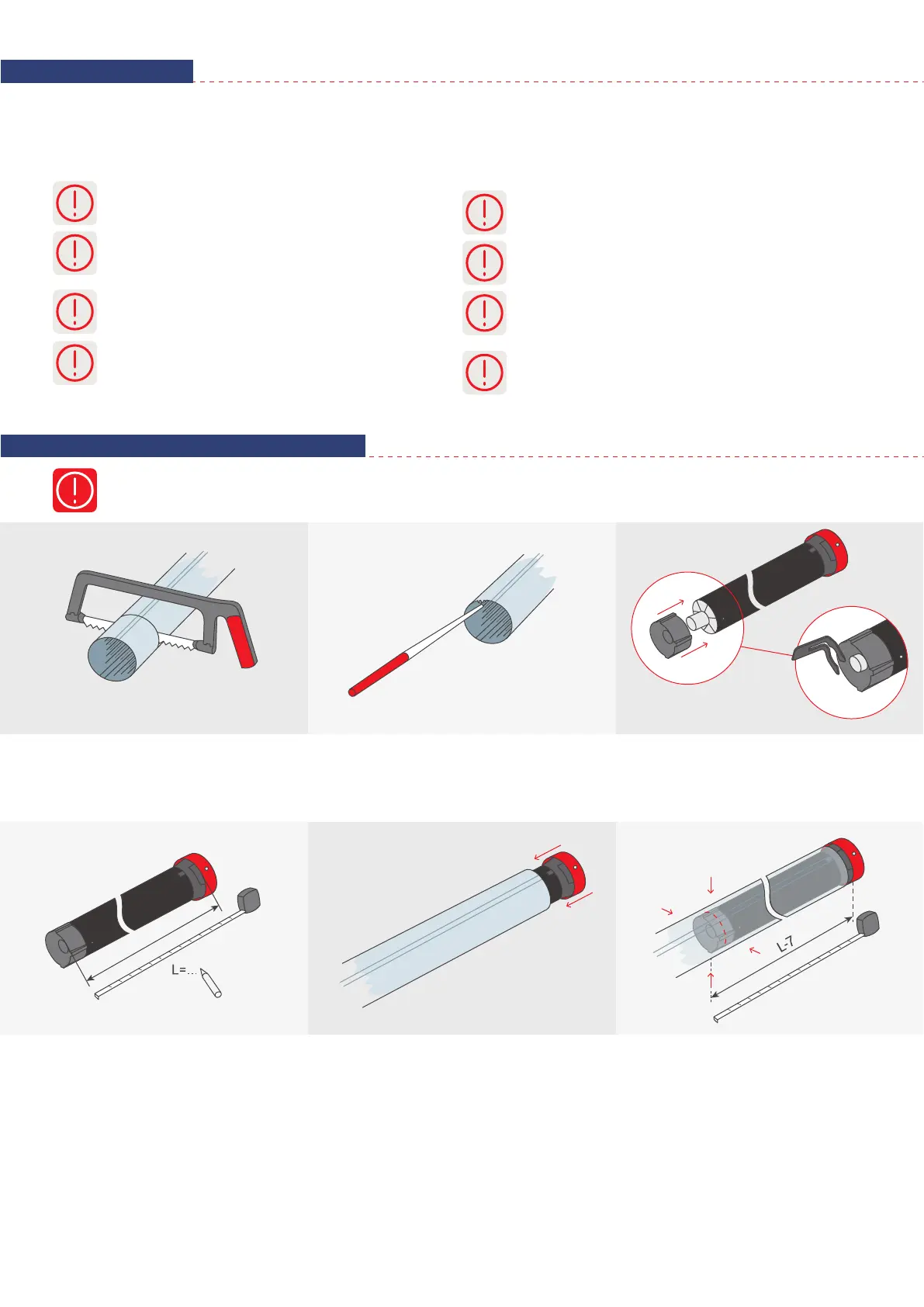

1. Cut the roller tube
to a suitable size.
2. Remove all filings and burrs
from the edges of the roller tube.
3. Mount the adaptation
on the motor.
4. Measure the length L between inner edge of
the cylinder head and the end of the driver.
5. Place the motor in the roller tube in
a way that the edge of the roller tube sticks
to the inner edge of the cylinder head.
Anchor the roller tube to the driver with four
screws or rivets, placed in a distance L-7 mm
from the inner edge of the cylinder head.
