Remember to set the correct direction of the motor work, because the photocell operates only in the down direction.
The neutral motor cable must be connected to the unit otherwise it will not work properly.

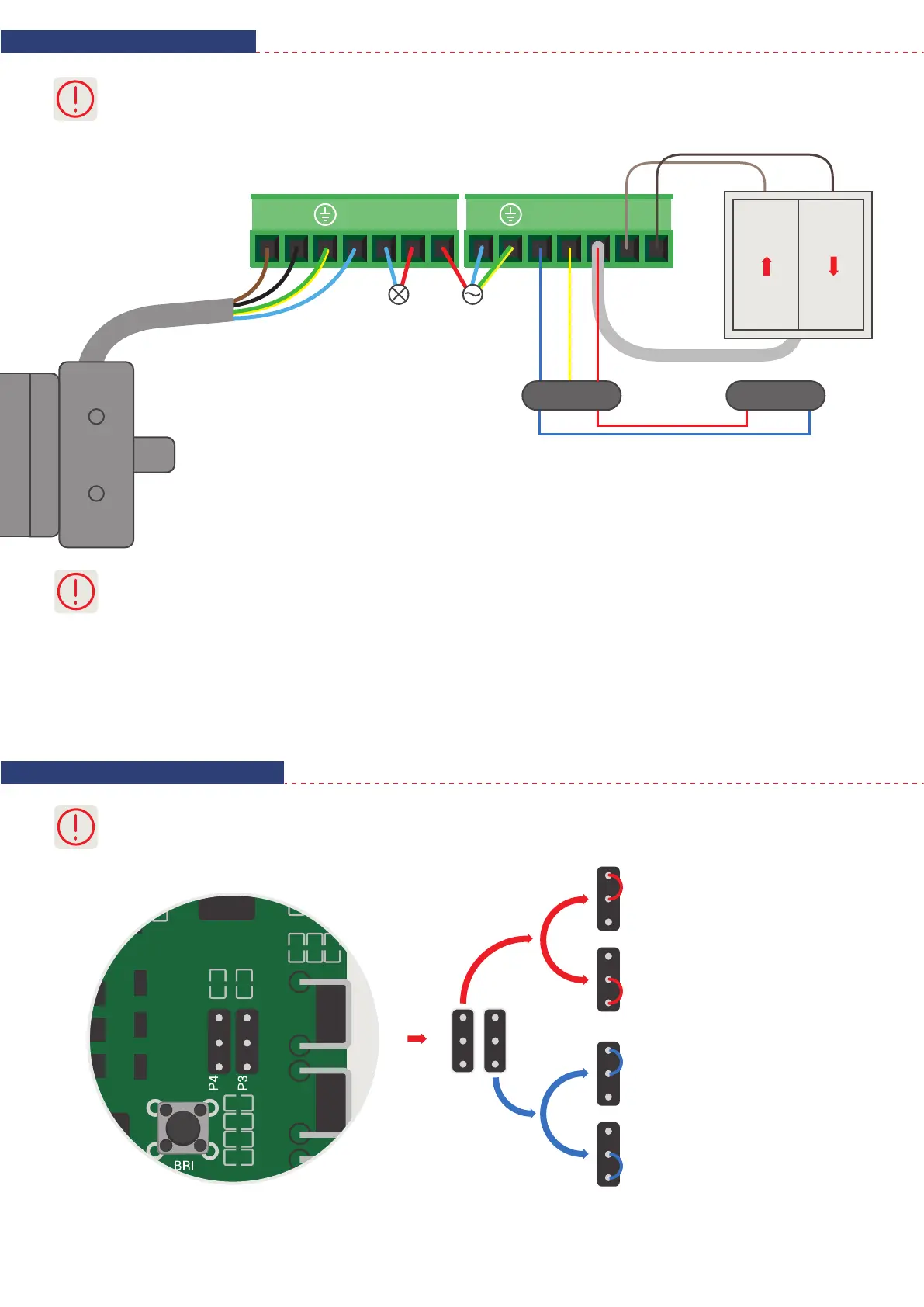

3. Connection
4. Photocell connecting
2
Installation of the tubular motor should be performed by specialists with 1kV or higher SEP-certified electrician's licence
(SEP - Association of Polish Electrical Engineers) or equal license. Device is designed to operate in places shielded from
unfavourable weather conditions. Motor should be installed in accordance with all provisions of regional law and professional
standards. All cables connecting power receiver with electric source should be protected from overload and short-circuits
effects with devices automatically disconnecting power. Device should be powered with a separate source and protected
only with a fast-blow fuse (never slow-blow fuse). Creating electrical system using inadequate fuse may result in loosing
rights under the provisions of warranty. When connecting device to power source with cables with adequate cross-section
should be used. Long-lasting output load capacity table should be the ground for choosing adequate cables.
It is not allowed to connect photocell's signal or power wires.
Configuration of the unit with photocells connected.
motor:
230V / 50Hz
power:
230V / 50Hz
lightning
(max.250W)
L L LR N N N S
GND VCC UP DOWN
photocell photocell
Open
Stop
NO
NC
