York 36 - Cooling Unit Power Circuit 575-3-60 Direct Drive Indoor Blower Diagram

44 pages

To Next Page

To Previous Page

255040-YTG-A-0506

Unitary Products Group 37

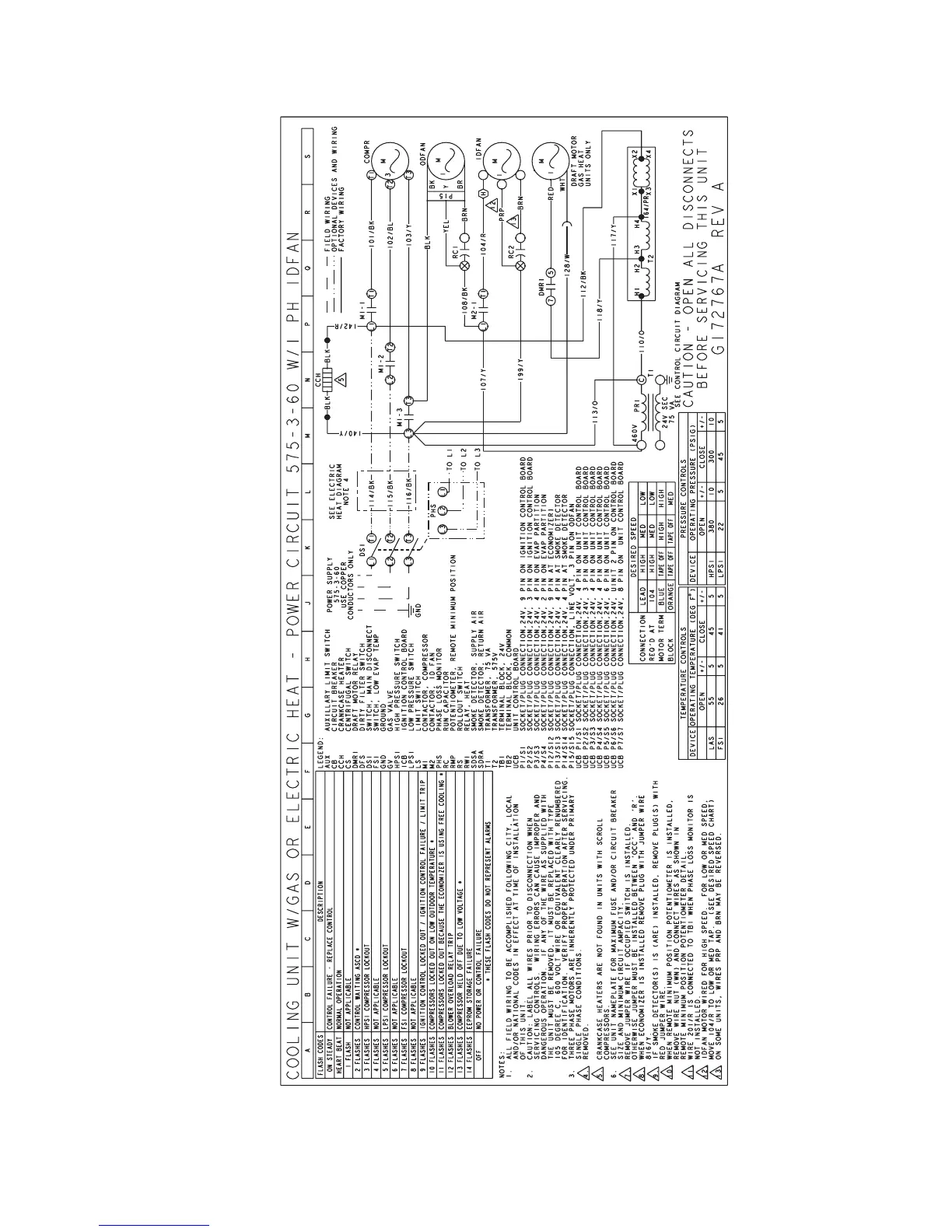

FIGURE 19 - COOLING UNIT POWER CIRCUIT 575-3-60 DIRECT DRIVE INDOOR BLOWER DIAGRAM
