York B500 - Exploded Drawing; Part List

www.yorkfitness.comwww.yorkfitness.com
15

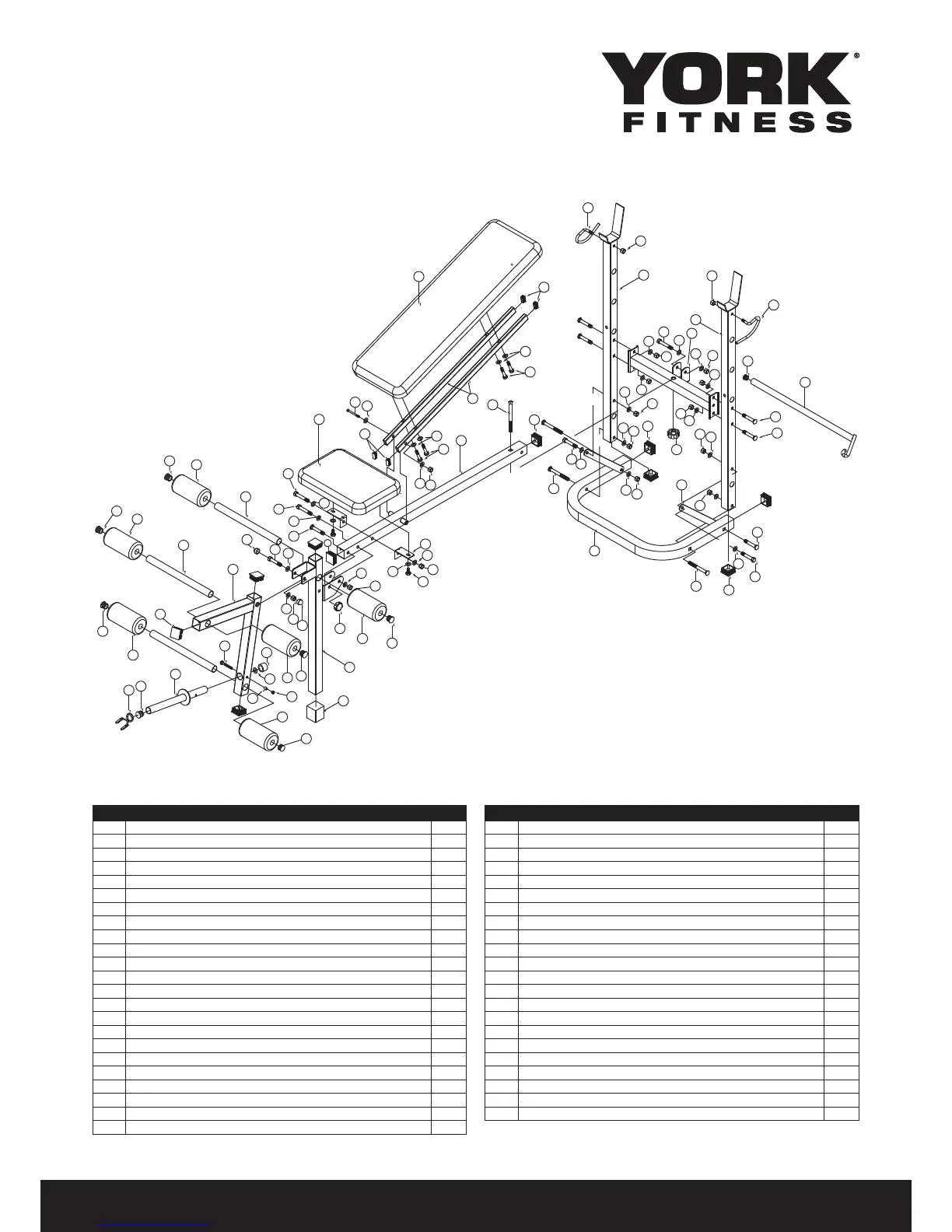

Exploded Drawing / Part List
37
8
34
2
34
8
2
35
9
21
21
32
30
32
30
30
30
32
30
31
37
40
30
22
20
37
12
36
38
30
30
32
32
30
30
32
1
21
22
30
37
20
32
24
5
30
31
30
31
15
32
30
27
26
27
26
41
41
30
29
19
30
32
13
30
32
28
27
21
30
32
38
36
16
32
39
30
6
43
38
36
42
30
25
39
17
33
36
38
11
38
14
23
36
38
37
12
7
36
38
4
10
R
18
44
REF. DESCRIPTION QTY.
1 U-BEND BASEMENT 1
2 UPRIGHT POST 2
4 CROSS BAR 1
5 SPINE POST 1
6 FRONT UPRIGHT POST 1
7 LEG UNIT-WELDED 1
8 BARBELL HOOK 2
9 BACK REST ADJUSTABLE BAR 1
10 BACK REST SUPPORT 2
11 WEIGHT HOLDER TUBE 1
12 LEG FOAM ROLLER TUBE 3
13 L SHAPE FIXING BRACKET 2
14 SPRING COLLAR 1
15 SIDE STRAP 2
16 HAND WHEEL KNOB 1
17 METAL BUSING (D8*D6.8*8.5L) 1
18 BACK REST UPHOLSTERY 1
19 SEAT UPHOLSTERY 1
20 SQUARE NECK BOLT (M10*1.5*90L) 2
21 SQUARE NECK BOLT (M10*1.5*55L) 7
22 HEX BOLT (M10*1.5*55L) 2
23 SQUARE NECK BOLT (M6*1*45L) 1
24 SQUARE NECK BOLT (M10*1.5*95L) 1
REF. DESCRIPTION QTY.
25 HEX BOLT (M10*1.5*70L) 1
26 HEX BOLT (M8*1.25*40L) 4
27 FLAT WASHER (D18*D8.5*1.2T) 6
28 HEX BOLT (M8*1.25*20L) 2
29 HEX BOLT (M10*1.5*110L) 1
30 FLAT WASHER (D20*D11*2T) 22
31 HEX BOLT (M10*1.5*60L) 3
32 NYLON NUT (M10*1.5*10T) 15
33 NYLON NUT (M6*1.0*6T) 1
34 NYLON NUT (M8*1.25*8T) 2
35 ROUND CAP 1
36 FOAM 6
37 SQUARE CAP 10
38 ROUND CAP 7
39 SCREW CAP 2
40 HAND WHEEL KNOB 1
41 SQUARE CAP 4
42 BUFFER 1
43 FOOT CAP 1
44 FLAT WASHER (D24*D13.5*2.5T) 1
SPANNER 2
SPANNER 1
