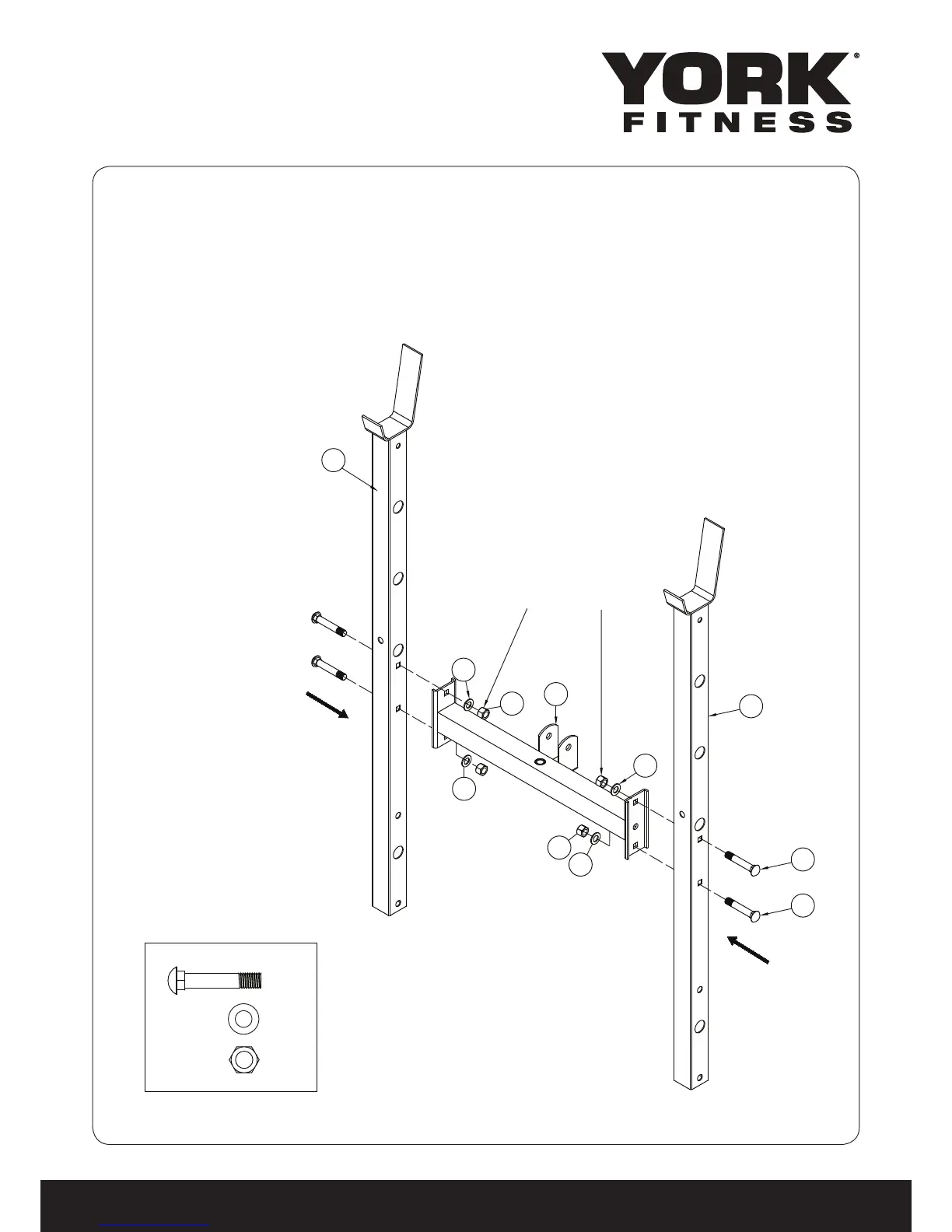

York B500 - Step 1: Cross Support Installation

www.yorkfitness.comwww.yorkfitness.com
7
The nylon locknuts
must be tightened so
that the bolt penetrates
through the nylon insert
in the nut and the nut
locks up against the tubing
Cross Support
2
30
30
30
32
30
2
21
32
4
32 x 4
30 x 4
21 x 4
21
Step 1
• Make sure bracket of CROSS SUPPORT (4) is facing backwards.
