York GFD - G1 FA Upflow Cased Coil Dimensions

036-21145-004 Rev. A (0105)
8 Unitary Products Group
DIMENSIONS
NOTE: (T) indicates models with factory installed thermal expansion valve.

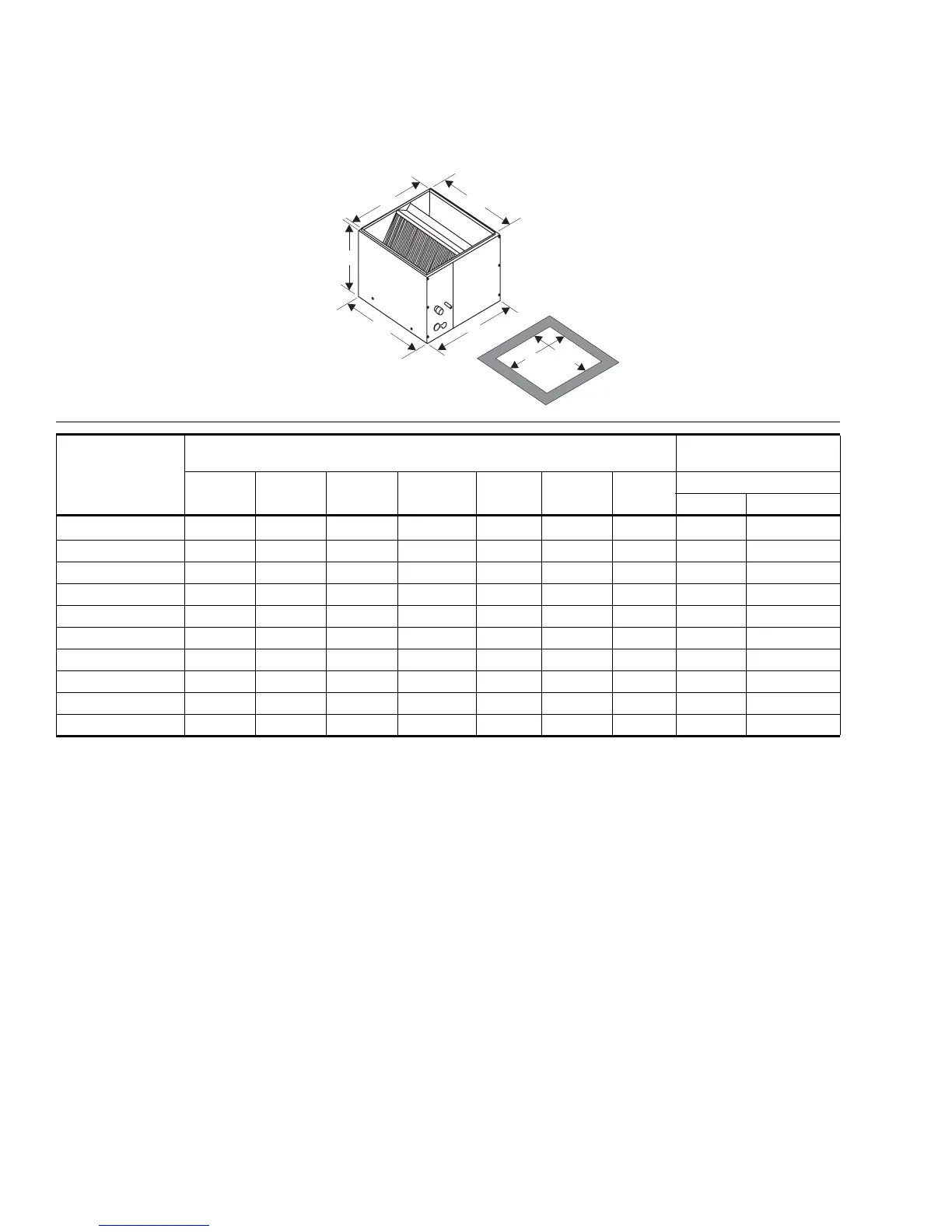

G1FA UPFLOW CASED COIL
C
20-7/8
22
A
B
D
20-3/16
Model
Dimensions — Inches
Refrigerant
Connections
ABC DEFG
Line Size
Liquid Vapor
G1FA024S14(T)
14-1/2 16 13-3/8 13-1/2 - - - 3/8 5/8
G1FA024S17(T) 17-1/2 16 16-3/8 16-1/2 - - - 3/8 5/8
G1FA030S14(T) 14-1/2 18 13-3/8 13-1/2 - - - 3/8 3/4
G1FA036S14(T) 14-1/2 22-1/4 13-3/8 13-1/2 - - - 3/8 3/4
G1FA036S17(T) 17-1/2 19-1/2 16-3/8 16-1/2 - - - 3/8 3/4
G1FA036S21(T) 21 19-1/2 19-7/8 20 - - - 3/8 3/4
G1FA048S17(T) 17-1/2 28-1/4 16-3/8 16-1/2 - - - 3/8 7/8
G1FA048S21(T)(T) 21 24 19-7/8 20 - - - 3/8 7/8
G1FA060S21(T) 21 28-1/4 19-7/8 20 - - - 3/8 7/8
G1FA060S24(T) 24-1/2 28-1/4 23-3/8 23-1/2 - - - 3/8 7/8
