813517-YTG-E-0114
10 Johnson Controls Unitary Products

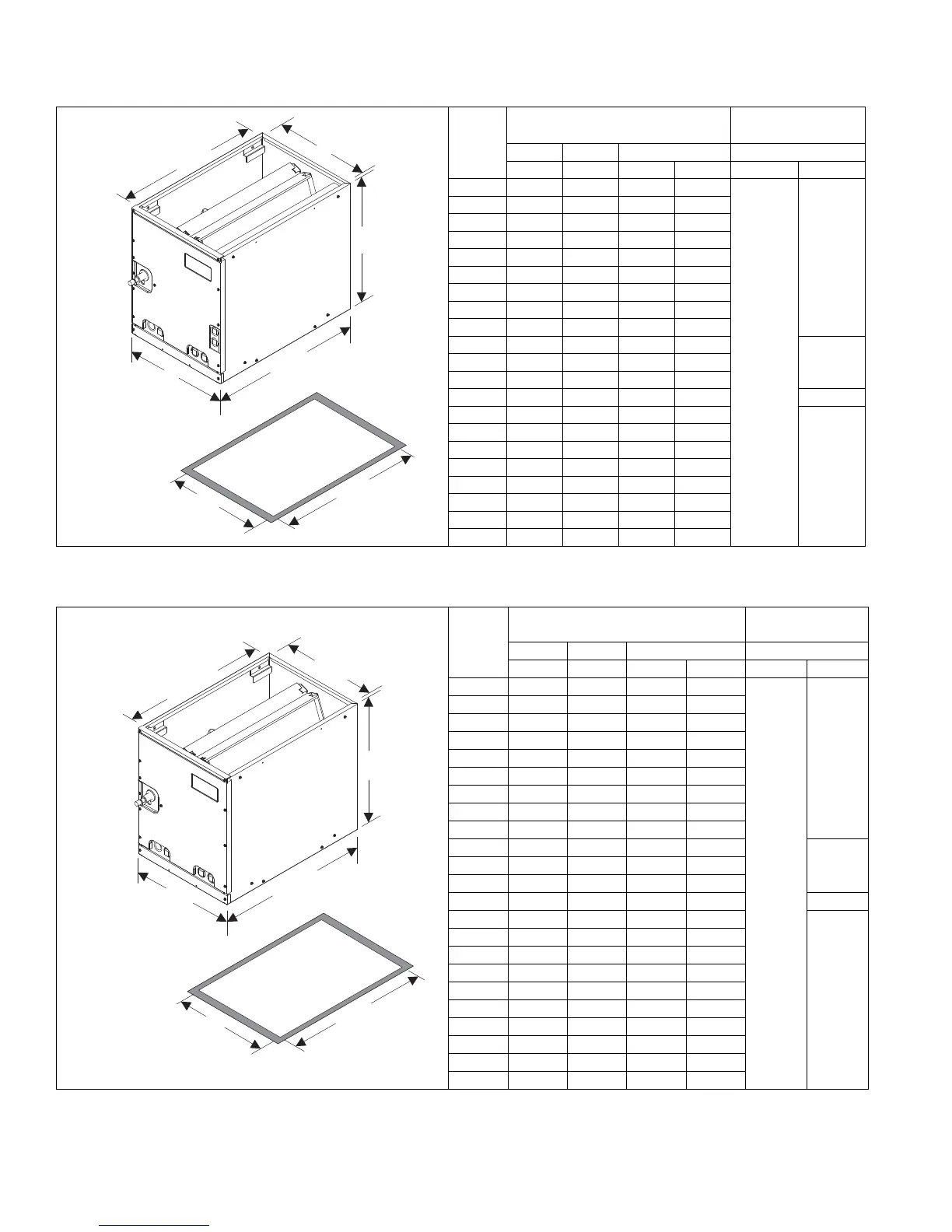

DIMENSIONS
Models
Dimensions
1
Refrigerant
Connections
2
Height Width Opening Widths Line Size
ABCDLiquidVapor
MC18A 22 14-1/2 13-3/8 13-1/2
3/8
3/4
MC18B 22 17-1/2 16-3/8 16-1/2
MC24A 26-1/2 14-1/2 13-3/8 13-1/2
MC24B 26-1/2 17-1/2 16-3/8 16-1/2
MC30A 26-1/2 14-1/2 13-3/8 13-1/2
MC30B 26-1/2 17-1/2 16-3/8 16-1/2
MC32A 22 14-1/2 13-3/8 13-1/2
MC35B 22 17-1/2 16-3/8 16-1/2
MC35C 22 21 19-7/8 20
MC36A 26-1/2 14-1/2 13-3/8 13-1/2
7/8MC36B 26-1/2 17-1/2 16-3/8 16-1/2
MC36C 26-1/2 21 19-7/8 20
MC37A 26-1/2 14-1/2 13-3/8 13-1/2 3/4
MC42B 32 17-1/2 16-3/8 16-1/2
7/8
MC42C 32 21 19-7/8 20
MC43B 26-1/2 17-1/2 16-3/8 16-1/2
MC43C 26-1/2 21 19-7/8 20
MC48C 32 21 19-7/8 20
MC48D 32 24-1/2 23-3/8 23-1/2
MC60D 32 24-1/2 23-3/8 23-1/2
MC62D 36 24-1/2 23-3/8 23-1/2
1 All dimensions are in inches.
2 Refrigerant line sizes may require larger lines for extended line lengths. See Application Data part number 247077.
20 1/4”
D
20 3/8”
(Opening)
C
A
B
21 1/2”
BOTTOM OPENING
DIMENSIONS
-
-
-
Models
Dimensions
1
Refrigerant
Connections
2
Height Width Opening Widths Line Size
ABCDLiquidVapor
FC18A 18 14-1/2 13-3/8 13-1/2
3/8
3/4
FC18B 18 17-1/2 16-3/8 16-1/2
FC24A 22 14-1/2 13-3/8 13-1/2
FC24B 22 17-1/2 16-3/8 16-1/2
FC30A 22 14-1/2 13-3/8 13-1/2
FC30B 22 17-1/2 16-3/8 16-1/2
FC32A 20 14-1/2 13-3/8 13-1/2
FC35B 20 17-1/2 16-3/8 16-1/2
FC35C 20 21 19-7/8 20
FC36A 24-1/2 14-1/2 13-3/8 13-1/2
7/8FC36B 24-1/2 17-1/2 16-3/8 16-1/2
FC36C 24-1/2 21 19-7/8 20
FC37A 24-1/2 14-1/2 13-3/8 13-1/2 3/4
FC42B 28 17-1/2 16-3/8 16-1/2
7/8
FC42C 28 21 19-7/8 20
FC43B 24-1/2 17-1/2 16-3/8 16-1/2
FC43C 24-1/2 21 19-7/8 20
FC48C 28 21 19-7/8 20
FC48D 28 24-1/2 23-3/8 23-1/2
FC60C 28 21 19-7/8 20
FC60D 28 24-1/2 23-3/8 23-1/2
FC62D 32 24-1/2 23-3/8 23-1/2
FC64D 36 24-1/2 23-3/8 23-1/2
1 All dimensions are in inches.
2 Refrigerant line sizes may require larger lines for extended line lengths. See Application Data part number 247077.
BOTTOM OPENING
DIMENSIONS
21-1/2”
20-1/4”
C
(Opening)
20-3/8”
(Opening)
B
A
D
