York YECFC - Page 7

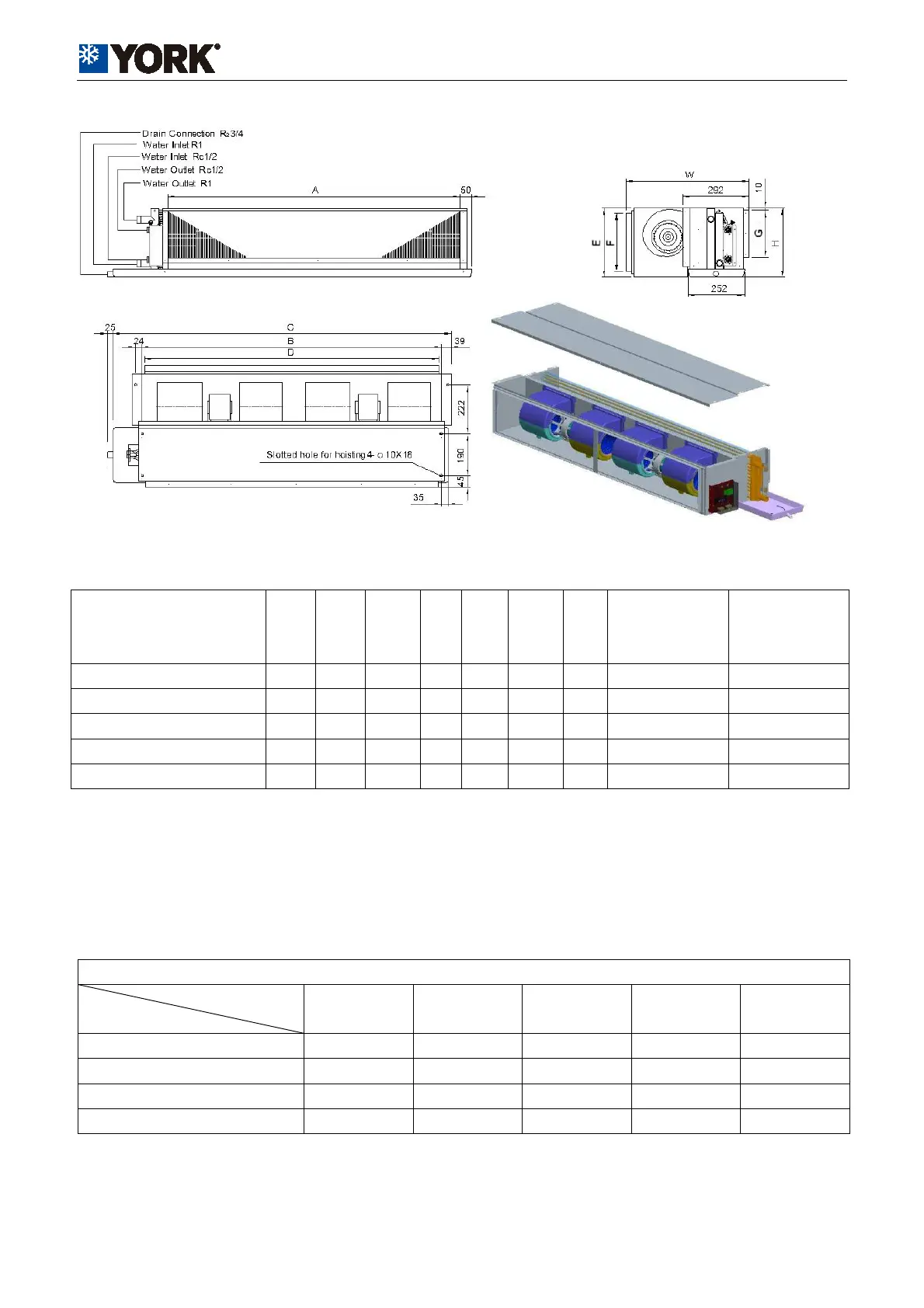

Overview of product
5
04&05 CR Model Cooling and Heating
Model A B C E W H G
Plenum Conn
Dim
(mm x mm)
Return Plenum
Conn Dim
(D x F)
YECFC-01CB-3(4/A/C) 725 755 1030 233 558 233 130 775 x 130 750 x 190
YECFC-02CB-3(4/A/C) 1005 1035 1310 233 558 233 130 1055 x 130 1030 x 190
YECFC-03CB-3(4/A/C) 1505 1535 1810 233 558 233 130 1555 x 130 1530 x 190
YECFC-04CB-3(4/A/C) 1605 1635 1910 317 558 317 214 1655 x 214 1630 x 274
YECFC-05CB-3(4/A/C) 1820 1850 2125 317 558 317 214 1870 x 214 1845 x 274
Notes:
1. Facing the air outlet, the left type unit has pipes on the left side, right type unit opposite.
2. Filter frame is provided as standard. Filter media is provided as an option.
3. Chiller water inlet/outlet connection size for 04/05 4/C Rows unit is R1". For other unit, the chiller water inlet/outlet connection
size is Rc3/4".
4. .Inlet/outlet hot water pipe diameter for 4 pipes unit is Rc 1/2".
Unit Weight, kg
Model
Rows
01 02 03 04 05
3 Rows 20.8 24.8 33.4 43.8 52.8
4 Rows 21.5 25.7 34.7 47.9 54.9
3+1 Rows 21.5 25.7 34.7 47.9 54.9
4+1 Rows 22.3 27.0 36.3 49.1 57.8
Notes: Unit weight is without water content.
