# Part# Description qty

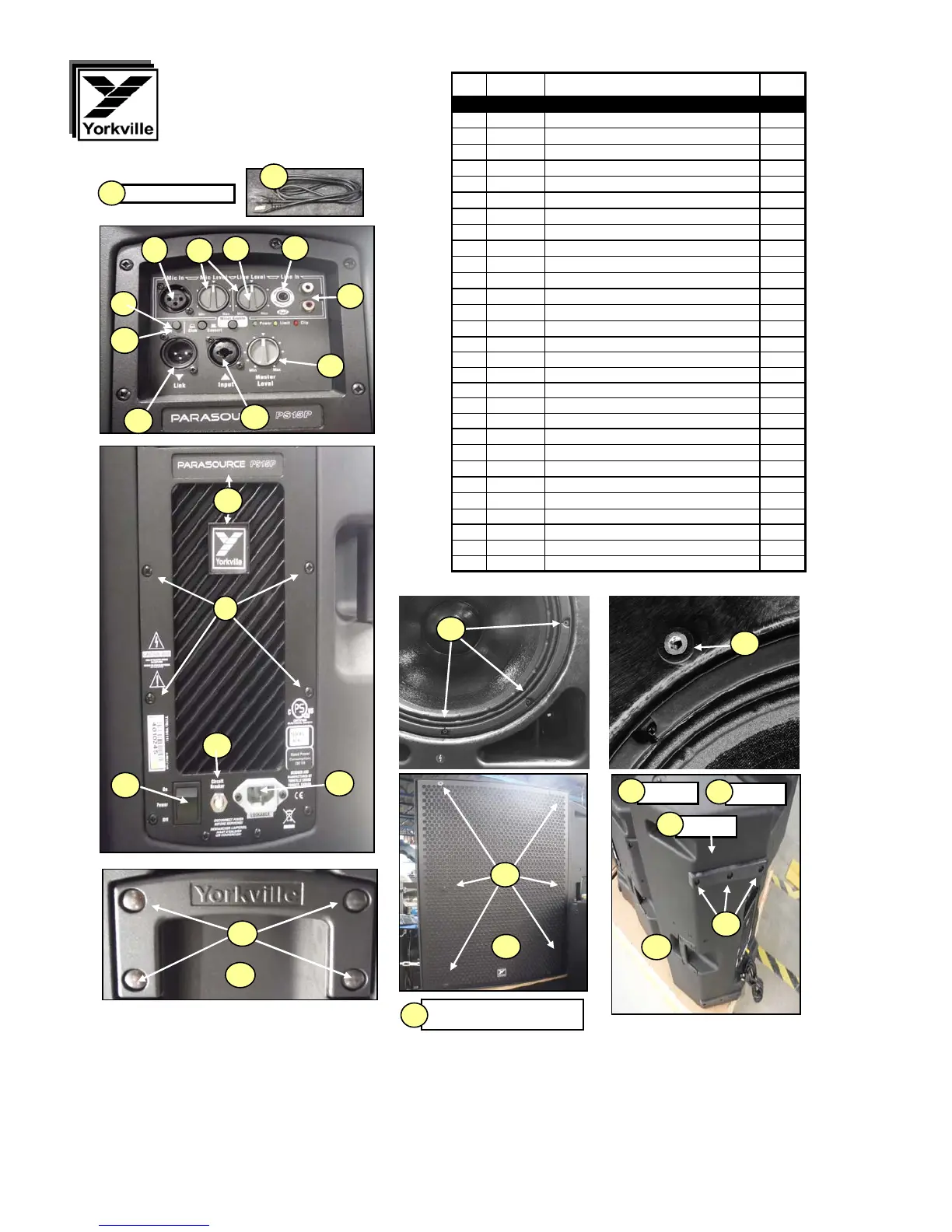

Labeled Components
1 Z9914 PSAMP CAST CHASSIS 1
2 3074 POWER CORD 3M V-LOCK (N.A) 1
3 9417SS #8 X 3/4 SS PAN QUAD PLASTITE BO&W 14
4 3466 RCA DUAL PCB MT VERT GOLD 24MM 1
5 4063 1/4IN ISO JCK PCMT VT STER RT SWT 1
6 4459 _10K B LIN 9MM DET HI TORQ P32 2
7 8653 LOW PROFILE POINTER AT 12 KNOB 3
8 4010 XLR FEML PCB MT VERT 24MM AA-SERIES 1
9 3522 DPDT MINI PC VERT SNP ALT 3
10 8637 ROUND PUSH BUTTON 1/4" BLK 24MM 3
11 4100 XLR MALE PCB MT VERT 1
12 4090 1/4IN &XLR PCB MT VERT COMBO NCJ6-V 1
13 10010 CAST HANDLE PS10P/PS12P/PS15P 2 or 3
14 8206 YORKVILLE LOGO METALPHOTO 1
15 4184 DPST ROKR SW QUIK 250" AC/PWR IEC6 1
16 4088 RECEPTACLE:V-LOCK INLET 1
17 Z1479 YORKVILLE LOGO 1.23 X 1.23 LEXAN 1
18 8118 PS10P SKID PAD 1/2"X 1 1/4"X 5 7/8" 2
19 8119 PS12P SKID PAD 1/2"X 1 1/4"X 6 3/4" 2
20 8120 PS15P SKID PAD 1/2"X 1 1/4"X 9 1/2" 2
21 8116 RUBBER FOOT 0.750"X2.500 PS SERIES 20
22 8117 RUBBER FOOT 0.620"X1.500" PS SERIES 2
23 8935 1/4-20 X 23MM JOINT CONN. BOLT B/O 6
24 2491 10.00 AMP CIRCUIT BREAKER TE 1
25 9421SS SPEAKER SCREW 8
26 8938 INSERT NUT 6
27 8483 ADAPTOR,SPEAKER STAND,METAL,BLACK 1
28 9422SS 1/4-20X1X1/4 SS CARRIAGE BOLT 20 tot
2
14
8
6
7
5
4
9
10
11
12
6
24
3
17
PS10P•PS12P•PS15P
Paraline Powered
Speaker Enclosure
CAST CHASSIS
1
25
23
PS10P
18
PS12P
19
PS15P
20
28
13
13
28
15
16
26
Speaker Stand Adapter
Not Shown
27
Page 1 SERVICE-QuickGuide-PS10 12 15P 1v0
