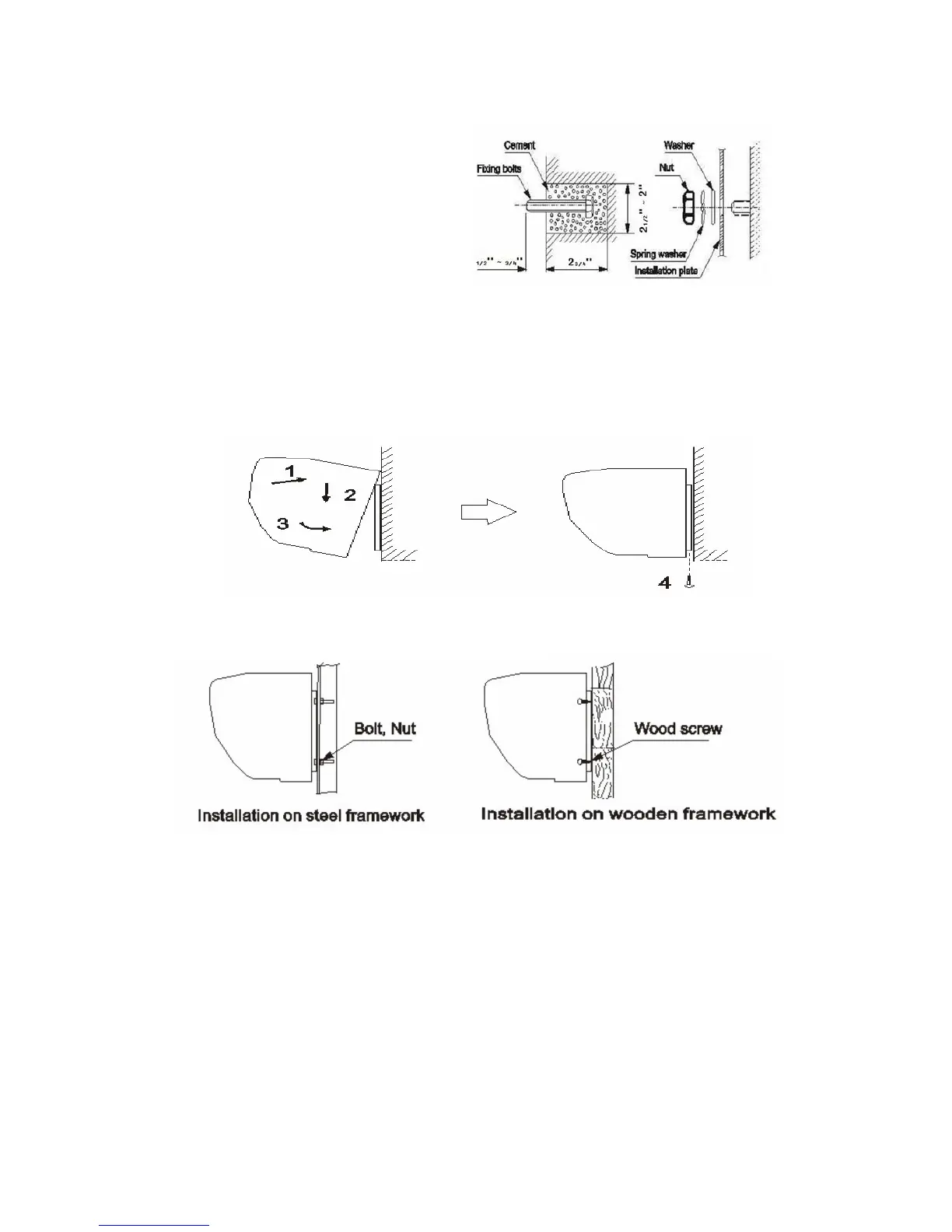

b. Install INSTALLATION PLATE on the wall:
- To fix position of installation.
- Insert bolts and fill with cement for
consolidation.
- After cement solidifies, Install
INETALLATION PLATE on bolts
and fasten it with washers, spring
washers and nuts.
(See diagram on the right)
- To ensure INSTALLATION PLATE is fixed securely.
c. Install BODY (Hang up BODY onto the INSTALLATION PLATE,
check to ensure it is proper and secure, and then tighten the fixing screws).
(See following diagram)
6) Other installation methods.(See following diagram)
7) Use more than one piece of air curtain with appropriate length to fill up the width of the
doorway.
8) The recommended distance between 2 adjacent sets of air curtain is to be 1-2 inch.
5. OPERATION INSTRUCTIONS
1) Switch on the power.
2) Press the key stoke of OFF, LO, HI on the switch to set speed at OFF, LOW and HIGH.
Press relevant function key stoke for remote Controlling unit.
3) Adjust AIR DEFLECTOR to preferred positions. (See following diagram)
