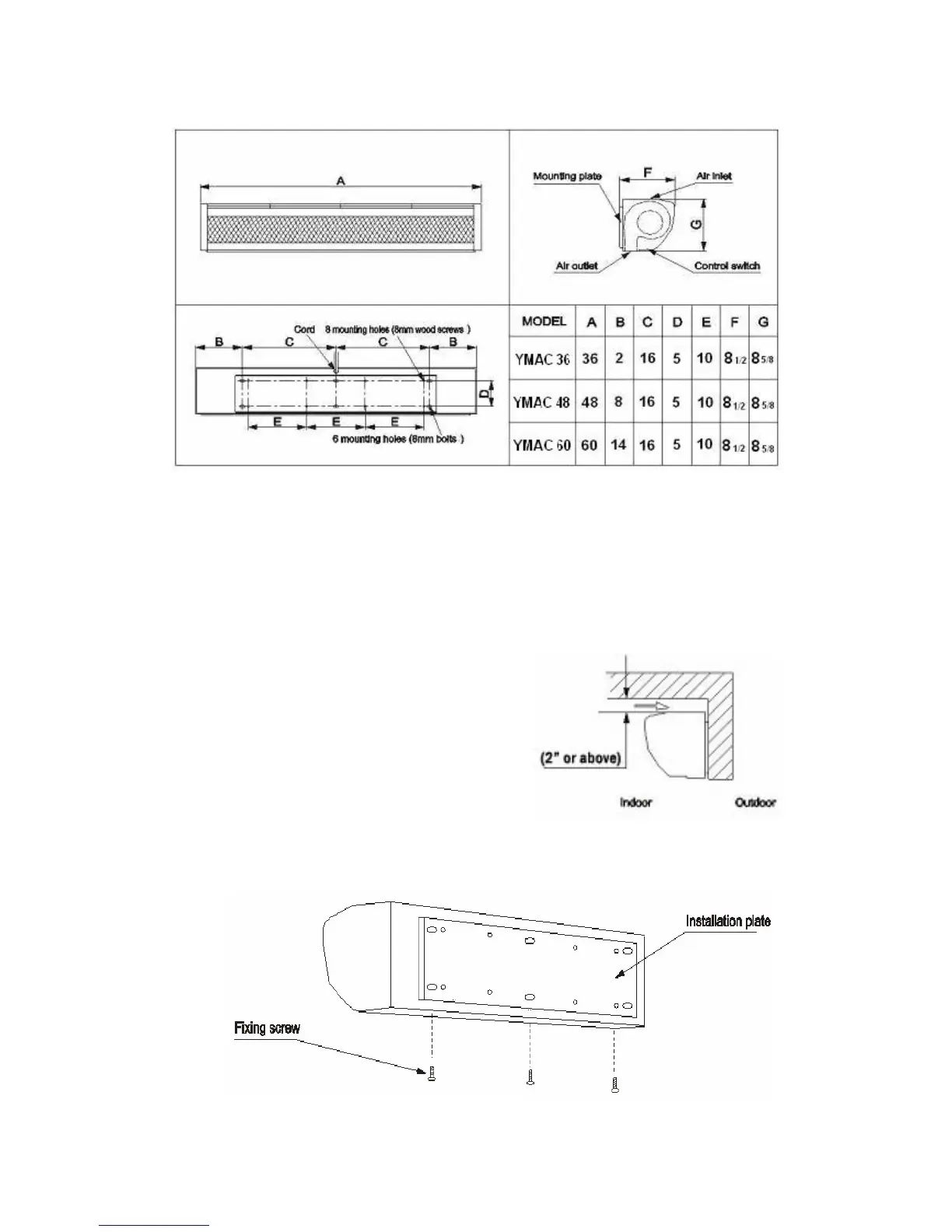

3: INSTALLATION DIMENSIONS
[Inch]
4: INSTALLATION METHOD
WARNING: INSTALLATION & ELECTRICAL CONNECTION MUSTBE PERFORMED
BY QUALIFIED TECHNICIAN
1) Accessories:
6sets of (M8×60L) Fastening bolt, Washer, Spring washer, and (M8) Nut
2) Check to ensure the voltage /frequency on rating
label is complied with the local power source
before use.
3) Follow the right diagram for installation position.
4) Coverage height: 99 Inches
(for horizontal air curtain installation).
Installation on concrete wall:
a. Take down INSTALLATION PLATE (Unscrew the fixing screws down the REAR and
take down INSTALLATION PLATE). See Following diagram:
To Next Page
