Young Electric 10104098 - Page 2

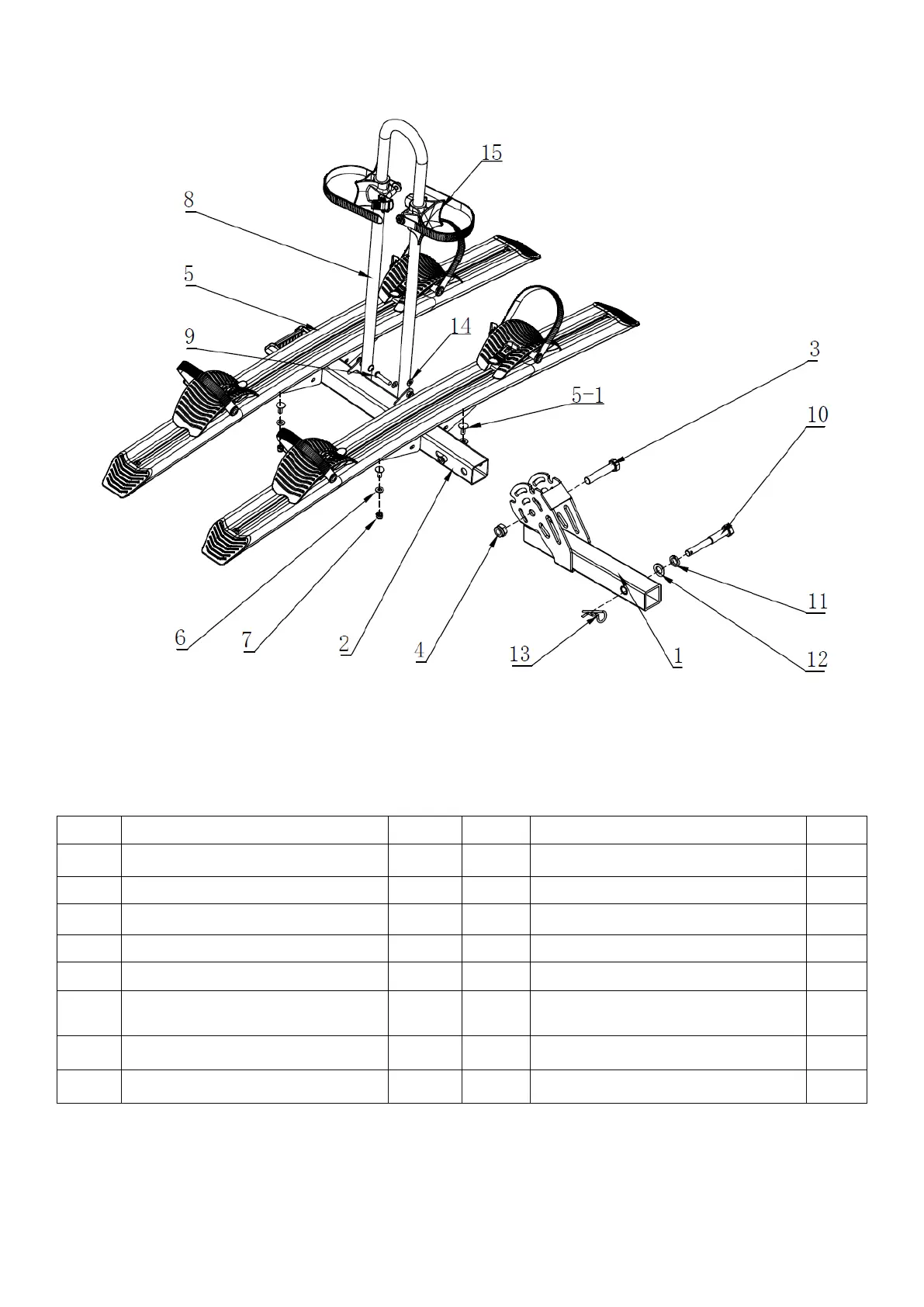

Diagram
Parts List
Part #
Description
Qty
Part #
Description
Qty
1
Folding Connector
1
8
U-Shaped Tube
1
2
Supporting Tube
1
9
M8x40 Hexagon Bolt
2
3
M16x80 Hexagon Bolt
1
10
M16 Shockproof Bolt
1
4
M16 Lock Nut
1
11
φ16 Spring Washer
1
5
Crossbeam
2
12
φ16 Flat Washer
1
5-1
M8x20 Carriage Bolt
(pre-installed)
4
13
φ3.8 Pin
1
6
φ8 Flat Washer
4
14
φ8 Nylon Washer
4
7
M8 Lock Nut
6
15
Block
2
