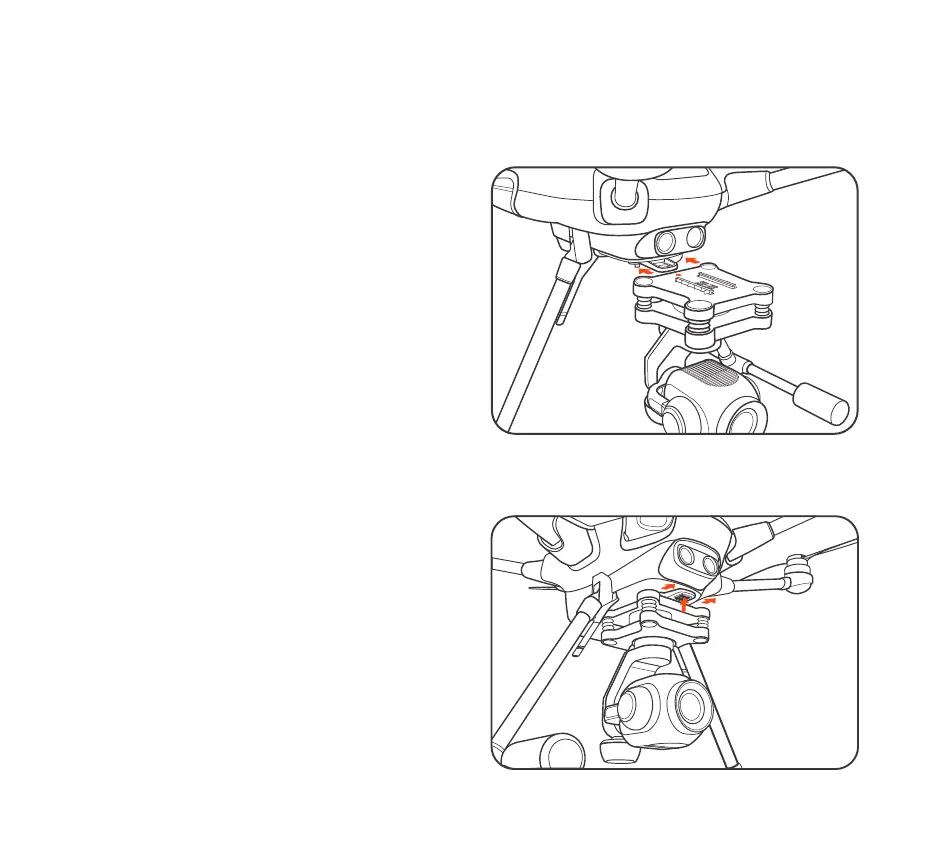

Assembling
Step 1.
Find the arrow printed on the top of the damping
plate, which indicates the correct direction for installa-
tion.
Step 2.
Slide the E90 in the indicated direction all the way into
the mounting slot, until the E90 is secured by the
locking clip.
Step 3.
Remove the lens protector.
Step 4.
Insert the Micro SD card.
Gimbal Installing
Disassembling
Step 1.
Find the locking clip which is located in front of the
mounting slot.
Step 2.
Press and hold the locking clip and push the E90
forward (the direction shown by the arrow).
