ZALMAN GigaMax Series User Manual

10
AC Input range
Voltage 200~240VAC ±10%
Vout
Output load rating
Combined
power
Frequency 50~60Hz ±5% Imin Imax Ipeak
AC Input current 230VAC 6A
+3.3V 0.1A 20A
120W
750W
+5V 0.2A 20A
PFC Type Active PFC +12V 0.2A 62A 744W
Power factor
correction
Max 99% -12V 0.0A 0.3A 3.6W
Inrush current limit
(@ Cold start at 25℃)
230VAC Max 50A
+5VSB 0.0A 2.5A 12.5W
Ambient temperature
E󰘲ciency Max 85% @ 230VAC, Typical load Operation 0 ~ +40℃
DC Output voltage
regulation
Vout Regulation range
At
full
load
Storage -40 ~ +70℃
+3.3VDC ±5% +3.14 ~ +3.47V Ambient humidity
+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 85% RH
+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95% RH
-12VDC ±10% -10.8 ~ -13.0V Dimensions 150(L) X 140(W) X 86(H) mm
+5VSB ±5% +4.75 ~ +5.25V Weight 2.09kg
DC Output ripple
& Noise
Vout Standard range
At
full
load
Protection funtions
+3.3VDC 50mV Over-Current Protection (OCP)
+5VDC 50mV Over-Voltage Protection (OVP)
+12VDC 120mV Over-Power Protection (OPP)
-12VDC 120mV Over-Temperature Protection (OTP)
+5VSB 50mV Under-Voltage Protection (UVP)
Short-Circuit Protection (SCP)

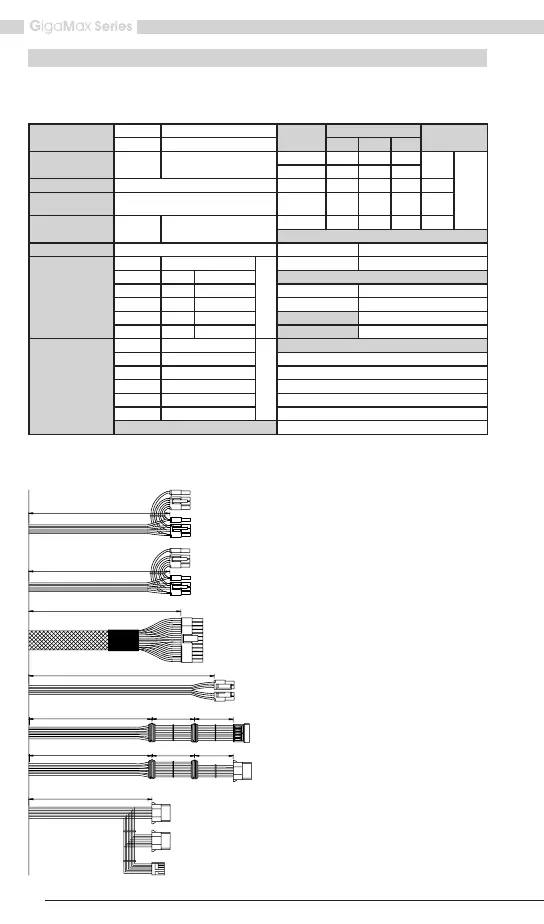

4. ZM750-GVⅡ Speci󴐖cations
1) Electrical & Physical Specifications
2) Cable Specifications
PCI Express3
Power connector
PCI Express1
Power connector
PCI Express4
Power connector
PCI Express2
Power connector
Mainboard
Power connector
CPU
Power connector
S-ATA
Power connector
S-ATA / Peripheral
Power connector
IDE1
Power connector
IDE2
Power connector
FDD
Power connector
150mm
150mm
150mm
150mm
650mm
550mm
500mm
500mm
400(±30)mm
400(±30)mm
400(±30)mm
