5. Make sure that there are no residues of food or
soil in or around the edge of the sump.
6. Put back in place the flat filter (A). Make sure
that it is correctly positioned under the 2
guides.
7. Reassemble the filters (B) and (C).
8. Put back the filter (B) in the flat filter (A). Turn it
clockwise until it locks.
CAUTION! An incorrect position of
the filters can cause bad washing
results and damage to the appliance.

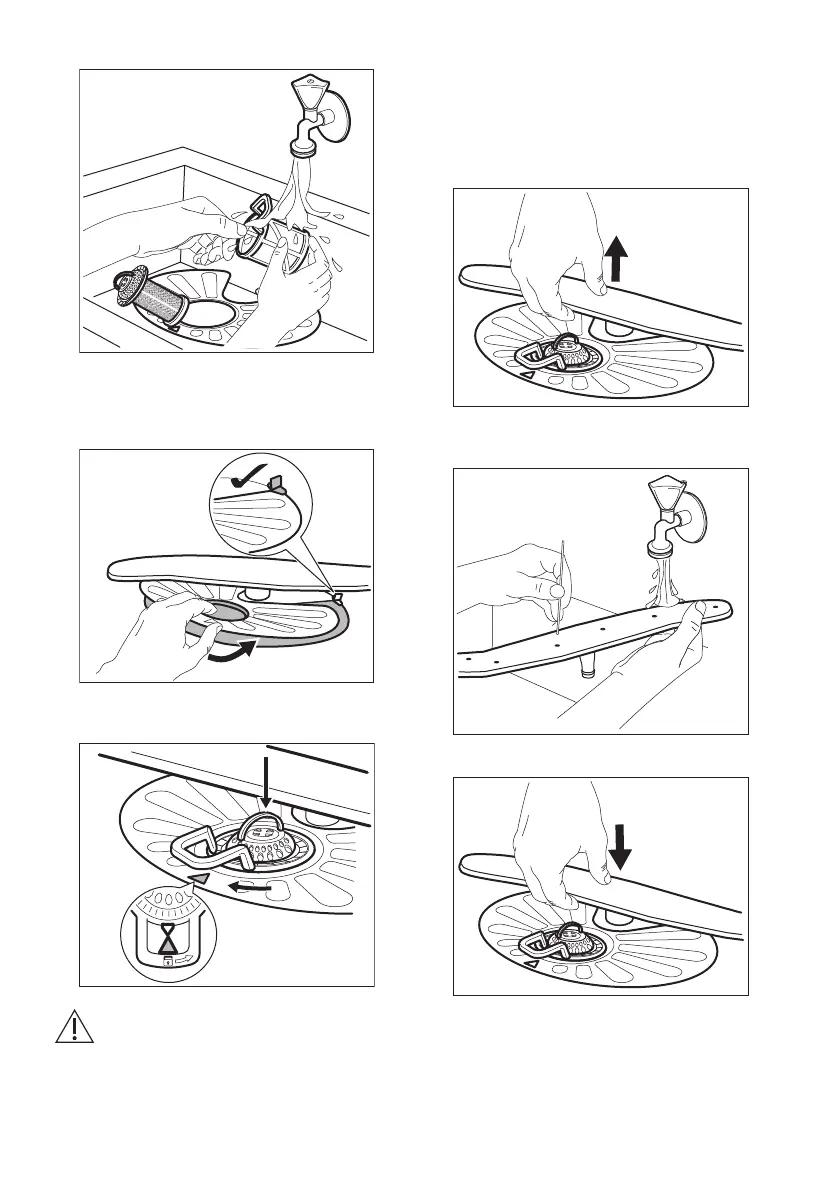

CLEANING THE LOWER SPRAY ARM
We recommend to clean the lower spray arm
regularly to prevent soil from clogging the holes.
Clogged holes can cause unsatisfactory washing
results.
1. To remove the lower spray arm, pull it upwards.
2. Wash the spray arm under running water. Use
a thin pointed tool, e.g. a toothpick, to remove
particles of soil from the holes.
3. To install the spray arm back, press it
downwards.
16
