zapco EQ30-SL User Manual

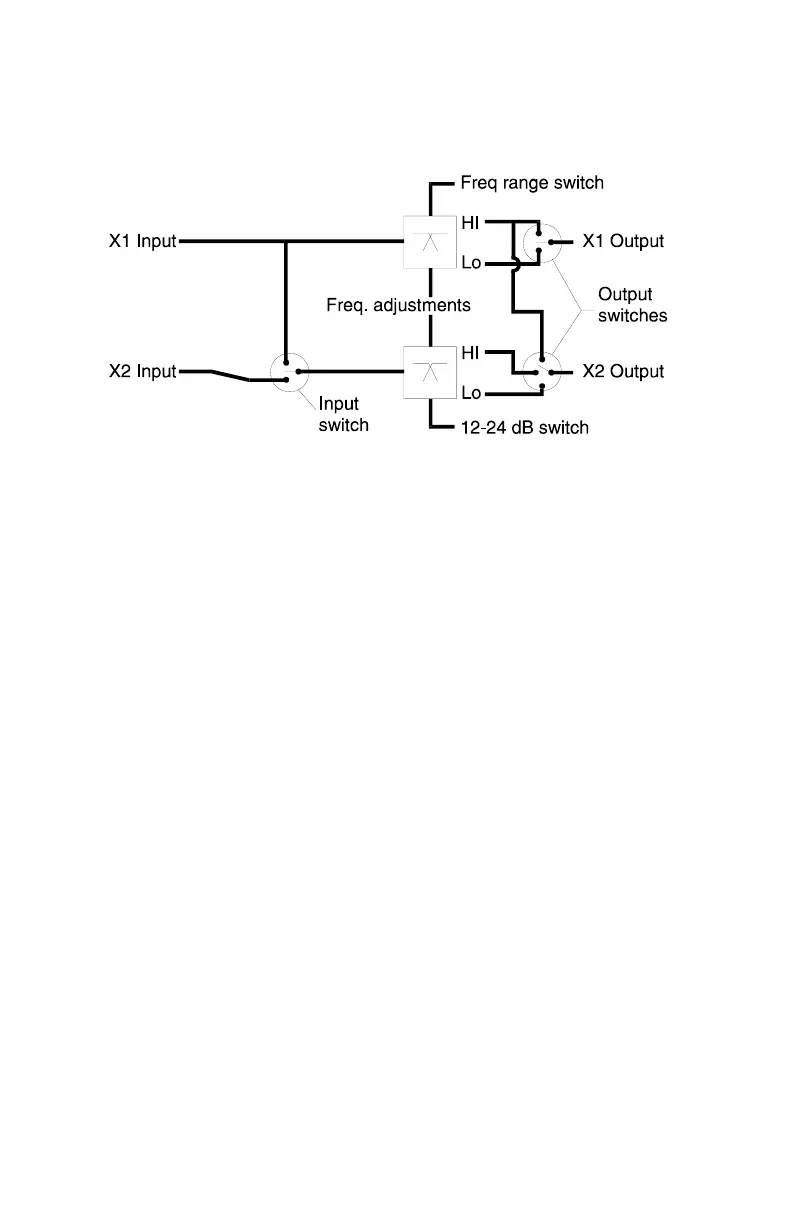

SLX-2 Functional Diagram
Notes:
• 24dB mode is only valid on X2’s output - lowpass mode only. X2’s
output in this mode is automatically mono.
• Frequency range switch only effects X1’s outputs - but can effect X2’s
output when output switch is set to “X1-HI”.
• When X2 output is set to “X1-HI”, the X1 FREQ control effects both
outputs. The X2 FREQ control is deactivated in this mode.
• X2 input in not functional when the “Input Mode” switch is in the “2CH”
position. X2 input only activated by engaging the “4CH” mode.
• Either output can be selected as highpass or lowpass. They can be set
the same or opposite of each other.
• One output can be fed into the opposite input. When doing this, you
must engage the 4CH input mode. This feature allows the capability of
“1-way” 24 dB or bandpass configurations.
76
