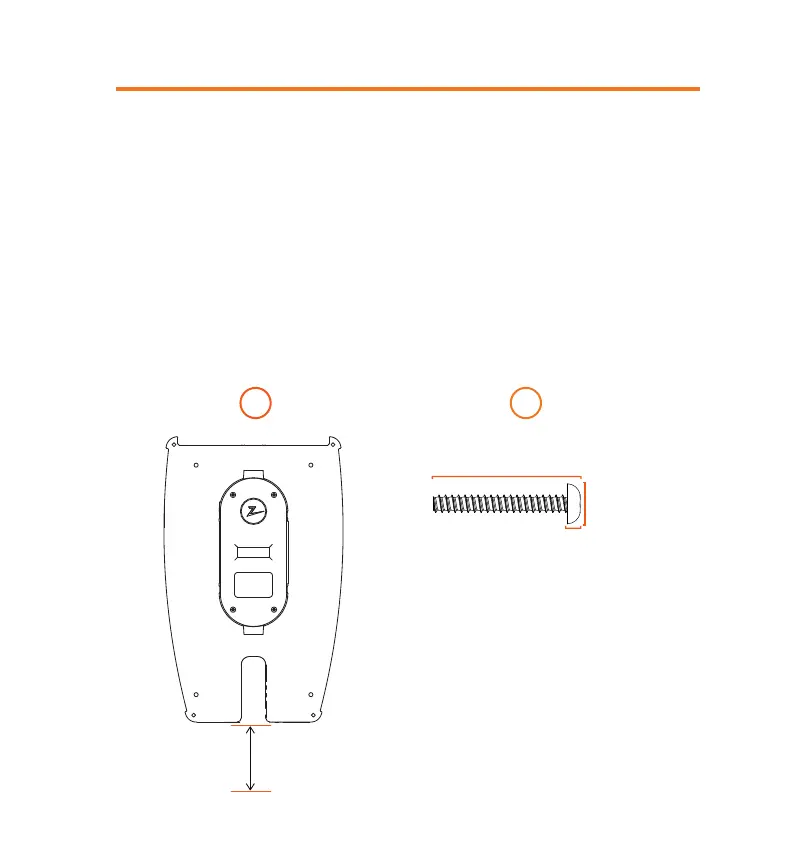

Installation of the back panel
1. The back panel should be installed 90-130 cm above ground level on a
at surface in a well-ventilated area.
2. Use four screws that are at least 25 mm long and appropriate for the
wall structure. The screw head must have a diameter of around 11 mm
and be max. 6 mm high.
3. Use only the pre-drilled holes.
90-130cm
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
07.12.2017
1/1
ZapCharger Pro montering
Fredrik Ostrem
Min.25mm
Maks. 11mm
Maks. 6mm
