Zebra TC55 User Manual

Replacing the 2,940 mAh Battery
To replace the 2,940 mAh battery:
1. Press the Power button until the menu displays.
2. Touch Power off.
3. Touch OK.

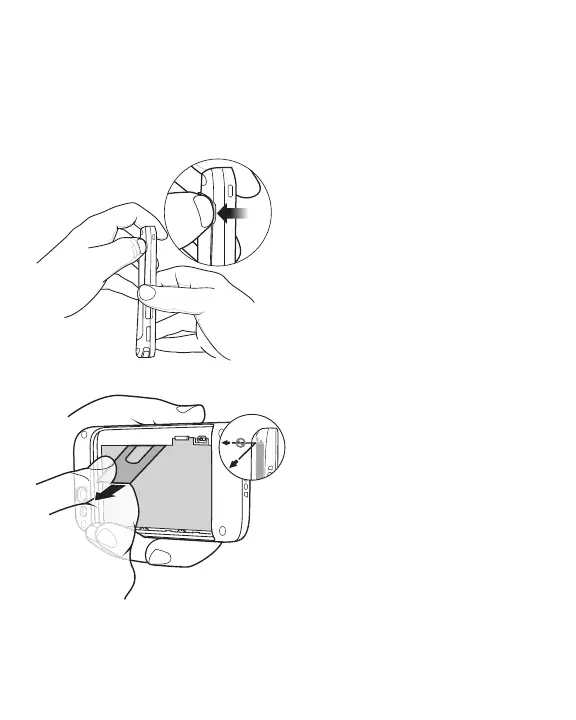

4. Place thumbnail at battery cover notch and lift the battery cover.
5. Pull the battery tab down at a 45° angle.
6. Remove the battery out of the battery compartment.
7. Align the three tabs on the bottom of the replacement battery with the three slots
in the battery compartment.
8. Press the battery down and rotate until it locks into place.

Zebra TC55 Specifications

General

Display diagonal	4.3 \
Display resolution	800 x 480 pixels
Display number of colors	-
Internal memory	1 GB
Internal memory type	RAM
Total storage capacity	8 GB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	32 GB
Processor frequency	1.5 GHz
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 85 %
Battery capacity	4410 mAh
Operating system installed	Android 4.4.3
Data network	3G, HSPA+
Wi-Fi standards	802.11a, 802.11g, 802.11b, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Security algorithms	WPA2, AES, TKIP, MSCHAPv2, PEAP, WEP, WPA, EAP-TLS, EAP-TTLS
Product color	Black, Silver
Barcode reader	No
International Protection (IP) code	IP67
Rear camera resolution (numeric)	8 MP

Weight and Dimensions

Depth	15.9 mm
Width	69 mm
Height	137 mm
