17.If the printer is paused (the PAUSE light is on), press the PAUSE key to enable
printing.
Peeling starts automatically. Press the FEED key to test.
Liner Removal
1. Pull the liner slide toward you (see inset) until it
stops (about a third of the way down the liner
take-up spindle).
2. Slide the liner from the take-up spindle.
NOTE: The liner slide moves smoothly back into place on the liner take-up
spindle once the liner has been removed.

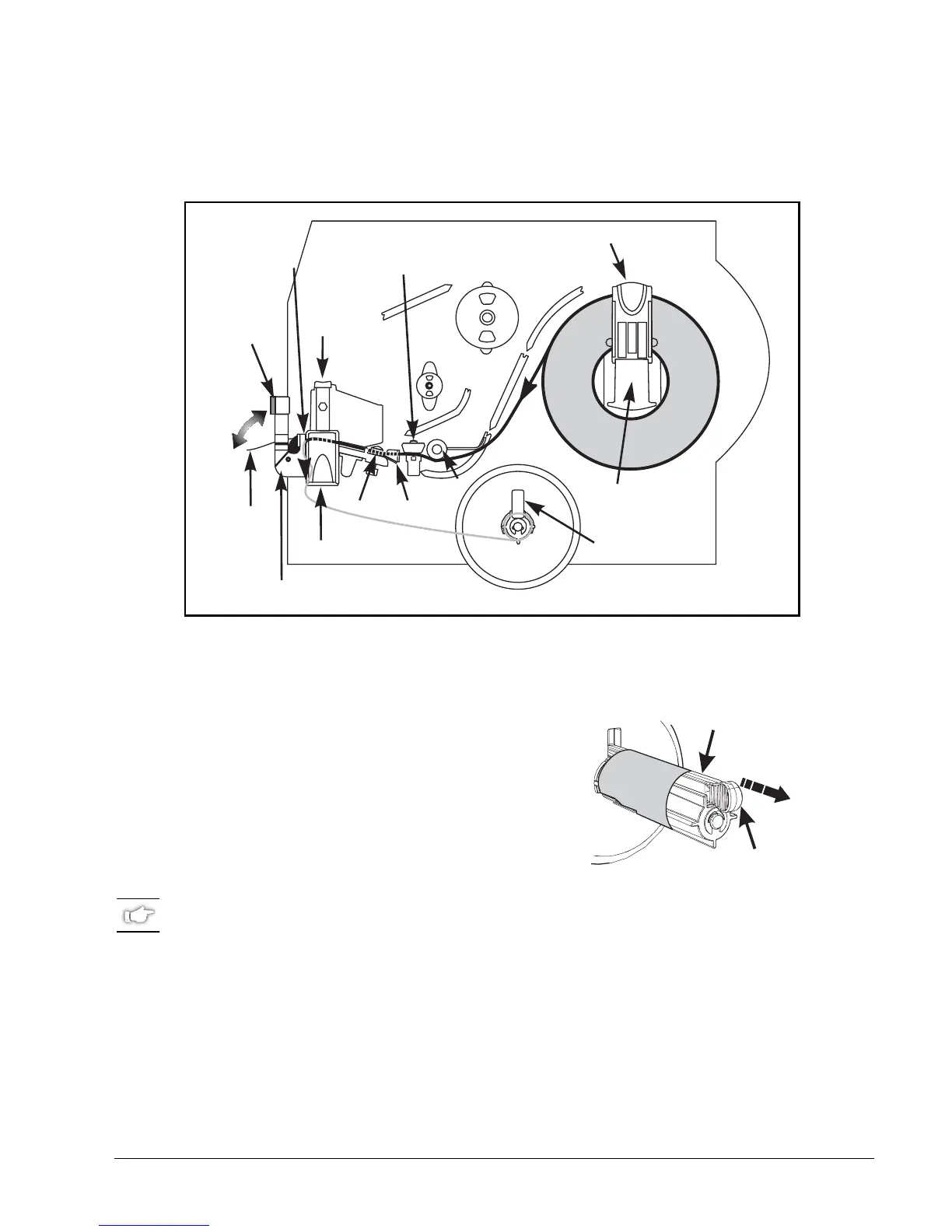

Figure 17
Dancer
Media
Guide
Ribbon
Sensor
Label
Printhead Open Lever
Printhead
Assembly
Transmissive
Sensor
Media Supply Guide
Media
Supply
Hanger
Liner Take-up
Tear-off/
Peel-off Bar
Value
Peel
Lever
Value Peel Assembly
Liner Slide Tab
Liner Slide
