56,QWHUIDFH

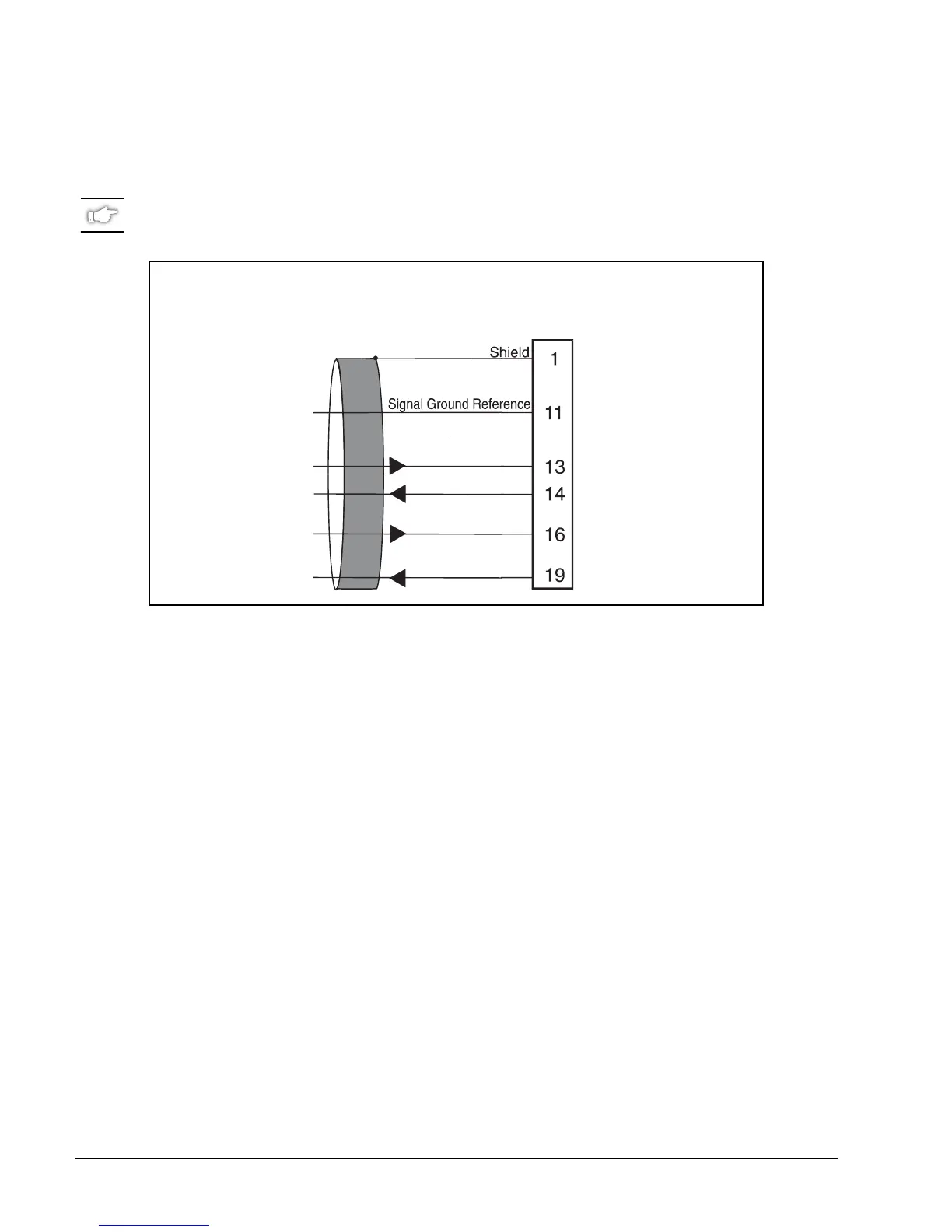

Figure 38 illustrates the pin connections on the DB-25 connector at the rear of the
printer that are used for the RS-485 communication protocol.
NOTE: XON/XOFF handshaking must be used for RS-485 communications.
Figure 38
DB-25P
Connector
to Printer
Data Input A (–)
Data Output A (–)
Data Output B (+)
Data Input B (+)
