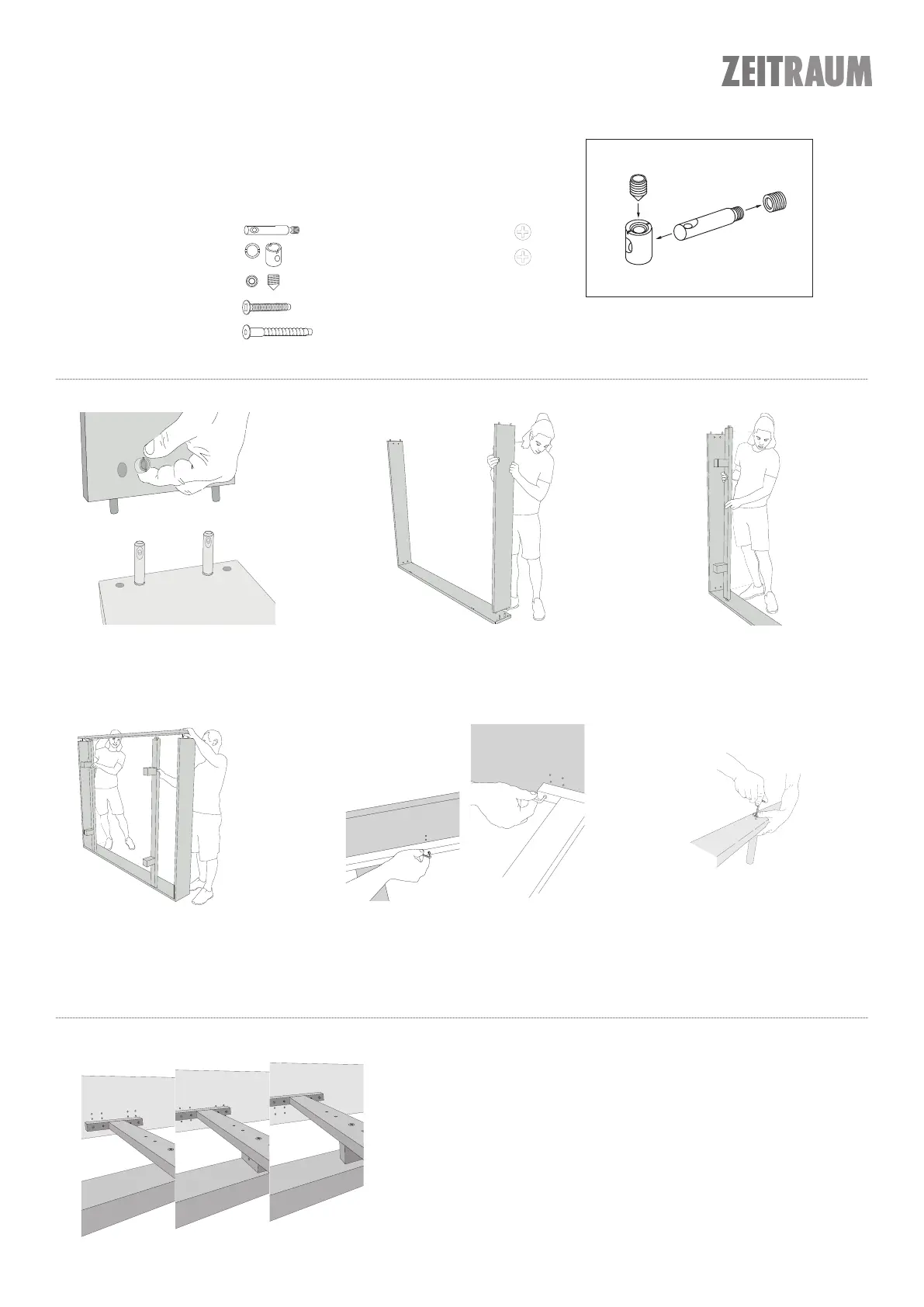

SIMPLE
assembly instructions 05/2021
TOOLS:
allen key SW4 und SW5 (enclosed), crosstip screwdriver
8x XS steel bolts 2x countersunk bolts (5x60)
8x connector housings 2x countersunk bolts (5x80)
8x grub screws 2x center feet (13/17 cm), adjustable
1x countersunk bolt (M8x50) 2x distance block
24x confirmat screws
ZEITRAUM GmbH • Äußere Münchner Straße 2 • D-82515 Wolfratshausen • Tel + 49 (0) 8171–418130 • Fax + 49 (0) 8171 – 418141 • info@zeitraum-moebel.de • www.zeitraum-moebel.de
Watch this video for further information on the metal fitting:
https://www.youtube.com/watch?v=ioIUTDqtvgE
5. Fix the side supports using confirmat
screws. For mattresses 140 cm or wider,
fasten the center rail.
6. Choose the correct center feet and
connect it to the center rail with the
countersunk screw (M8x50). Mind the
right length.
3. Attach the two bed feet to the cross-
bars and mount them to the bed side.
4. Connect and fix the second side
rail.
without spacer block: insertion depth 14,5 cm
horizontal spacer block: insertion depth 12,5 cm
standing spacer block: insertion depth 10,5 cm
Use the countersunk screws in the correct length
(5x60/80) to fix the spacer block.
Please assemble the bed on a soft surface(e.g. a carpet or blanket) to avoid damages.
1. Screw the bolts into the side rails and insert
the connector housing into head and foot sec-
tions. Align bolts and housing correctly!
2. Attach the head and foot sections and
fix them with grub screws.
