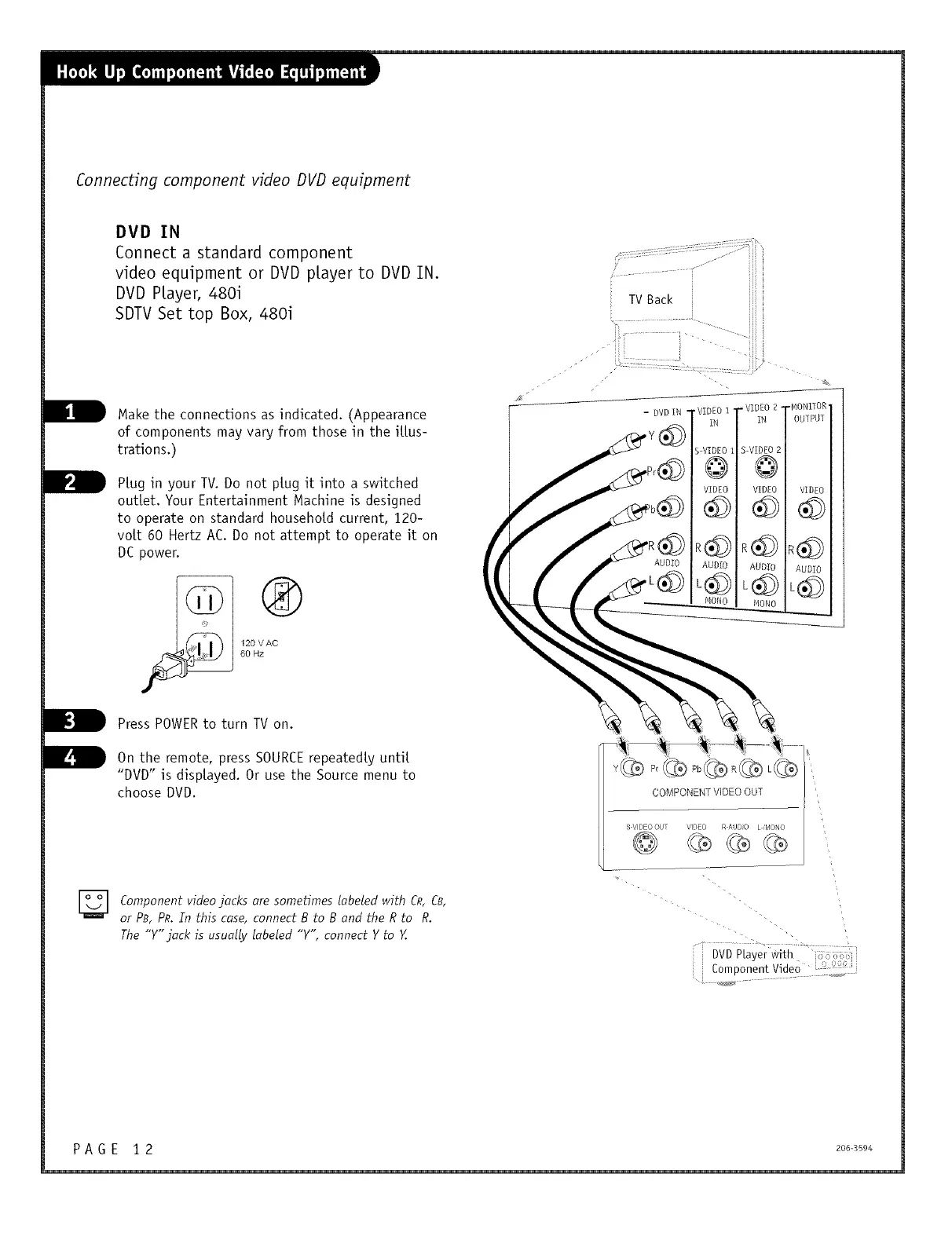

Connecting component video DVD equipment
gVg IN
Connect a standard component
video equipment or DVD player to DVD IN.
DVD Player, 480i
SDTV Set top Box, 480i
B
Make the connections as indicated. (Appearance
of components may vary from those in the illus-
trations.)
Hug in your TV. Do not plug it into a switched
outlet. Your Entertainment Machine is designed
to operate on standard household current, 120-
volt 60 Hertz A¢. Do not attempt to operate it on
DC power.
120 VA(_
60 Hz
B Press POWERto turn TV on.
B On the remote, press SOURCErepeatedly until
"DVD" is displayed. Or use the Source menu to
choose DVD.
i
TVBack
i
i
;>
VIDEO 1"" VIDEO ?-rMONITOR'
IN IN OUTPHI
S VIDEO i S-VIDEO 2
@
VIDEO VIDEO VIDEO
AUDIO AUDIO AUDIO
NONO MONO
Component video jacks ore sometimes labeled with CR,CB,
or PB, PR. In this case, connect B to B and the R to R.
The "Y"]ack is usually labeled "Y", connect Y to Y.
DVD Hayer With
Component Video i_ii :
PAG E 1 2 _o6-3594
