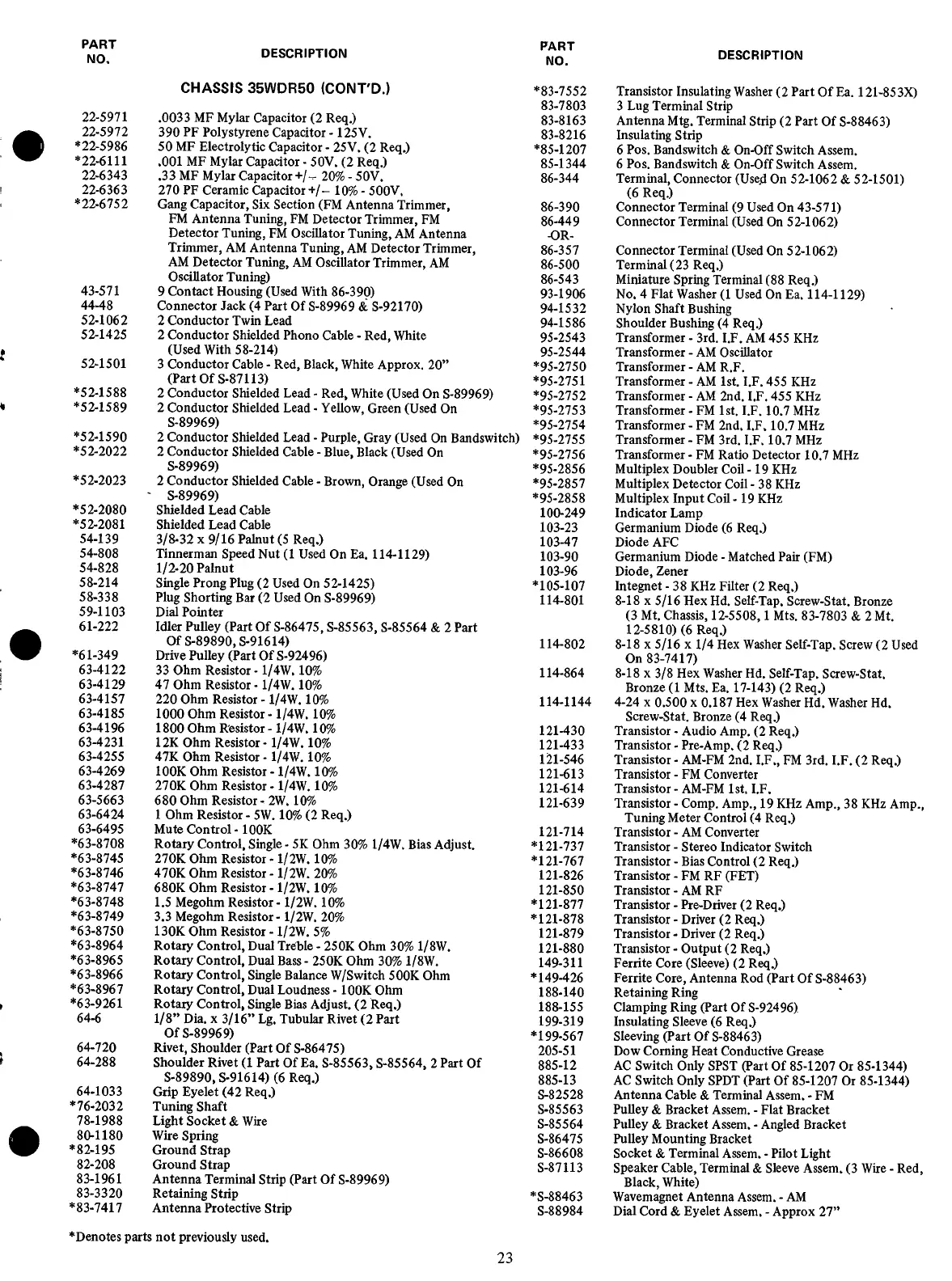

Zenith D952X - Page 25

23
PART
NO.
DESCRIPTION
22-5971
CHASSIS 35WDR50 (CONT'D.)
.0033 MF Mylar Capacitor (2 Req.)
22-5972
390 PF Polystyrene Capacitor - 125 V.
*22-5986
50 MF Electrolytic Capacitor - 25V. (2 Req.)
*22-6111
.001 MF Mylar Capacitor - 50V. (2 Req.)
22-6343
.33 MF Mylar Capacitor +/-- 20% - 50V.
22-6363
270 PF Ceramic Capacitor +/- 10% - 500V.
*22-6752
Gang Capacitor, Six Section (FM Antenna Trimmer,
43-571
FM Antenna Tuning, FM Detector Trimmer, FM
Detector Tuning, FM Oscillator Tuning, AM Antenna
Trimmer, AM Antenna Tuning, AM Detector Trimmer,
AM Detector Tuning, AM Oscillator Trimmer, AM
Oscillator Tuning)
9 Contact Housing (Used With 86-390)
44-48
Connector Jack (4 Part Of S-89969 & S-92170)
52-1062
2 Conductor Twin Lead
52-1425
2 Conductor Shielded Phono Cable - Red, White
52-1501
(Used With 58-214)
3 Conductor Cable - Red, Black, White Approx. 20 ”
*52-1588
(Part Of S-87113)
2 Conductor Shielded Lead - Red, White (Used On S-89969)
*52-1589
2 Conductor Shielded Lead - Yellow, Green (Used On
*52-1590
S-89969)
2 Conductor Shielded Lead - Purple, Gray (Used On Bandswitch)
*52-2022
2 Conductor Shielded Cable - Blue, Black (Used On
*52-2023
S-89969)
2 Conductor Shielded Cable - Brown, Orange (Used On
*52-2080
- S-89969)
Shielded Lead Cable
*52-2081
Shielded Lead Cable
54-139 3/8-32 x 9/16 Palnut (5 Req.)
54-808
Tinnerman Speed Nut (1 Used On Ea. 114-1129)
54-828
1/2-20 Palnut
58-214
Single Prong Plug (2 Used On 52-1425)
58-338
Plug Shorting Bar (2 Used On S-89969)
59-1103
Dial Pointer
61-222
Idler Pulley (Part Of S-86475, S-85563, S-85564 & 2 Part
*61-349
Of S-89890, S-91614)
Drive Pulley (Part Of S-92496)
63-4122
33 Ohm Resistor - 1/4W. 10%
63-4129
47 Ohm Resistor - 1/4W. 10%
63-4157
220 Ohm Resistor - 1/4W. 10%
63-4185
1000 Ohm Resistor - 1/4W. 10%
63-4196
1800 Ohm Resistor - 1/4W. 10%
63-4231
12K Ohm Resistor - 1/4W. 10%
63-4255
47K Ohm Resistor - 1/4W. 10%
63-4269 100K Ohm Resistor - 1/4W. 10%
63-4287
270K Ohm Resistor - 1/4W. 10%
63-5663
680 Ohm Resistor - 2W. 10%
63-6424
1 Ohm Resistor - 5W. 10% (2 Req.)
63-6495
Mute Control - 100K
*63-8708
Rotary Control, Single - 5K Ohm 30% 1/4W. Bias Adjust.
*63-8745
270K Ohm Resistor - 1/2W. 10%
*63-8746
470K Ohm Resistor - 1/2W. 20%
*63-8747
680K Ohm Resistor - 1/2W. 10%
*63-8748
1.5 Megohm Resistor - 1/2W. 10%
*63-8749
3.3 Megohm Resistor - 1/2W. 20%
*63-8750
130K Ohm Resistor - 1/2W. 5%
*63-8964
Rotary Control, Dual Treble - 25 OK Ohm 30% 1/8W.
*63-8965
Rotary Control, Dual Bass - 25 OK Ohm 30% 1/8W.
*63-8966
Rotary Control, Single Balance W/Switch 500K Ohm
*63-8967
Rotary Control, Dual Loudness - 100K Ohm
*63-9261
Rotary Control, Single Bias Adjust. (2 Req.)
64-6
1/8 ” Dia. x 3/16 ” Lg. Tubular Rivet (2 Part
64-720
Of S-89969)
Rivet, Shoulder (Part Of S-86475)
64-288
Shoulder Rivet (1 Part Of Ea. S-85563, S-85564, 2 Part Of
64-1033
S-89890, S-91614) (6 Req.)
Grip Eyelet (42 Req.)
*76-2032
Tuning Shaft
78-1988
Light Socket & Wire
80-1180
Wire Spring
*82-195
Ground Strap
82-208
Ground Strap
83-1961
Antenna Terminal Strip (Part Of S-89969)
83-3320
Retaining Strip
*83-7417
Antenna Protective Strip
PART
NO.
DESCRIPTION
*83-7552
Transistor Insulating Washer (2 Part Of Ea. 121-85 3X)
83-7803
3 Lug Terminal Strip
83-8163
Antenna Mtg. Terminal Strip (2 Part Of S-88463)
83-8216 Insulating Strip
*85-1207
6 Pos. Bandswitch & On-Off Switch Assem.
85-1344
6 Pos. Bandswitch & On-Off Switch Assem.
86-344
Terminal, Connector (Used On 52-1062 & 52-1501)
(6 Req.)
86-390
Connector Terminal (9 Used On 43-571)
86-449
-OR-
Connector Terminal (Used On 52-1062)
86-357
Connector Terminal (Used On 52-1062)
86-500
Terminal (23 Req.)
86-543
Miniature Spring Terminal (88 Req.)
93-1906
No. 4 Flat Washer (1 Used On Ea. 114-1129)
94-1532
Nylon Shaft Bushing
94-1586 Shoulder Bushing (4 Req.)
95-2543
Transformer - 3rd. I.F. AM 455 KHz
95-2544
Transformer - AM Oscillator
*95-2750 Transformer - AM R.F.
*95-2751 Transformer - AM 1st. I.F. 455 KHz
*95-2752
Transformer - AM 2nd. I.F. 455 KHz
*95-2753 Transformer - FM 1st. I.F. 10.7 MHz
*95-2754
Transformer - FM 2nd. I.F. 10.7 MHz
*95-2755
Transformer - FM 3rd. I.F. 10.7 MHz
*95-2756
Transformer - FM Ratio Detector 10.7 MHz
*95-2856
Multiplex Doubler Coil -19 KHz
*95-2857
Multiplex Detector Coil - 38 KHz
*95-2858
Multiplex Input Coil -19 KHz
100-249
Indicator Lamp
103-23
Germanium Diode (6 Req.)
103-47
Diode AFC
103-90
Germanium Diode - Matched Pair (FM)
103-96
Diode, Zener
*105-107 Integnet - 38 KHz Filter (2 Req.)
114-801 8-18 x 5/16 Hex Hd. Self-Tap. Screw-Stat. Bronze
(3 Mt. Chassis, 12-5508,1 Mts. 83-7803 & 2 Mt.
12-5810) (6 Req.)
114-802
8-18 x 5/16 x 1/4 Hex Washer Self-Tap. Screw (2 Used
On 83-7417)
114-864
8-18 x 3/8 Hex Washer Hd. Self-Tap. Screw-Stat.
Bronze (1 Mts. Ea. 17-143) (2 Req.)
114-1144
4-24 x 0.500 x 0.187 Hex Washer Hd. Washer Hd.
Screw-Stat. Bronze (4 Req.)
121-430
Transistor - Audio Amp. (2 Req.)
121-433
Transistor - Pre-Amp. (2 Req.)
121-546
Transistor - AM-FM 2nd. I.F., FM 3rd. I.F. (2 Req.)
121-613
Transistor - FM Converter
121-614
Transistor - AM-FM 1st. I.F.
121-639 Transistor - Comp. Amp., 19 KHz Amp., 38 KHz Amp.,
Tuning Meter Control (4 Req.)
121-714
Transistor - AM Converter
*121-737
Transistor - Stereo Indicator Switch
*121-767 Transistor - Bias Control (2 Req.)
121-826 Transistor - FM RF (FET)
121-850 Transistor - AM RF
*121-877 Transistor - Pre-Driver (2 Req.)
*121-878
Transistor - Driver (2 Req.)
121-879 Transistor - Driver (2 Req.)
121-880
Transistor - Output (2 Req.)
149-311
Ferrite Core (Sleeve) (2 Req.)
*149-426
Ferrite Core, Antenna Rod (Part Of S-88463)
188-140
Retaining Ring
188-155
Clamping Ring (Part Of S-92496)
199-319
Insulating Sleeve (6 Req.)
*199-567
Sleeving (Part Of S-88463)
205-51
Dow Corning Heat Conductive Grease
885-12
AC Switch Only SPST (Part Of 85-1207 Or 85-1344)
885-13
AC Switch Only SPDT (Part Of 85-1207 Or 85-1344)
S-82528
Antenna Cable & Terminal Assem. - FM
S-85563 Pulley & Bracket Assem. - Flat Bracket
S-85564
Pulley & Bracket Assem. - Angled Bracket
S-86475
Pulley Mounting Bracket
S-86608
Socket & Terminal Assem. - Pilot Light
S-87113
Speaker Cable, Terminal & Sleeve Assem. (3 Wire - Red,
Black, White)
*S-88463
Wavemagnet Antenna Assem. - AM
S-88984
Dial Cord & Eyelet Assem. - Approx 27 ”
*Denotes parts not previously used.
