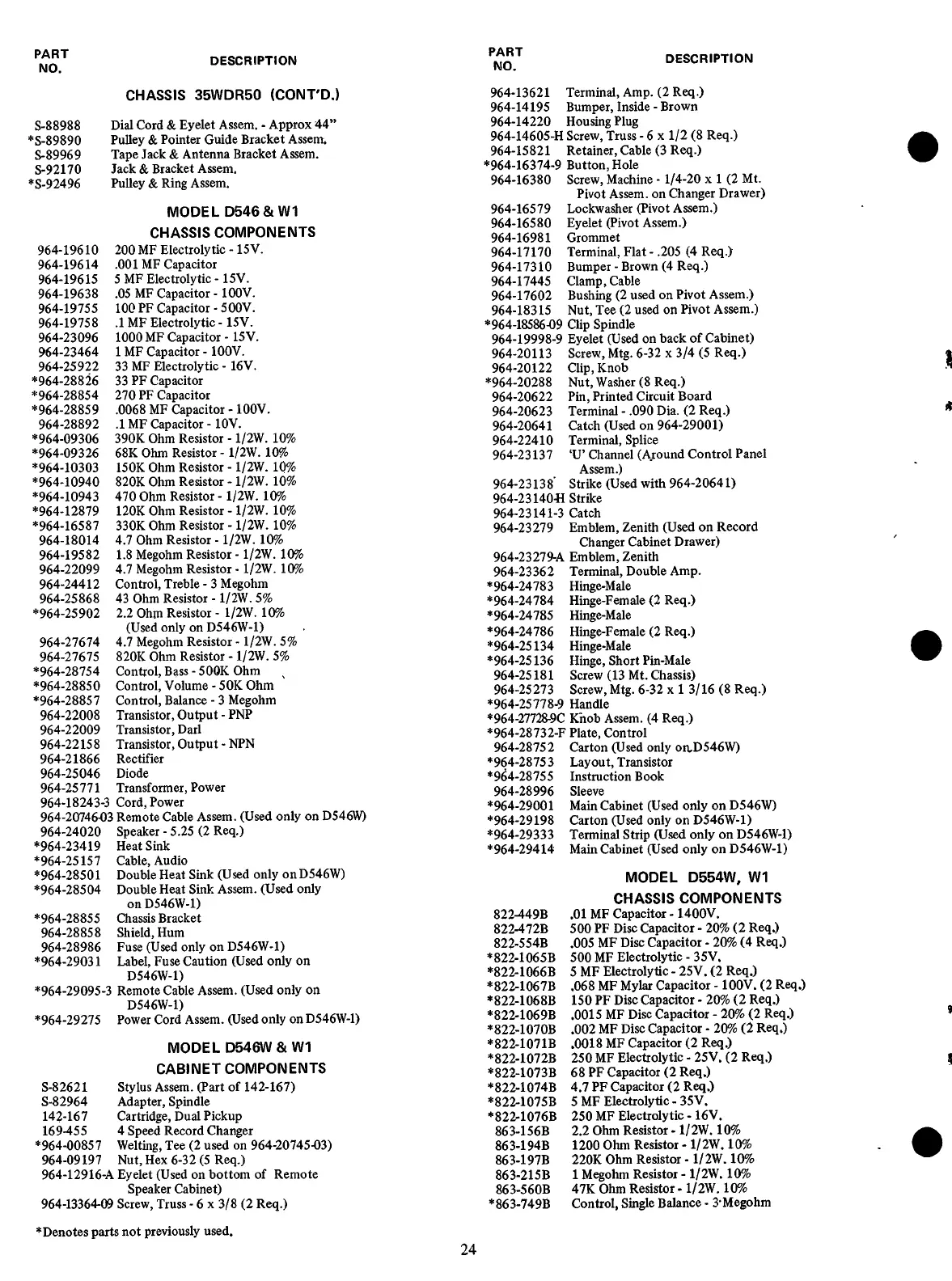

Zenith D952X - Page 26

24
♦Denotes parts not previously used.
PART
NO.
DESCRIPTION
S-88988
CHASSIS 35WDR50 (CONT'D.)
Dial Cord & Eyelet Assem. - Approx 44 ”
*S-89890
Pulley & Pointer Guide Bracket Assem.
S-89969
Tape Jack & Antenna Bracket Assem.
S-92170
Jack & Bracket Assem.
*S-92496
Pulley & Ring Assem.
964-19610
MODEL D546& W1
CHASSIS COMPONENTS
200 MF Electrolytic - 15V.
964-19614
.001 MF Capacitor
964-19615
5 MF Electrolytic - 15V.
964-19638
.05 MF Capacitor - 100V.
964-19755
100 PF Capacitor - 500V.
964-19758
.1 MF Electrolytic - 15V.
964-23096
1000 MF Capacitor - 15 V.
964-23464
1 MF Capacitor - 100V.
964-25922
33 MF Electrolytic - 16V.
*964-28826
33 PF Capacitor
*964-28854 270 PF Capacitor
*964-28859
.0068 MF Capacitor - 100V.
964-28892
.1 MF Capacitor - 10V.
*964-09306
390K Ohm Resistor - 1/2W. 10%
*964-09326
68K Ohm Resistor - 1/2W. 10%
*964-10303
150K Ohm Resistor - 1/2W. 10%
*964-10940
820K Ohm Resistor - 1/2W. 10%
*964-10943
470 Ohm Resistor - 1/2W. 10%
*964-12879
120K Ohm Resistor - 1/2W. 10%
*964-16587
330K Ohm Resistor - 1/2W. 10%
964-18014
4.7 Ohm Resistor - 1/2W. 10%
964-19582
1.8 Megohm Resistor - 1/2W. 10%
964-22099
4.7 Megohm Resistor - 1/2W. 10%
964-24412
Control, Treble - 3 Megohm
964-25868
43 Ohm Resistor - 1/2W. 5%
*964-25902
2.2 Ohm Resistor - 1/2W. 10%
964-27674
(Used only on D546W-1)
4.7 Megohm Resistor - 1/2W. 5%
964-27675
820K Ohm Resistor - 1/2W. 5%
*964-28754
Control, Bass - 500K Ohm
*964-28850
Control, Volume - 5 OK Ohm
*964-28857
Control, Balance - 3 Megohm
964-22008
Transistor, Output - PNP
964-22009
Transistor, Dari
964-22158
Transistor, Output - NPN
964-21866
Rectifier
964-25046
Diode
964-25771
Transformer, Power
964-18243-3
> Cord, Power
964-20746-03 Remote Cable Assem. (Used only on D546W)
964-24020
Speaker - 5.25 (2 Req.)
*964-23419
Heat Sink
*964-25157
Cable, Audio
*964-28501
Double Heat Sink (Used only onD546W)
*964-28504
Double Heat Sink Assem. (Used only
*964-28855
on D546W-1)
Chassis Bracket
964-28858
Shield, Hum
964-28986
Fuse (Used only on D546W-1)
*964-29031
Label, Fuse Caution (Used only on
D546W-1)
*964-29095-3 Remote Cable Assem. (Used only on
*964-29275
D546W-1)
Power Cord Assem. (Used only on D546W-1)
S-82621
MODEL D546W & W1
CABINET COMPONENTS
Stylus Assem. (Part of 142-167)
S-82964 Adapter, Spindle
142-167
Cartridge, Dual Pickup
169-455
4 Speed Record Changer
*964-00857
Welting, Tee (2 used on 964-20745-03)
964-09197
Nut, Hex 6-32(5 Req.)
964-129 16-A Eyelet (Used on bottom of Remote
Speaker Cabinet)
964-13364-09 Screw, Truss -6x3/8 (2 Req.)
PART
NO.
DESCRIPTION
964-13621
Terminal, Amp. (2 Req.)
964-14195
Bumper, Inside - Brown
964-14220
Housing Plug
964-14605-H Screw, Truss -6x1/2 (8 Req.)
964-15821
Retainer, Cable (3 Req.)
*964-16374-9 Button, Hole
964-16380
Screw, Machine - 1/4-20 x 1 (2 Mt.
Pivot Assem. on Changer Drawer)
964-16579
Lockwasher (Pivot Assem.)
964-16580
Eyelet (Pivot Assem.)
964-16981
Grommet
964-17170
Terminal, Flat - .205 (4 Req.)
964-17310
Bumper - Brown (4 Req.)
964-17445
Clamp, Cable
964-17602
Bushing (2 used on Pivot Assem.)
964-18315
Nut, Tee (2 used on Pivot Assem.)
*964-18586-09 Clip Spindle
964-19998-9 Eyelet (Used on back of Cabinet)
964-20113
Screw, Mtg. 6-32 x 3/4 (5 Req.)
964-20122 Clip, Knob
*964-20288
Nut, Washer (8 Req.)
964-20622
Pin, Printed Circuit Board
964-20623
Terminal - .090 Dia. (2 Req.)
964-20641
Catch (Used on 964-29001)
964-22410
Terminal, Splice
964-23137
‘ U* Channel (Around Control Panel
Assem.)
964-23138
Strike (Used with 964-20641)
964-23 140-H Strike
964-23141-3 Catch
964-23279
Emblem, Zenith (Used on Record
Changer Cabinet Drawer)
964-2327 9-A Emblem, Zenith
964-23362
Terminal, Double Amp.
*964-24783
Hinge-Male
*964-24784
Hinge-Female (2 Req.)
*964-24785
Hinge-Male
*964-24786
Hinge-Female (2 Req.)
*964-25134 Hinge-Male
*964-25136
Hinge, Short Pin-Male
964-25181 Screw (13 Mt. Chassis)
964-25273
Screw, Mtg. 6-32 x 1 3/16 (8 Req.)
*964-25778-9 Handle
*964-27728-9C Knob Assem. (4 Req.)
*964-28732-F Plate, Control
964-28752 Carton (Used only on,D546W)
*964-28753
Layout, Transistor
*964-28755
Instruction Book
964-28996
Sleeve
*964-29001
Main Cabinet (Used only on D546W)
*964-29198 Carton (Used only on D546W-1)
*964-29333
Terminal Strip (Used only on D546W-1)
*964-29414
Main Cabinet (Used only on D546W-1)
MODEL D554W, W1
CHASSIS COMPONENTS
822-449B
.01 MF Capacitor - 1400V.
822-472B
500 PF Disc Capacitor - 20% (2 Req.)
822-554B
.005 MF Disc Capacitor - 20% (4 Req.)
*822-1065B
500 MF Electrolytic - 35V.
*822-1066B
5 MF Electrolytic - 25V. (2 Req.)
*822-1067B
.068 MF Mylar Capacitor - 100V. (2 Req J
*822-1068B
150 PF Disc Capacitor - 20% (2 Req.)
*822-1069B
.0015 MF Disc Capacitor - 20% (2 Req.)
*822-1070B
.002 MF Disc Capacitor - 20% (2 Req.)
*822-1071B
.0018 MF Capacitor (2 Req.)
*822-1072B
250 MF Electrolytic - 25V. (2 Req.)
*822-1073B
68 PF Capacitor (2 Req.)
*822-1074B
4.7 PF Capacitor (2 Req.)
*822-1075B
5 MF Electrolytic-35V.
*822-1076B
250 MF Electrolytic - 16V.
863-156B
2.2 Ohm Resistor - 1/2W. 10%
863-1 94B
1200 Ohm Resistor - 1/2W. 10%
863-197B
220K Ohm Resistor - 1/2W. 10%
863-215B
1 Megohm Resistor - 1/2W. 10%
863-560B
47K Ohm Resistor - 1/2W. 10%
*863-749B
Control, Single Balance - 3* Megohm
