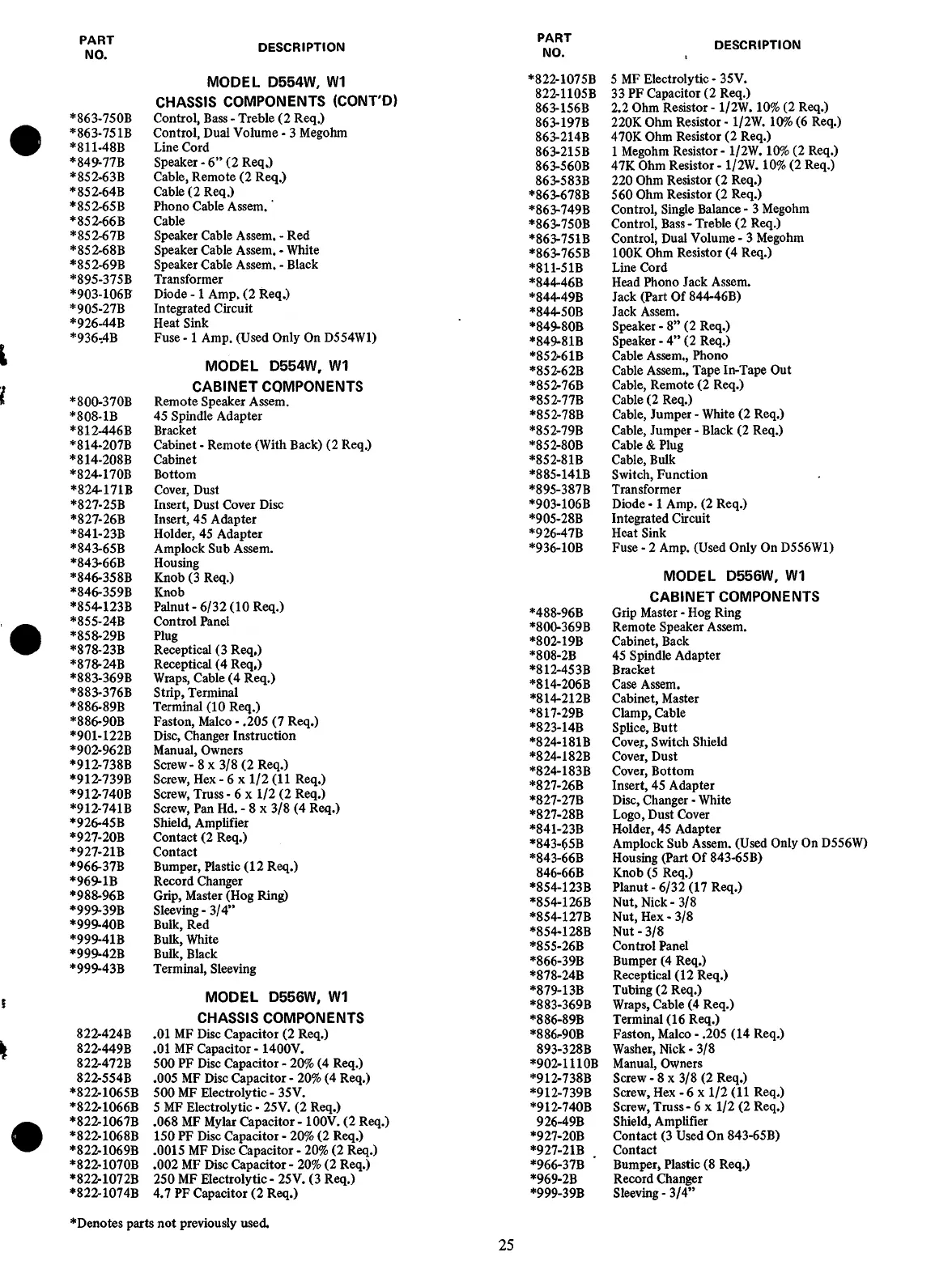

Zenith D952X - Page 27

25
♦Denotes parts not previously used.
PART
NO.
DESCRIPTION
*863-750B
MODEL D554W, W1
CHASSIS COMPONENTS (CONT'D)
Control, Bass - Treble (2 Req.)
*863-75 IB
Control, Dual Volume - 3 Megohm
*811-48B
Line Cord
*849-77B
Speaker - 6 ” (2 Req.)
*852-63B Cable, Remote (2 Req.)
*852-64B
Cable (2 Req.)
*852-65B
Phono Cable Assem. ‘
*852-66B
Cable
*852-67B Speaker Cable Assem. - Red
♦852-68B Speaker Cable Assem. - White
*852-69B
Speaker Cable Assem. - Black
♦895-375B
Transformer
*903-106B
Diode -1 Amp. (2 Req.)
*905-27B Integrated Circuit
*926-44B
Heat Sink
*936-4B
Fuse -1 Amp. (Used Only On D554W1)
*800-370B
MODEL D554W, W1
CABINET COMPONENTS
Remote Speaker Assem.
*8O8-1B
45 Spindle Adapter
*812-446B
Bracket
*814-207B
Cabinet - Remote (With Back) (2 Req.)
*814-208B
Cabinet
*824-170B Bottom
♦824-171B
Cover, Dust
♦827-25B
Insert, Dust Cover Disc
*827-26B Insert, 45 Adapter
*841-23B
Holder, 45 Adapter
*843-65B
Amplock Sub Assem.
*843-66B
Housing
*846-358B
Knob (3 Req.)
♦846-359B Knob
*854-123B
Palnut- 6/32 (10 Req.)
*855- 24B Control Panel
*858-29B
Plug
*878-23B Receptical (3 Req,)
*878- 24B
Receptical (4 Req,)
♦883-369B
Wraps, Cable (4 Req.)
*883-376B
Strip, Terminal
*886-89B
Terminal (10 Req.)
*886-90B Faston, Malco - .205 (7 Req.)
*901-122B
Disc, Changer Instruction
♦902-962B
Manual, Owners
*912-738B Screw - 8 x 3/8 (2 Req.)
♦912-739B Screw, Hex - 6 x 1/2 (11 Req.)
*912-740B
Screw, Truss - 6 x 1/2 (2 Req.)
*912-741B
Screw, Pan Hd. -8x3/8 (4 Req.)
*926-45B Shield, Amplifier
*927-20B Contact (2 Req.)
*927-21B
Contact
♦966-37B Bumper, Plastic (12 Req.)
*969-lB Record Changer
♦988-96B
Grip, Master (Hog Ring)
*999-39B
Sleeving - 3/4 ”
♦999-40B
Bulk, Red
Bulk, White
♦999-41B
*999-42B
Bulk, Black
♦999-43B Terminal, Sleeving
822-424B
MODEL D556W, W1
CHASSIS COMPONENTS
.01 MF Disc Capacitor (2 Req.)
822-449B .01 MF Capacitor - 1400V.
822-472B
500 PF Disc Capacitor - 20% (4 Req.)
822-554B
.005 MF Disc Capacitor - 20% (4 Req.)
*822-1065B 500 MF Electrolytic - 35V.
*822-1066B
5 MF Electrolytic - 25V. (2 Req.)
*822-1067B
.068 MF Mylar Capacitor - 100V. (2 Req.)
*822-1068B
150 PF Disc Capacitor - 20% (2 Req.)
*822-1069B
.0015 MF Disc Capacitor - 20% (2 Req.)
*822-1070B
.002 MF Disc Capacitor - 20% (2 Req.)
♦822-1072B
250 MF Electrolytic - 25V. (3 Req.)
♦822-1074B 4.7 PF Capacitor (2 Req.)
PART
NO.
DESCRIPTION
*822-1075B
5 MF Electrolytic - 35V.
822-1105B
33 PF Capacitor (2 Req.)
863-156B
2.2 Ohm Resistor - 1/2W. 10% (2 Req.)
863-197B
220K Ohm Resistor - 1/2W. 10% (6 Req.)
863-214B
470K Ohm Resistor (2 Req.)
863-215B
1 Megohm Resistor - 1/2W. 10% (2 Req.)
863-560B
47K Ohm Resistor - 1/2W. 10% (2 Req.)
863-583B
220 Ohm Resistor (2 Req.)
*863-678B
560 Ohm Resistor (2 Req.)
*863-749B
Control, Single Balance - 3 Megohm
*863-750B
Control, Bass - Treble (2 Req.)
*863-751B
Control, Dual Volume - 3 Megohm
*863-765B
100K Ohm Resistor (4 Req.)
♦811-51B
Line Cord
♦844-46B
Head Phono Jack Assem.
*844-49B
Jack (Part Of 844-46B)
*844-50B
Jack Assem.
*849-80B
Speaker - 8 ” (2 Req.)
*849-81B
Speaker - 4 ” (2 Req.)
♦852-61B
Cable Assem., Phono
*852-62B
Cable Assem., Tape In-Tape Out
*852-76B
Cable, Remote (2 Req.)
♦852-77B
Cable (2 Req.)
*852-78B
Cable, Jumper - White (2 Req.)
*852-79B
Cable, Jumper - Black (2 Req.)
*852-80B
Cable & Plug
*852-81B
Cable, Bulk
*885-141B
Switch, Function
*895-387B
Transformer
♦903-106B
Diode -1 Amp. (2 Req.)
*905-28B
Integrated Circuit
*926-47B
Heat Sink
*936-10B
Fuse - 2 Amp. (Used Only On D556W1)
MODEL D556W, W1
CABINET COMPONENTS
*488-96B
Grip Master - Hog Ring
*800-369B
Remote Speaker Assem.
*802-19B
Cabinet, Back
*808-2B
45 Spindle Adapter
*812-453B
Bracket
*814-206B
Case Assem.
*814-212B Cabinet, Master
*817-29B Clamp, Cable
*823-14B Splice, Butt
♦824-181B
Cover, Switch Shield
*824-182B
Cover, Dust
*824-183B
Cover, Bottom
*827-26B Insert, 45 Adapter
♦827-27B
Disc, Changer - White
*827-28B
Logo, Dust Cover
♦841-23B
Holder, 45 Adapter
*843-65B
Amplock Sub Assem. (Used Only On D556W)
*843-66B
Housing (Part Of 843-65B)
846-66B
Knob (5 Req.)
♦854-123B
Planut - 6/32 (17 Req.)
♦854-126B Nut, Nick -3/8
♦854-127B
Nut, Hex - 3/8
♦854-128B
Nut - 3/8
*855-26B
Control Panel
♦866-39B
Bumper (4 Req.)
*878-24B
Receptical (12 Req.)
*879-13B
Tubing (2 Req.)
*883-369B
Wraps, Cable (4 Req.)
*886-89B
Terminal (16 Req.)
*886-90B
Faston, Malco - .205 (14 Req.)
893-328B
Washer, Nick - 3/8
*902-1 HOB
Manual, Owners
*912-738B
Screw - 8 x 3/8 (2 Req.)
*912-739B
Screw, Hex - 6x1/2(11 Req.)
*912-740B
Screw, Truss - 6 x 1/2 (2 Req.)
926-49B
Shield, Amplifier
*927-20B
Contact (3 Used On 843-65B)
*927-21B
Contact
♦966-37B ’
Bumper^ Plastic (8 Req.)
*969-2B
Record Changer
*999-39B
Sleeving -3/4 ”
