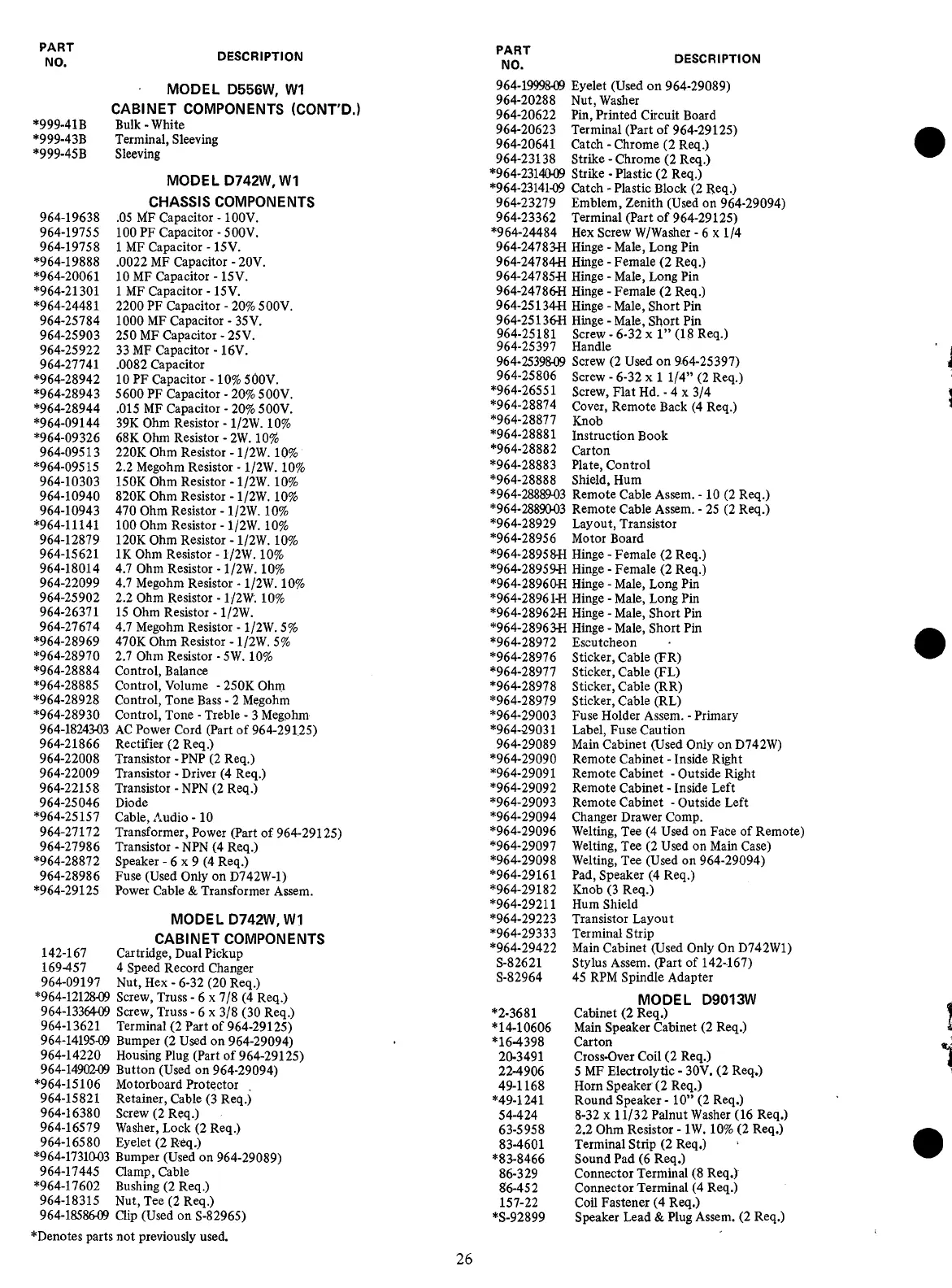

26
*Denotes parts not previously used.
PART
NO.
DESCRIPTION
*999-41B
MODEL D556W, W1
CABINET COMPONENTS (CONTI
Bulk-White
*999-43B Terminal, Sleeving
*999-45B
Sleeving
964-19638
MODEL D742W, W1
CHASSIS COMPONENTS
.05 MF Capacitor - 100V.
964-19755 100 PF Capacitor - 500V.
964-19758
1 MF Capacitor - 15 V.
*964-19888 .0022 MF Capacitor - 20V.
*964-20061
10 MF Capacitor - 15V.
*964-21301 1 MF Capacitor - 15 V.
*964-24481
2200 PF Capacitor - 20% 500V.
964-25784 1000 MF Capacitor - 35 V.
964-25903 250 MF Capacitor - 25 V.
964-25922
33 MF Capacitor - 16V.
964-27741
.0082 Capacitor
*964-28942 10 PF Capacitor -10% 500V.
*964-28943
5600 PF Capacitor - 20% 500V.
*964-28944
.015 MF Capacitor - 20% 500V.
*964-09144
39K Ohm Resistor - 1/2W. 10%
*964-09326 68 K Ohm Resistor - 2W. 10%
964-09513 220K Ohm Resistor - 1/2W. 10%
*964-09515
2.2 Megohm Resistor - 1/2W. 10%
964-10303 150K Ohm Resistor - 1/2W. 10%
964-10940
820K Ohm Resistor - 1/2W. 10%
964-10943
470 Ohm Resistor - 1/2W. 10%
*964-11141
100 Ohm Resistor - 1/2W. 10%
964-12879 120K Ohm Resistor - 1/2W. 10%
964-15621
IK Ohm Resistor - 1/2W. 10%
964-18014 4.7 Ohm Resistor - 1/2W. 10%
964-22099
4.7 Megohm Resistor - 1/2W. 10%
964-25902
2.2 Ohm Resistor - 1/2W. 10%
964-26371
15 Ohm Resistor - 1/2W.
964-27674
4.7 Megohm Resistor - 1/2W. 5%
*964-28969 470K Ohm Resistor - 1/2W. 5%
*964-28970 2.7 Ohm Resistor - 5W. 10%
*964-28884 Control, Balance
*964-28885 Control, Volume - 25 OK Ohm
*964-28928 Control, Tone Bass - 2 Megohm
*964-28930
Control, Tone - Treble - 3 Megohm
964-1824203
AC Power Cord (Part of 964-29125)
964-21866 Rectifier (2 Req.)
964-22008
Transistor - PNP (2 Req.)
964-22009
Transistor - Driver (4 Req.)
964-22158
Transistor - NPN (2 Req.)
964-25046
Diode
*964-25157
Cable, Audio -10
964-27172
Transformer, Power (Part of 964-29125)
964-27986
Transistor - NPN (4 Req.)
*964-28872
Speaker - 6 x 9 (4 Req.)
964-28986 Fuse (Used Only on D742W-1)
*964-29125
Power Cable & Transformer Assem.
142-167
MODEL D742W, W1
CABINET COMPONENTS
Cartridge, Dual Pickup
169-457 4 Speed Record Changer
964-09197
Nut, Hex - 6-32 (20 Req.)
*964-12128-09
Screw, Truss -6x7/8 (4 Req.)
964-1336409
Screw, Truss -6x3/8 (30 Req.)
964-13621
Terminal (2 Part of 964-29125)
964-14195-09
Bumper (2 Used on 964-29094)
964-14220
Housing Plug (Part of 964-29125)
964-14902-09
Button (Used on 964-29094)
*964-15106
Motorboard Protector
964-15821
Retainer, Cable (3 Req.)
964-16380
Screw (2 Req.)
964-16579
Washer, Lock (2 Req.)
964-16580 Eyelet (2 Req.)
*964-1731003
Bumper (Used on 964-29089)
964-17445 Clamp, Cable
*964-17602
Bushing (2 Req.)
964-18315
Nut, Tee (2 Req.)
964-1858609
Clip (Used on S-82965)
PART
NO.
DESCRIPTION
964-1999809 Eyelet (Used on 964-29089)
964-20288 Nut, Washer
964-20622 Pin, Printed Circuit Board
964-20623
Terminal (Part of 964-29125)
964-20641
Catch - Chrome (2 Req.)
964-23138 Strike - Chrome (2 Req.)
*964-2314009
Strike - Plastic (2 Req.)
*964-23141-09 Catch - Plastic Block (2 Req.)
964-23279
Emblem, Zenith (Used on 964-29094)
964-23362 Terminal (Part of 964-29125)
*964-24484
Hex Screw W/Washer -6x1/4
964-24783-H
Hinge - Male, Long Pin
964-24784H
Hinge - Female (2 Req.)
964-247 85-H
Hinge - Male, Long Pin
964-24786-H
Hinge - Female (2 Req.)
964-25 134-H
Hinge - Male, Short Pin
964-25 136-H
Hinge - Male, Short Pin
964-25181
Screw - 6-32 x 1 ” (18 Req.)
964-25397
Handle
964-2539809
Screw (2 Used on 964-25397)
964-25806
Screw - 6-32 x 1 1/4 ” (2 Req.)
*964-26551
Screw, Flat Hd. - 4 x 3/4
*964-28874
Cover, Remote Back (4 Req.)
*964-28877
Knob
*964-28881
Instruction Book
*964-28882
Carton
*964-28883
Plate, Control
*964-28888
Shield, Hum
*964-2888903
Remote Cable Assem. -10 (2 Req.)
*964-2889003
Remote Cable Assem. - 25 (2 Req.)
*964-28929
Layout, Transistor
*964-28956
Motor Board
*964-2895 8-H
Hinge - Female (2 Req.)
*964-28959-H
Hinge - Female (2 Req.)
*964-2896OH
Hinge - Male, Long Pin
*964-2896 1-H
Hinge - Male, Long Pin
*964-2896 2-H
Hinge - Male, Short Pin
*964-2896 3-H
Hinge - Male, Short Pin
*964-28972
Escutcheon
*964-28976
Sticker, Cable (FR)
*964-28977
Sticker, Cable (FL)
*964-28978
Sticker, Cable (RR)
*964-28979
Sticker, Cable (RL)
*964-29003 Fuse Holder Assem. - Primary
*964-29031 Label, Fuse Caution
964-29089
Main Cabinet (Used Only on D742W)
*964-29090
Remote Cabinet - Inside Right
*964-29091
Remote Cabinet - Outside Right
*964-29092 Remote Cabinet - Inside Left
*964-29093
Remote Cabinet - Outside Left
*964-29094 Changer Drawer Comp.
*964-29096
Welting, Tee (4 Used on Face of Remote)
*964-29097
Welting, Tee (2 Used on Main Case)
*964-29098 Welting, Tee (Used on 964-29094)
*964-29161
Pad, Speaker (4 Req.)
*964-29182 Knob (3 Req.)
*964-29211
Hum Shield
*964-29223 Transistor Layout
*964-29333 Terminal Strip
*964-29422
Main Cabinet (Used Only On D742W1)
S-82621
Stylus Assem. (Part of 142-167)
S-82964 45 RPM Spindle Adapter
MODEL D9013W
*2-3681 Cabinet (2 Req.)
*14-10606
Main Speaker Cabinet (2 Req.)
*16-4398
Carton
20-3491
Cross-Over Coil (2 Req.)
22-4906
5 MF Electrolytic - 30V. (2 Req.)
49-1168
Horn Speaker (2 Req.)
*49-1241
Round Speaker -10 ” (2 Req.)
54-424
8-32 x 11/32 Palnut Washer (16 Req.)
63-5958
2.2 Ohm Resistor - 1W. 10% (2 Req.)
83-4601
Terminal Strip (2 Req.)
*83-8466
Sound Pad (6 Req.)
86-329
Connector Terminal (8 Req.)
86-452
Connector Terminal (4 Req.)
157-22
Coil Fastener (4 Req.)
*S-92899
Speaker Lead & Plug Assem. (2 Req.)
