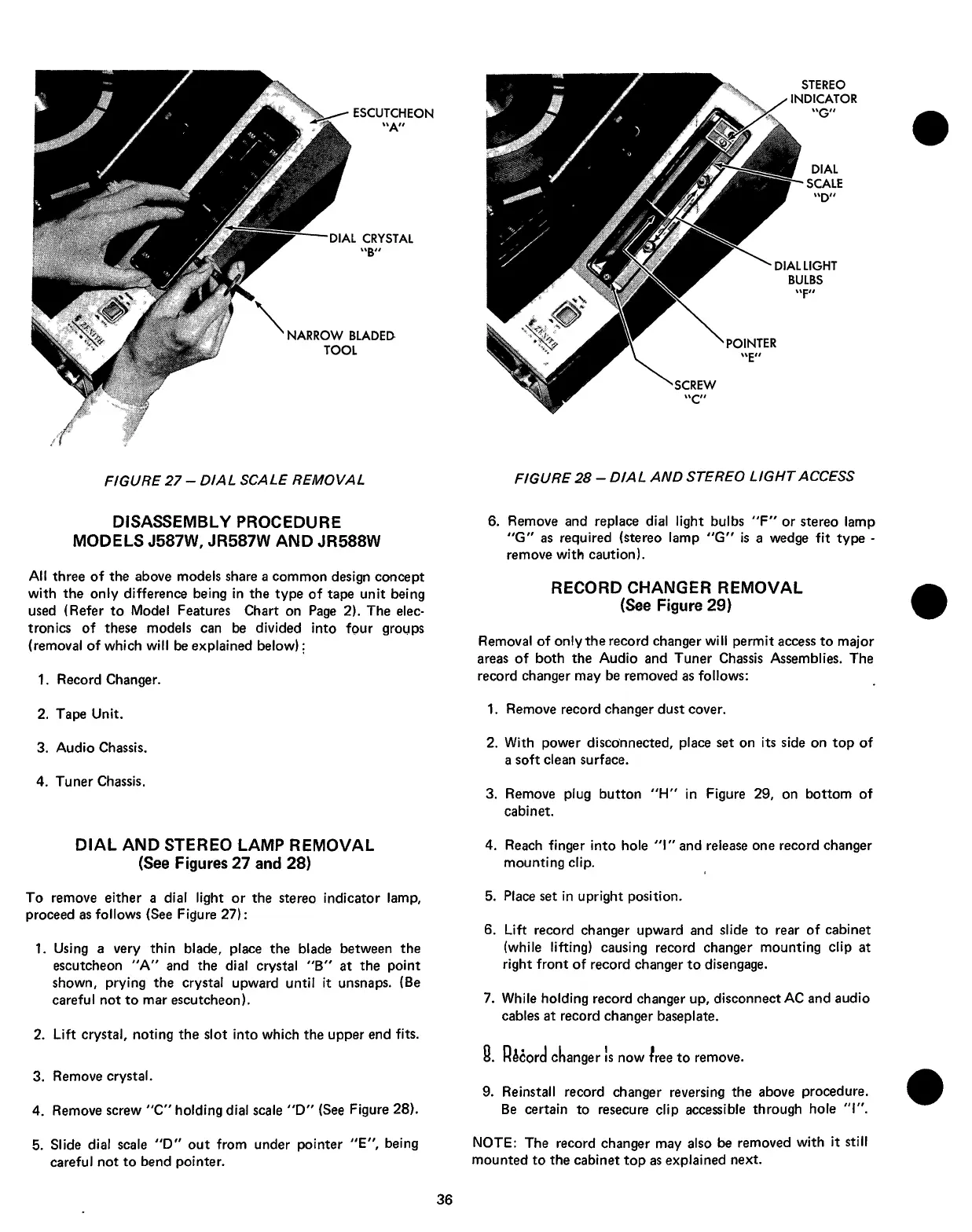

FIGURE 27 - DIAL SCALE REMOVAL
DISASSEMBLY PROCEDURE
MODELS J587W, JR587W AND JR588W
All three of the above models share a common design concept
with the only difference being in the type of tape unit being
used (Refer to Model Features Chart on Page 2). The elec 
tronics of these models can be divided into four groups
(removal of which will be explained below) :
1. Record Changer.
2. Tape Unit.
3. Audio Chassis.
4. Tuner Chassis.
DIAL AND STEREO LAMP REMOVAL
(See Figures 27 and 28)
To remove either a dial light or the stereo indicator lamp,
proceed as follows (See Figure 27):
1. Using a very thin blade, place the blade between the
escutcheon "A" and the dial crystal "B" at the point
shown, prying the crystal upward until it unsnaps. (Be
careful not to mar escutcheon).
2. Lift crystal, noting the slot into which the upper end fits.
3. Remove crystal.
4. Remove screw "C" holding dial scale "D" (See Figure 28).
5. Slide dial scale "D" out from under pointer "E", being
careful not to bend pointer.
FIGURE 28 - DIAL AND STEREO LIGHT ACCESS
6. Remove and replace dial light bulbs "F" or stereo lamp
"G" as required (stereo lamp "G" is a wedge fit type -
remove with caution).
RECORD CHANGER REMOVAL
(See Figure 29)
Removal of only the record changer will permit access to major
areas of both the Audio and Tuner Chassis Assemblies. The
record changer may be removed as follows:
1. Remove record changer dust cover.
2. With power disconnected, place set on its side on top of
a soft clean surface.
3. Remove plug button "H" in Figure 29, on bottom of
cabinet.
4. Reach finger into hole "I" and release one record changer
mounting clip.
5. Place set in upright position.
6. Lift record changer upward and slide to rear of cabinet
(while lifting) causing record changer mounting clip at
right front of record changer to disengage.
7. While holding record changer up, disconnect AC and audio
cables at record changer baseplate.
9. Record changer is now free to remove.
9. Reinstall record changer reversing the above procedure.
Be certain to resecure clip accessible through hole "I".
NOTE: The record changer may also be removed with it still
mounted to the cabinet top as explained next.
36
