Zenith J584W - Page 47

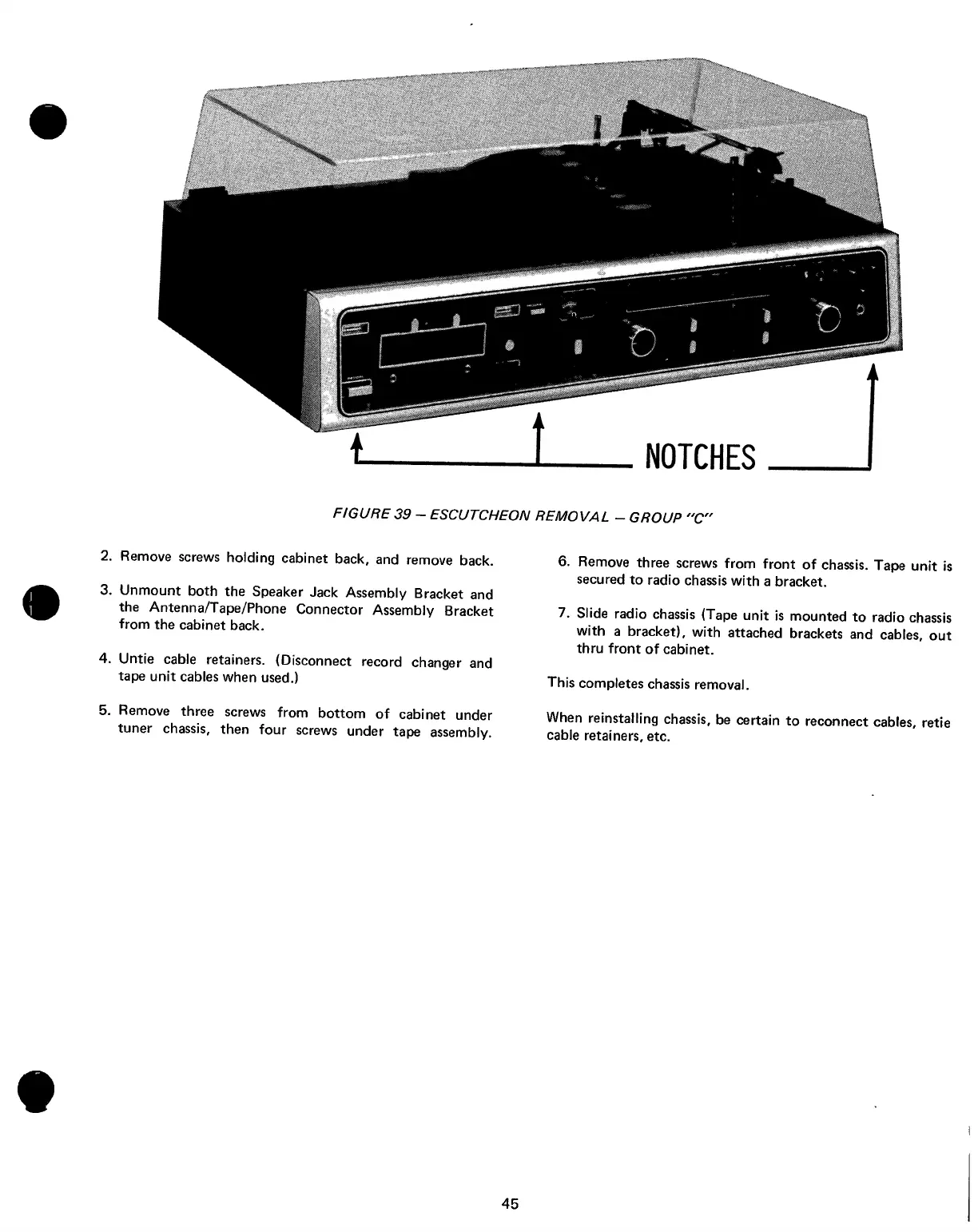

FIGURE 39 — ESCUTCHEON REMOVAL — GROUP "C"
2. Remove screws holding cabinet back, and remove back.
3. Unmount both the Speaker Jack Assembly Bracket and
the Antenna/Tape/Phone Connector Assembly Bracket
from the cabinet back.
4. Untie cable retainers. (Disconnect record changer and
tape unit cables when used.)
5. Remove three screws from bottom of cabinet under
tuner chassis, then four screws under tape assembly.
6. Remove three screws from front of chassis. Tape unit is
secured to radio chassis with a bracket.
7. Slide radio chassis (Tape unit is mounted to radio chassis
with a bracket), with attached brackets and cables, out
thru front of cabinet.
This completes chassis removal.
When reinstalling chassis, be certain to reconnect cables, retie
cable retainers, etc.
45
