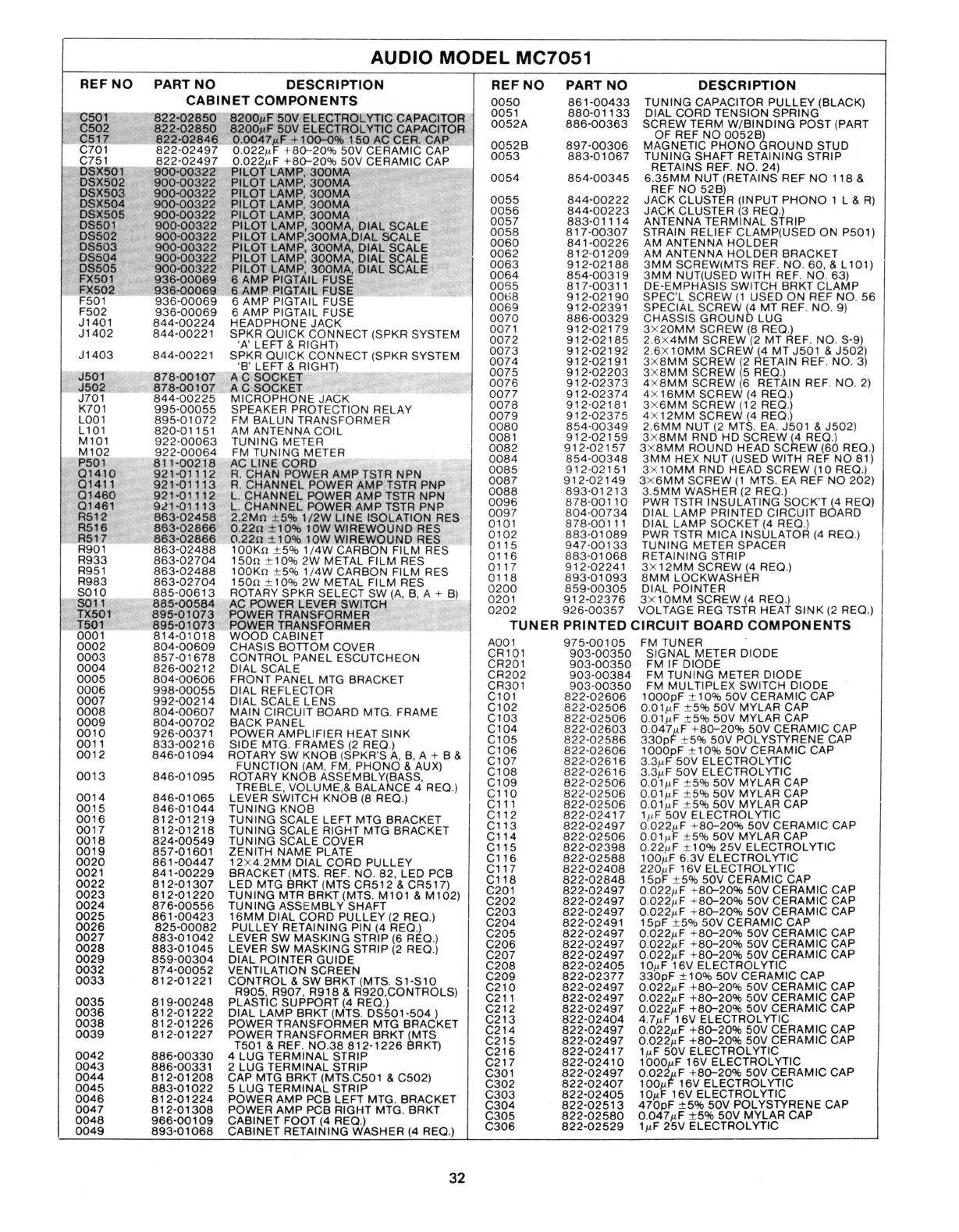

AUDIO MODEL MC7051
REF NO PART NO
DESCRIPTION
CABINET COMPONENTS
C501 822-02850
8200uF 50V ELECTROLYTIC CAPACITOR
C502
822-02850 8200uF 50V ELECTROLYTIC CAPACITOR
C517
822-02846
0.0047uF
+100-0% 150 AC CER. CAP
C701
822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C751
822-02497
0.022uF
+80-20% 50V CERAMIC CAP
DSX501 900-00322
PILOT LAMP. 300MA
DSX502
900-00322
PILOT LAMP. 300MA
DSX503
900-00322
PILOT LAMP, 300MA
DSX504 900-00322
PILOT LAMP. 300MA
DSX505 900-00322
PILOT LAMP. 300MA
DS501
900-00322
PILOT LAMP. 300MA. DIAL SCALE
DS502
900-00322
PILOT LAMP.300MA.DIAL SCALE
DS503
900-00322
PILOT LAMP, 300MA. DIAL SCALE
DS504 900-00322 PILOT LAMP. 300MA. DIAL SCALE
DS505
900-00322
PILOT LAMP. 300MA. DIAL SCALE
FX501
936-00069 6 AMP PIGTAIL FUSE
FX502
936-00069
6 AMP PIGTAIL FUSE
F501
936-00069
6 AMP PIGTAIL FUSE
F502
936-00069 6 AMP PIGTAIL FUSE
J1401 844-00224
HEADPHONE JACK
J1402 844-00221
SPKR QUICK CONNECT (SPKR SYSTEM
'A' LEFT & RIGHT)
J1403 844-00221
SPKR QUICK CONNECT (SPKR SYSTEM
'B'
LEFT & RIGHT)
J501 878-00107 A C SOCKET
J502 878-00107 A C SOCKET
J701 844-00225
MICROPHONE JACK
K701
995-00055 SPEAKER PROTECTION RELAY
L001 895-01072
FM BALUN TRANSFORMER
L101 820-01151 AM ANTENNA COIL
M101 922-00063
TUNING METER
M102 922-00064
FM TUNING METER
P501
811-00218 AC LINE CORD
Q1410
921-01112
R. CHAN POWER AMP TSTR NPN
Q1411
921-01113
R. CHANNEL POWER AMP TSTR PNP
Q1460 921-01112
L. CHANNEL POWER AMP TSTR NPN
Q1461
921-01113
L. CHANNEL POWER AMP TSTR PNP
R512 863-02458
2.2MΩ
±5%
1/2W LINE ISOLATION RES
R516
863-02866
0.22Ω
±10%
10W WIREWOUND RES
R517
863-02866
0.22Ω
±10%
10W WIREWOUND RES
R901
863-02488
100KΩ
±5%
1/4W CARBON FILM RES
R933
863-02704
150Ω
±10%
2W METAL FILM RES
R951
863-02488
100KΩ
±5%
1/4W CARBON FILM RES
R983 863-02704
150Ω
±10%
2W METAL FILM RES
S010 885-00613
ROTARY SPKR SELECT SW (A. B. A + B)
S011 885-00584 AC POWER LEVER SWITCH
TX501
895-01073
POWER TRANSFORMER
T501
895-01073 POWER TRANSFORMER
0001 814-01018 WOOD CABINET
0002
804-00609
CHASIS BOTTOM COVER
0003
857-01678 CONTROL PANEL ESCUTCHEON
0004 826-00212
DIAL SCALE
0005 804-00606
FRONT PANEL MTG BRACKET
0006
998-00055
DIAL REFLECTOR
0007 992-00214
DIAL SCALE LENS
0008
804-00607
MAIN CIRCUIT BOARD MTG. FRAME
0009 804-00702
BACK PANEL
0010 926-00371 POWER AMPLIFIER HEAT SINK
0011
833-00216
SIDE MTG. FRAMES (2 REQ.)
0012 846-01094 ROTARY SW KNOB (SPKR'S A, B, A + B &
FUNCTION (AM. FM. PHONO & AUX)
0013
846-01095
ROTARY KNOB ASSEMBLY(BASS,
TREBLE, VOLUME,& BALANCE 4 REQ.)
0014 846-01065 LEVER SWITCH KNOB (8 REQ.)
0015 846-01044
TUNING KNOB
0016 812-01219 TUNING SCALE LEFT MTG BRACKET
0017
812-01218 TUNING SCALE RIGHT MTG BRACKET
0018 824-00549
TUNING SCALE COVER
0019
857-01601 ZENITH NAME PLATE
0020 861-00447 12X4.2MM DIAL CORD PULLEY
0021 841-00229
BRACKET (MTS. REF. NO. 82. LED PCB
0022
812-01307
LED MTG BRKT (MTS CR51 2 & CR517)
0023 812-01220
TUNING MTR BRKT (MTS. M101 & M102)
0024 876-00556
TUNING ASSEMBLY SHAFT
0025 861-00423 16MM DIAL CORD PULLEY (2 REQ.)
0026 825-00082 PULLEY RETAINING PIN (4 REQ.)
0027 883-01042
LEVER SW MASKING STRIP (6 REQ.)
0028 883-01045 LEVER SW MASKING STRIP (2 REQ.)
0029
859-00304
DIAL POINTER GUIDE
0032 874-00052 VENTILATION SCREEN
0033 812-01221
CONTROL & SW BRKT (MTS. S1-S10
R905,
R907. R918 & R920.CONTROLS)
0035 819-00248
PLASTIC SUPPORT (4 REQ.)
0036 DIAL LAMP BRKT (MTS. DS501-504 )
0038 812-01226 POWER TRANSFORMER MTG BRACKET
0039 812-01227
POWER TRANSFORMER BRKT [MTS
T501 & REF. N0.38 812-1226 BRKT)
0042 886-00330
4 LUG TERMINAL STRIP
0043 886-00331 2 LUG TERMINAL STRIP
0044 812-01208 CAP MTG BRKT (MTS.C501 & C502)
0045 5 LUG TERMINAL STRIP
0046 812-01224 POWER AMP PCB LEFT MTG. BRACKET
0047 812-01308 POWER AMP PCB RIGHT MTG. BRKT
0048 966-00109 CABINET FOOT (4 REQ.)
0049 893-01068 CABINET RETAINING WASHER (4 REQ.)
REF NO PART NO DESCRIPTION
0050 861-00433
TUNING CAPACITOR PULLEY (BLACK)
0051 880-01133 DIAL CORD TENSION SPRING
0052A
886-00363 SCREW TERM W/BINDING POST (PART
OF REF NO 0052B)
0052B 897-00306 MAGNETIC PHONO GROUND STUD
0053 883-01067
TUNING SHAFT RETAINING STRIP
RETAINS REF. NO. 24)
0054 854-00345
6.35MM
NUT (RETAINS REF NO 118 &
REF NO 52B)
0055 844-00222 JACK CLUSTER (INPUT PHONO 1 L & R)
0056 844-00223 JACK CLUSTER (3 REQ.)
0057 883-01114 ANTENNA TERMINAL STRIP
0058 817-00307 STRAIN RELIEF CLAMP(USED ON P501)
0060 841-00226 AM ANTENNA HOLDER
0062 812-01209 AM ANTENNA HOLDER BRACKET
0063 912-02188 3MM SCREW(MTS REF. NO. 60, & L101)
0064 854-00319 3MM NUT(USED WITH REF. NO. 63)
0055 817-00311 DE-EMPHASIS SWITCH BRKT CLAMP
0068 912-02190 SPEC'L SCREW (1 USED ON REF NO. 56
0069 912-02391 SPECIAL SCREW (4 MT REF. NO. 9)
0070 886-00329 CHASSIS GROUND LUG
0071 912-02179 3X20MM SCREW (8 REQ.)
0072 912-02185
2.6X4MM
SCREW (2 MT REF. NO. S-9)
0073 912-02192
2.6X10MM
SCREW (4 MT J501 & J502)
0074 912-02191 3X8MM SCREW (2 RETAIN REF. NO. 3)
0075 912-02203 3X8MM SCREW (5 REQ.)
0076 912-02373 4X8MM SCREW (6 RETAIN REF. NO. 2)
0077 912-02374 4X16MM SCREW (4 REQ.)
0078 912-02181 3X6MM SCREW (12 REQ.)
0079 912-02375 4X1 2MM SCREW (4 REQ.)
0080 854-00349
2.6MM
NUT (2 MTS. EA. J501 & J502)
0081 912-02159 3X8MM RND HD SCREW (4 REQ.)
0082 912-02157 3X8MM ROUND HEAD SCREW (60 REQ.)
0084 854-00348 3MM HEX NUT (USED WITH REF NO 81)
0085 912-02151 3X10MM RND HEAD SCREW (10 REQ.)
0087 912-02149 3X6MM SCREW (1 MTS. EA REF NO 202)
0088 893-01213
3.5MM
WASHER (2 REQ.)
0096 878-00110 PWR TSTR INSULATING SOCKT (4 REQ)
0097 804-00734 DIAL LAMP PRINTED CIRCUIT BOARD
0101 878-00111 DIAL LAMP SOCKET (4 REQ.)
0102 883-01089 PWR TSTR MICA INSULATOR (4 REQ.)
0115 947-00133 TUNING METER SPACER
0116 883-01068
RETAINING STRIP
0117 912-02241 3X12MM SCREW (4 REQ.)
0118 893-01093 8MM LOCKWASHER
0200 859-00305 DIAL POINTER
0201 912-02376 3X10MM SCREW (4 REQ.)
0202 926-00357 VOLTAGE REG TSTR HEAT SINK (2 REQ.)
TUNER PRINTED CIRCUIT BOARD COMPONENTS
A001 975-00105
FM TUNER
CR101 903-00350 SIGNAL METER DIODE
CR201 903-00350 FM IF DIODE
CR202 903-00384 FM TUNING METER DIODE
CR301 903-00350 FM MULTIPLEX SWITCH DIODE
C101 822-02606
1000pF ±10% 50V CERAMIC CAP
C102 822-02506
0.01uF
±5% 50V MYLAR CAP
C103 822-02506
0.01uF
±5% 50V MYLAR CAP
C104
822-02603
0.047uF
+80-20% 50V CERAMIC CAP
C105 822-02586 330pF ±5% 50V POLYSTYRENE CAP
C106 822-02606 1000pF ±10% 50V CERAMIC CAP
C107 822-02616
3.3uF
50V ELECTROLYTIC
C108 822-02616
3.3uF
50V ELECTROLYTIC
C109 822-02506 0.01 uF ±5% 50V MYLAR CAP
C110
822-02506
0.01uF
±5% 50V MYLAR CAP
C111 822-02506
0.01uF
±5% 50V MYLAR CAP
C112 822-02417 1uF 50V ELECTROLYTIC
C113 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C114 822-02506
0.01uF
±5% 50V MYLAR CAP
C115 822-02398
0.22uF
±10% 25V ELECTROLYTIC
C116 822-02588 100uF 6.3V ELECTROLYTIC
C117 822-02408 220uF 16V ELECTROLYTIC
C118 822-02848
1
5pF ±5% 50V CERAMIC CAP
C201 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C202 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C203 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C204 822-02491 15pF ±5% 50V CERAMIC CAP
C205 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C206 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C207 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C208 822-02405 10uF 16V ELECTROLYTIC
C209 822-02377 330pF ±10% 50V CERAMIC CAP
C210 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C211 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C212 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C213 822-02404
4.7uF
16V ELECTROLYTIC
C214 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C215 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C216 822-02417 1uF 50V ELECTROLYTIC
C217 822-02410 1000uF 16V ELECTROLYTIC
C301 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C302 822-02407 100uF 16V ELECTROLYTIC
C303 822-02405 10uF 16V ELECTROLYTIC
C304 822-02513 470pF ±5% 50V POLYSTYRENE CAP
C305 822-02580
0.047uF
±5% 50V MYLAR CAP
C306 822-02529 10uF 25V ELECTROLYTIC
32
