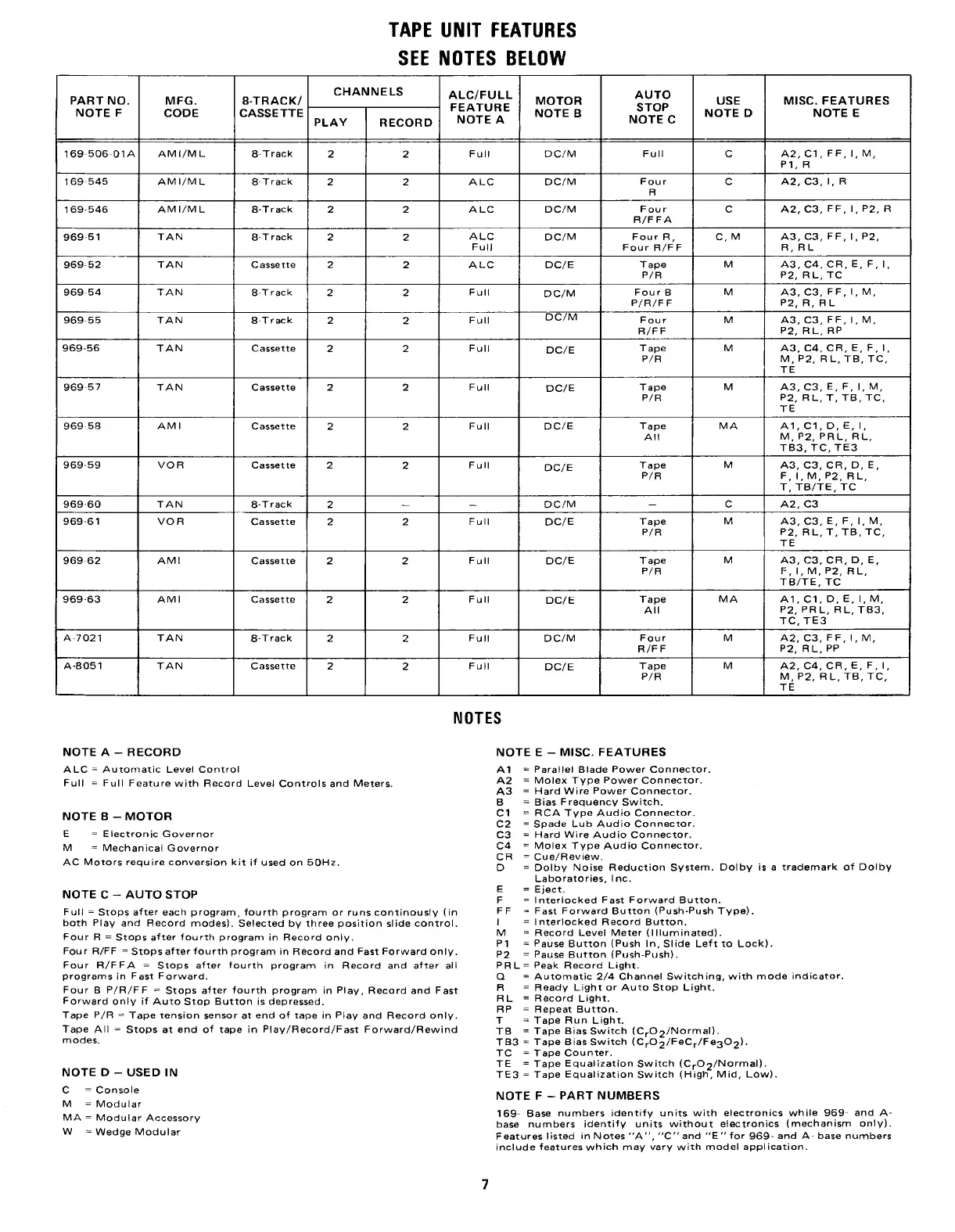

TAPE
UNIT FEATURES
SEE NOTES BELOW
PART NO.
NOTE F
MFG.
CODE
8-TRACK/
CASSETTE
CHANNELS
ALC/FULL
FEATURE
NOTE A
MOTOR
NOTE B
AUTO
STOP
NOTE C
USE
NOTE D
MISC.
FEATURES
NOTE E
PART NO.
NOTE F
MFG.
CODE
8-TRACK/
CASSETTE
PLAY
RECORD
ALC/FULL
FEATURE
NOTE A
MOTOR
NOTE B
AUTO
STOP
NOTE C
USE
NOTE D
MISC.
FEATURES
NOTE E
169-506 01A
AMI/ML
8-Track
2
2
Full
DC/M Full
C
A2, C1 ,
FF, I, M,
P1,
R
169-545
AMI/ML
8-Track
2 2 ALC
DC/M
Four
R
c
A2,
C3, I, R
169-546
AMI/ML
8-Track
2 2 ALC
DC/M
Four
R/FFA
c
A2,
C3, FF, I, P2, R
969 51
TAN
8-Track
2
2
ALC
Full
DC/M
Four R,
Four R/FF
C, M
A3,
C3, FF, I, P2,
R, RL
969 52
TAN
Cassette
2
2 ALC
DC/E
Tape
P/R
M
A3,
C4, CR, E, F, I,
P2,
RL, TC
969-54
TAN
8-Track
2 2
Full
DC/M
Four B
P/R/FF
M
A3,
C3, FF, I, M,
P2,
R, R L
969-55
TAN 8 Track
2
2
Full
DC/M
Four
R/FF
M
A3,
C3, FF, I, M,
P2,
RL, RP
969-56 TAN
Cassette
2 2 Full
DC/E
Tape
P/R
M
A3,
C4, CR, E, F, I,
M, P2, R L, TB, TC,
TE
969-57
TAN
Cassette
2 2
Full
DC/E
Tape
P/R
M
A3,
C3, E, F, I, M,
P2,
RL, T, TB, TC,
TE
969 58
AM
I
Cassette
2
2
Full
DC/E Tape
All
MA
A1,
C1, D, E, I,
M, P2, PRL, RL,
TB3,
TC, TE3
969-59
VOR
Cassette
2
2
Full
DC/E
Tape
P/R
M
A3,
C3, CR, D, E,
F, I, M, P2, RL,
T, TB/TE, TC
969 60 TAN
8-Track
2
- -
DC/M
-
C
A2,
C3
969-61 VOR Cassette
2 2
Full DC/E
Tape
P/R
M
A3,
C3, E, F, I, M,
P2,
RL, T, TB, TC,
TE
969-62
AMI
Cassette
2 2
Full
DC/E
Tape
P/R
M
A3,
C3, CR, D, E,
F, I, M, P2, RL,
TB/TE,
TC
969-63
AMI
Cassette
2 2 Full
DC/E
Tape
All
MA
A1
,
C1, D, E, I, M,
P2,
PRL, RL, TB3,
TC,
TE3
A-7021 TAN
8-Track
2
2
Full
DC/M
Four
R/FF
M
A2,
C3, FF, I, M,
P2,
RL, PP
A-8051
TAN
Cassette
2 2 Full
DC/E
Tape
P/R
M
A2,
C4, CR, E, F, I,
M, P2, RL, TB, TC,
TE
NOTES
NOTE A - RECORD
ALC = Automatic Level Control
Full = Full Feature with Record Level Controls and Meters.
NOTE B - MOTOR
E = Electronic Governor
M = Mechanical Governor
AC Motors require conversion kit if used on 50Hz.
NOTE C - AUTO STOP
Full = Stops after each program, fourth program or runs continously (in
both Play and Record modes). Selected by three position slide control.
Four R = Stops after fourth program in Record only.
Four R/FF = Stops after fourth program in Record and Fast Forward only.
Four
R/FFA
= Stops after fourth program in Record and after all
programs in Fast Forward.
Four B
P/R/FF
= Stops after fourth program in Play, Record and Fast
Forward only if Auto Stop Button is depressed.
Tape P/R = Tape tension sensor at end of tape in Play and Record only.
Tape All = Stops at end of tape in Play/Record/Fast Forward/Rewind
modes.
NOTE D - USED IN
C = Console
M = Modular
MA = Modular Accessory
W = Wedge Modular
NOTE E - MISC. FEATURES
A1
=
Parallel Blade Power Connector.
A2
=
Molex Type Power Connector.
A3
= Hard Wire Power Connector.
B
=
Bias Frequency Switch.
C1
=
RCA Type Audio Connector.
C2
=
Spade Lub Audio Connector.
C3
=
Hard Wire Audio Connector.
C4
=
Molex Type Audio Connector.
CR
=
Cue/Review.
D
=
Dolby Noise Reduction System. Dolby is a trademark of Dolby
Laboratories, I nc.
E
=
Eject.
F
=
Interlocked Fast Forward Button.
F
F
Fast Forward Button (Push-Push Type).
I
=
Interlocked Record Button.
M
=
Record Level Meter (Illuminated).
P1
=
Pause Button (Push In, Slide Left to Lock).
P2
=
Pause Button (Push-Push).
PRL
=
Peak Record Light.
Q
Automatic 2/4 Channel Switching, with mode indicator.
R
=
Ready Light or Auto Stop Light.
RL
=
Record Light.
RP
=
Repeat Button.
T
=
Tape Run Light.
TB
= Tape Bias Switch (C
r
O
2
/Normal).
TB3
=
Tape Bias Switch (C
r
O
2
/FeC
r
/Fe
3
O
2
)
•
TC
=
Tape Counter.
TE
=
Tape Equalization Switch (C
r
02/Normal).
TE3
=
Tape Equalization Switch (High, Mid, Low).
NOTE F - PART NUMBERS
169-
Base numbers identify units with electronics while 969- and A-
base numbers identify units without electronics (mechanism only).
Features listed in Notes "A", "C" and "E" for 969- and A- base numbers
include features which may vary with model application.
7
